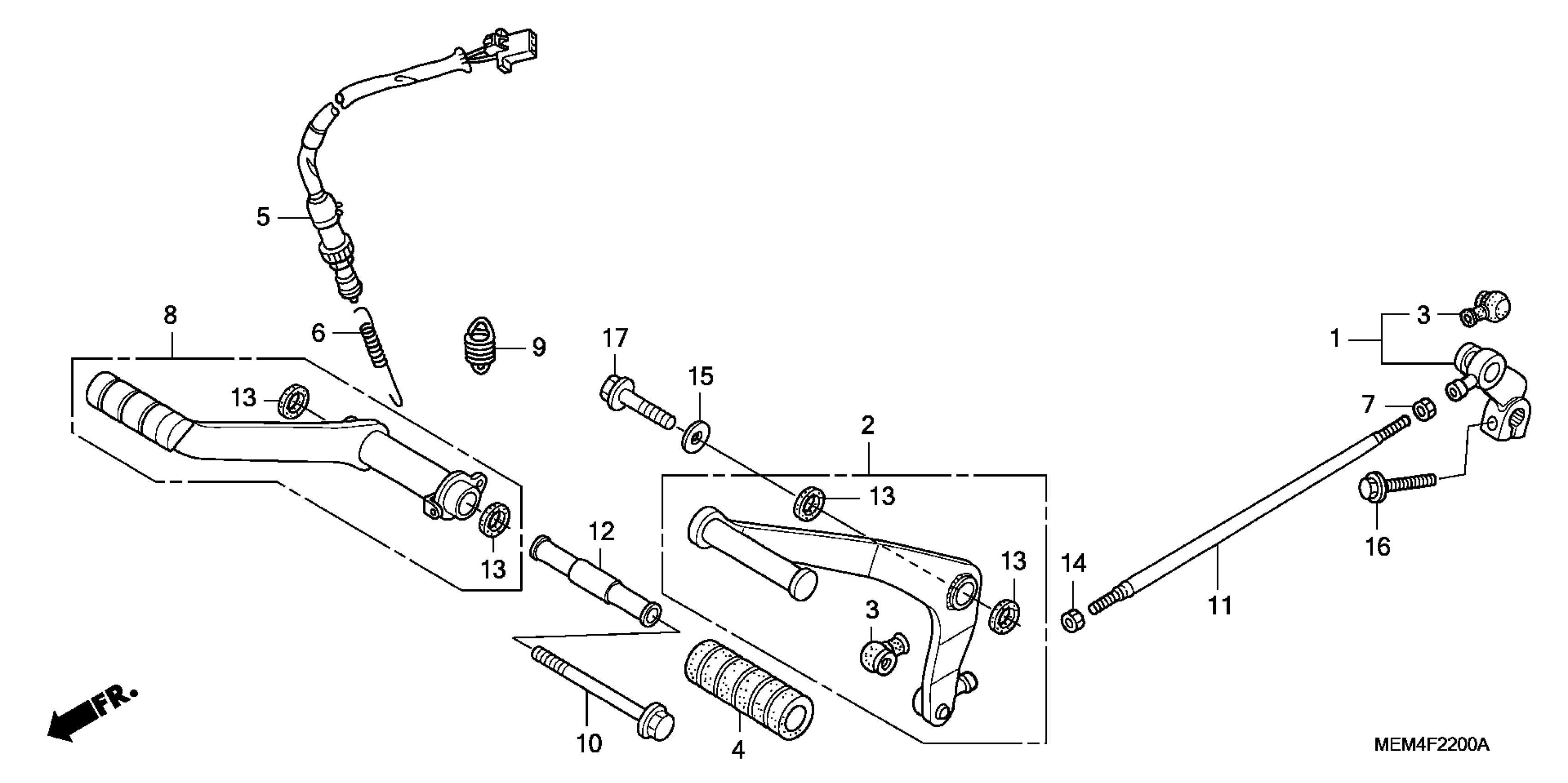

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 PEDAL Diagram

ARM, GEARSHIFT

24702-MEM-680

Unavailable

PEDAL, GEARSHIFT

24710-MEM-680

$77.56

COVER, DUST

24724-MBW-D21

$6.98

RUBBER, GEARSHIFT PEDAL

24781-MCH-000

$5.76

SWITCH ASSY., RR. STOP

35350-MEA-671

$22.69

SPRING, STOP SWITCH

35357-KY2-700

$5.90

NUT, HEX. (6MM) (LEFT HAND THREAD)

45423-KA4-700

$1.55

PEDAL, RR. BRAKE

46500-MEM-670

$347.85

SPRING, BRAKE PEDAL

46514-KZ4-J00

$5.05

BOLT, FLANGE (8X135)

90006-MEM-670

Unavailable

BOLT, TIE ROD

90065-HN2-000

Unavailable

SHAFT, BRAKE PIVOT

90115-MEM-670

$12.11

DUST SEAL (15X20X3)

91251-MT4-003

$3.80

NUT, HEX. (6MM)

94002-06020-0S

$1.49

WASHER, PLAIN (8MM)

94103-08000

$1.49

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (8X20)

95701-08020-00

$1.78
