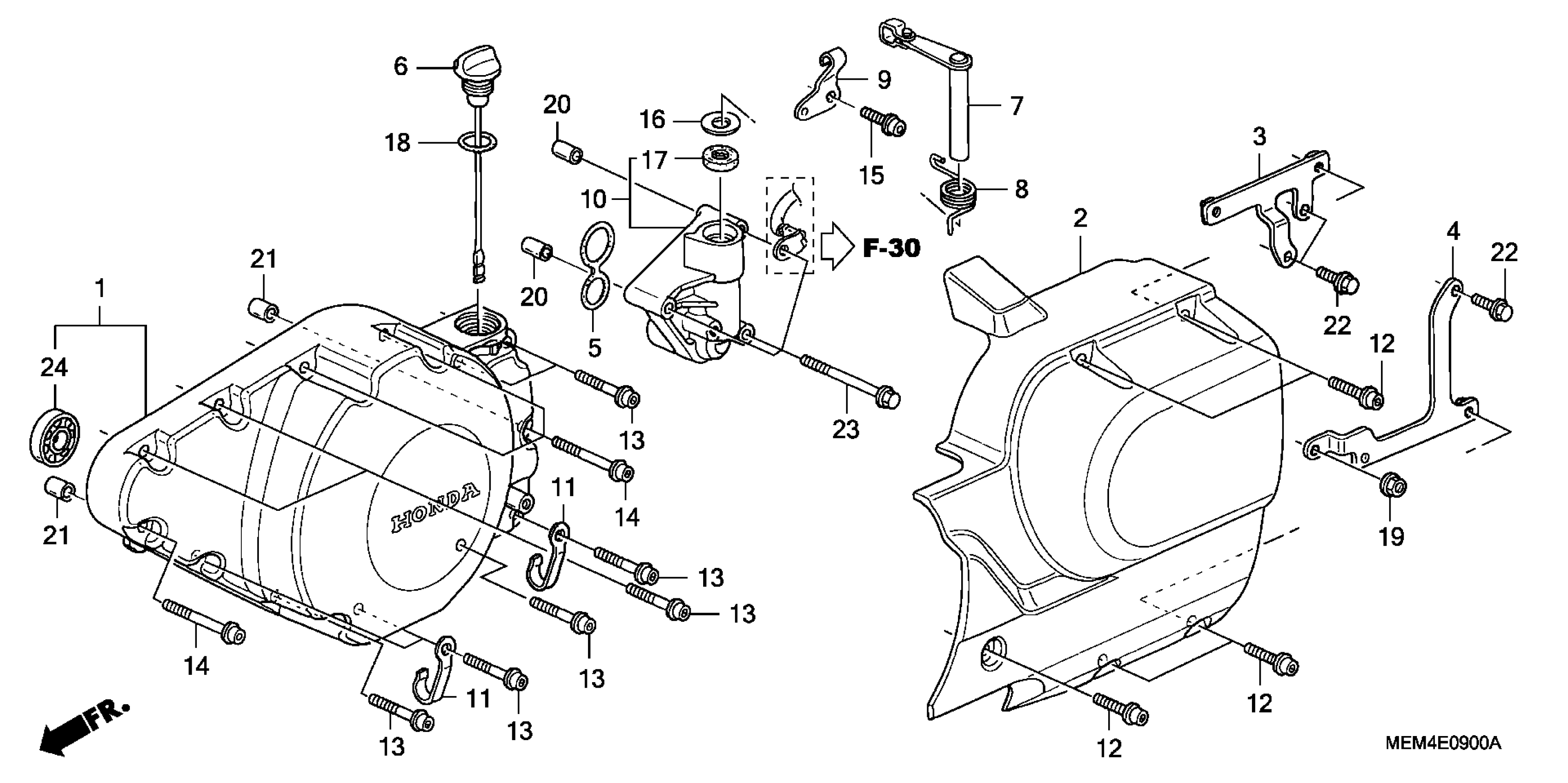

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE This part replaces 11360-MEA-670.

11360-MFR-670

$382.80

2

COVER, L. RR.

11370-MEM-670

Unavailable

3

STAY A, L. RR. COVER

11380-MEA-671

$5.48

4

STAY B, L. RR. COVER

11390-MCH-000

Unavailable

5

SEAL, RUBBER

15152-HN2-000

$4.51

6

DIPSTICK, OIL

15650-MEA-670

$14.33

7

LEVER, CLUTCH

22710-MEA-670

$51.54

8

SPRING, CLUTCH LEVER

22815-MEA-670

$3.68

9

RECEIVER, CLUTCH CABLE

22821-MEA-670

$11.04

10

HOLDER, CLUTCH LIFTER

22860-MEA-670

$71.16

11

CLAMP, SWITCH WIRE

35211-443-760

$3.77

12

BOLT, SOCKET (6X22)

90031-MCH-000

$1.96

13

BOLT, FLANGE SOCKET (6X32)

90032-MCH-000

$2.06

14

BOLT, FLANGE SOCKET (6X45)

90033-MCH-000

$2.35

15

BOLT, FLANGE SOCKET (6X18)

90034-MCH-000

$1.80

16

WASHER, PLAIN (14MM)

90559-MR8-000

$2.03

17

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-013.

91202-444-023

$3.52

17

OIL SEAL (14X24X6) (ARAI) This part replaces 91202-444-015.

91202-444-023

$3.52

17

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.52

18

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.55

18

O-RING (21.5X3.2)

91307-425-003

$2.55

19

NUT, FLANGE (6MM)

94050-06000

$0.59

20

PIN, DOWEL (8X10)

94301-08100

$2.04

21

PIN, DOWEL (8X14)

94301-08140

$2.04

22

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

23

BOLT, FLANGE (6X55)

95701-06055-00

$1.97

24

BEARING, RADIAL BALL (6000)

96100-60000-00

$7.56
