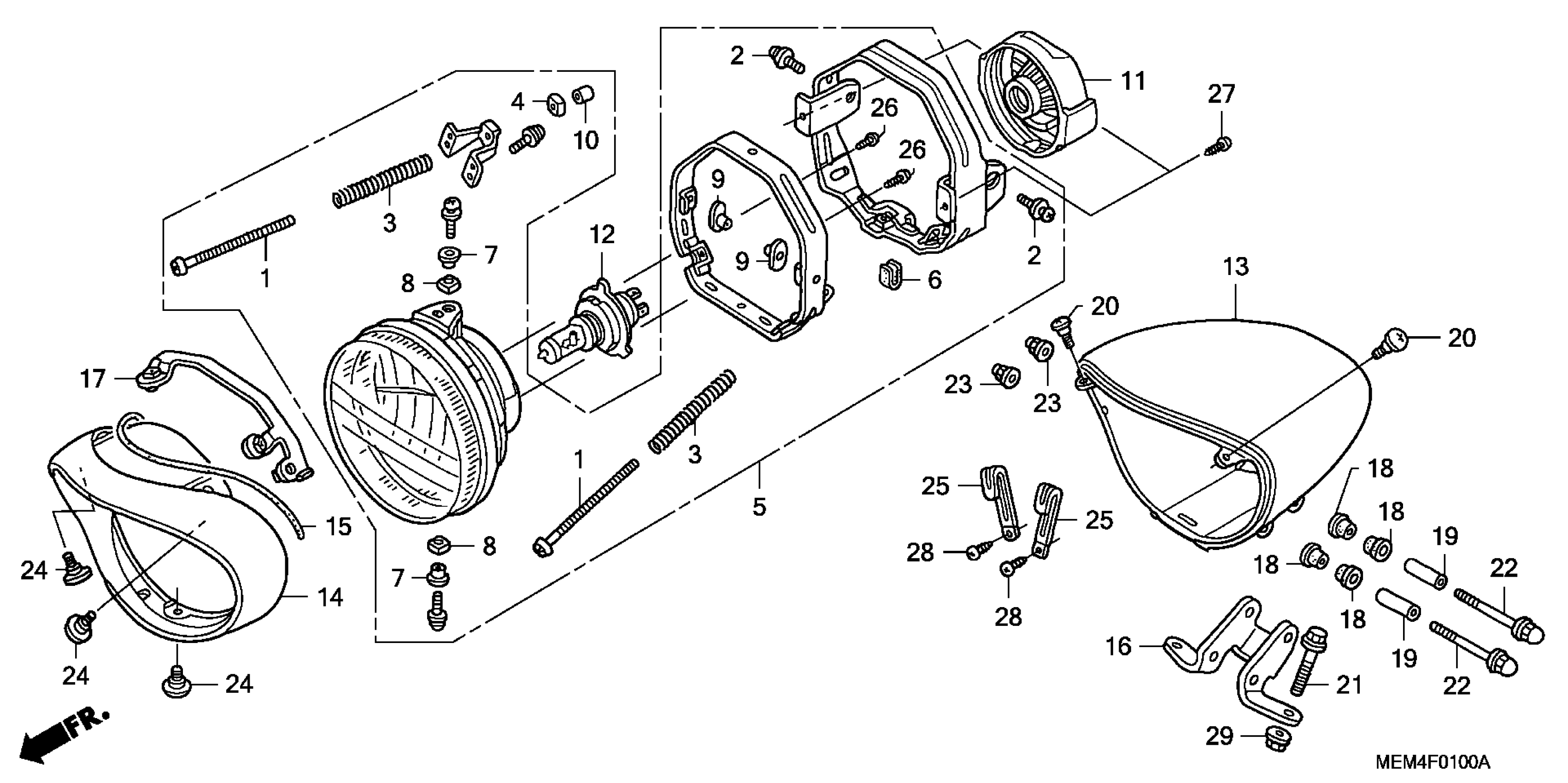

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 HEADLIGHT Diagram

#

Description
Price

1

SCREW, BEAM ADJUSTING

33103-MM2-003

$2.49

2

SCREW-WASHER

33104-MAH-671

$3.73

3

SPRING, BEAM ADJUSTING

33107-MK7-671

$3.81

4

NUT, BEAM ADJUSTING

33118-438-841

$2.03

5

HEADLIGHT UNIT

33120-MEA-671

$305.62

6

TAPE, PROTECTOR

33126-MEA-650

$2.83

7

SPACER

33127-MAA-A31

$2.14

8

NUT, UNIT HOLDER

33128-GE8-671

$3.72

9

NUT, SPECIAL

33128-MAH-671

$3.45

10

COVER, SCREW

33136-426-830

$1.71

11

COVER, RUBBER

33180-MR7-003

$12.79

12

BULB, HEADLIGHT (12V 60/55W) (STANLEY)

34901-MC7-602

$33.38

13

CASE, HEADLIGHT

61301-MCH-670

$70.69

14

RIM, HEADLIGHT

61302-MCH-670

$43.92

15

RUBBER, SPONGE

61303-MEA-670

$2.90

16

STAY, HEADLIGHT

61311-MEA-670

$47.22

17

STAY A, HEADLIGHT

61312-MEA-670

$37.46

18

RUBBER, HEADLIGHT MOUNTING

61315-MK7-000

$2.80

19

COLLAR, HEADLIGHT STAY

61316-MK7-000

$2.80

20

SCREW, SPECIAL (5MM)

90104-KZ3-B00

$3.64

21

BOLT, FLANGE (8X28)

90105-MR1-000

$3.97

22

BOLT, CAP (6MM)

90132-MEA-670

$2.23

23

NUT, CAP (6MM)

90201-428-900

$2.03

24

SCREW, SPECIAL (5X9.5)

90380-GE2-760

$2.35

25

CLIP

91411-679-000

$14.75

26

SCREW, TAPPING (4X12)

93901-34320

$0.81

27

SCREW, TAPPING (4X12)

93903-24380

Unavailable

28

SCREW, TAPPING (4X10)

93903-44210

$0.91

29

NUT, FLANGE (8MM)

94050-08000

$0.86
