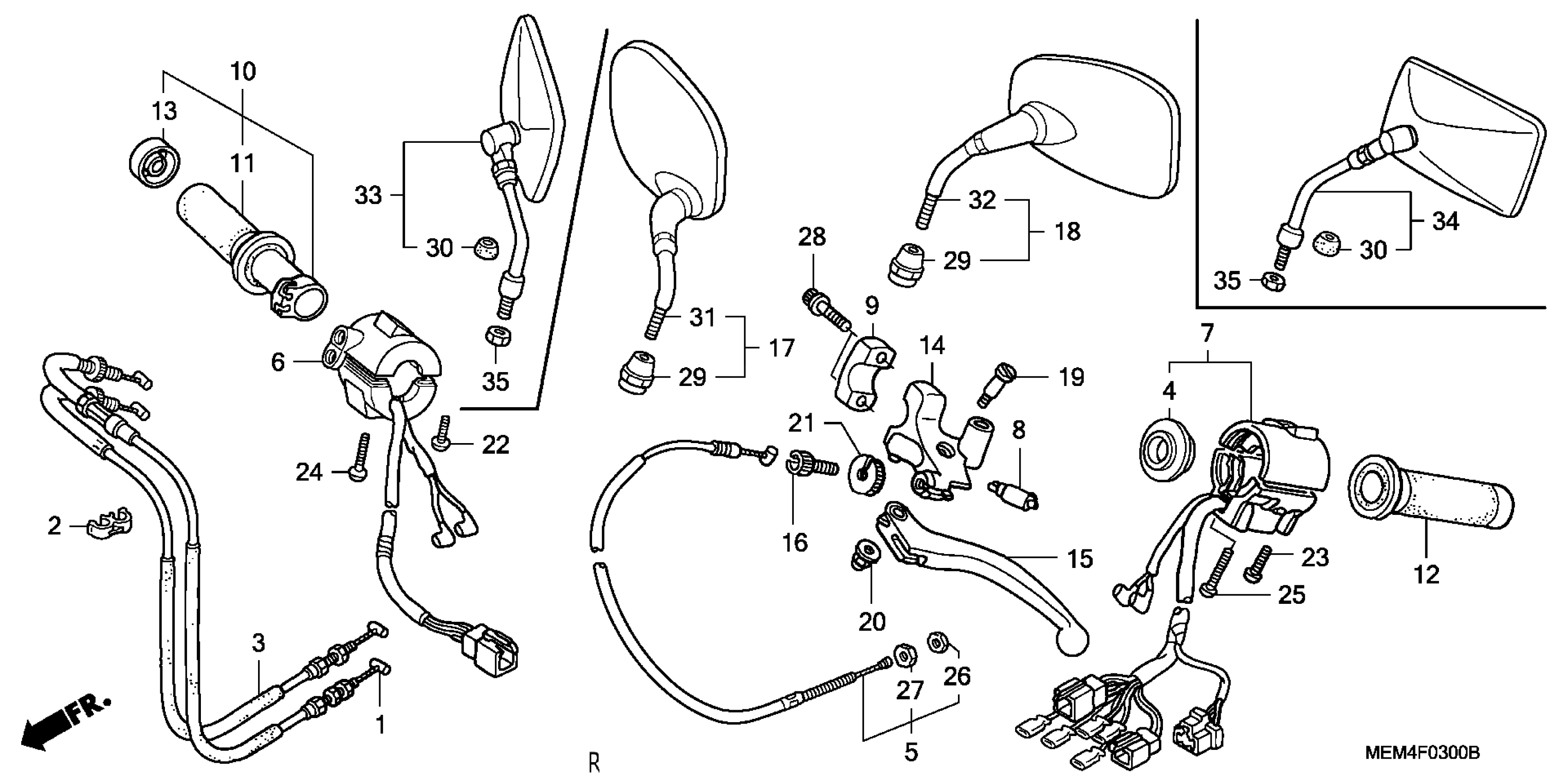

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MEM-670

$16.77

2

CLIP, THROTTLE WIRE

17915-SA7-981

$2.87

3

CABLE B, THROTTLE

17920-MEM-670

$16.03

4

ADAPTER

17962-MR1-000

$17.70

5

CABLE, CLUTCH

22870-MEM-670

$10.75

6

SWITCH, STARTER STOP This part replaces 35130-MEM-672.

35130-MEM-673

$111.37

7

SWITCH ASSY., TURN SIGNAL

35200-MEM-670

Unavailable

8

SWITCH, FR. LEVER

35330-413-003

$20.11

9

HOLDER, MASTER CYLINDER (NISSIN)

45517-MEG-006

$9.60

10

GRIP, R.

53145-MM8-000

$39.08

11

GRIP, R.

53145-MM8-000

$39.08

11

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$39.08

12

GRIP, L. HANDLE

53166-KCR-000

$32.91

13

CAP, GRIP END

53167-MM8-000

$8.63

14

BRACKET, HANDLE LEVER

53172-MEG-000

$29.15

15

LEVER, L. HANDLE

53178-MAH-000

$17.39

16

BOLT, WIRE ADJUSTING

53192-268-000

$6.23

19

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.24

20

NUT, CAP (6MM)

90201-415-000

Unavailable

21

NUT, FIXING

90321-MA6-750

$9.59

22

SCREW, PAN (5X20)

93500-05020-0A

$0.82

23

SCREW, PAN (5X22)

93500-05022-0A

$0.62

24

SCREW, PAN (5X25)

93500-05025-0A

$1.28

25

SCREW, PAN (5X32)

93500-05032-0A

Unavailable

26

NUT, HEX. (8MM)

94002-08000-0S

$1.31

27

NUT, HEX. (8MM)

94031-08000

$1.04

28

BOLT, SOCKET (6X22)

90101-MCL-000

$1.34

30

COVER, LOCK NUT

88113-KN8-000

$5.72

33

MIRROR, R. BACK

88210-MZ8-A20

Unavailable

34

MIRROR, L. BACK

88220-MZ8-A20

$59.78

35

NUT, HEX. (10MM)

94031-10020

$0.90
