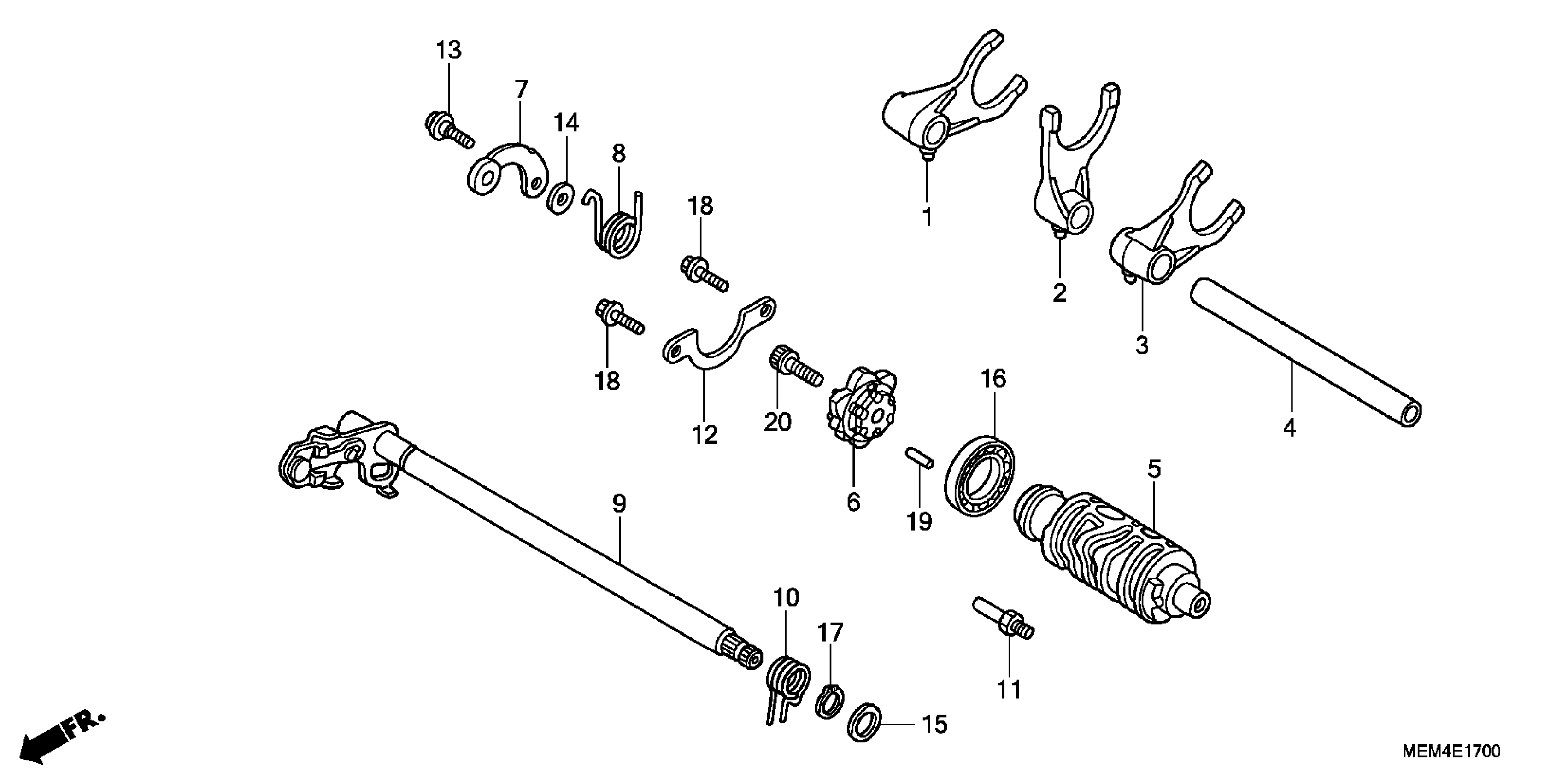

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-MEA-670

$61.75

2

FORK, CENTER GEARSHIFT

24212-MCH-000

$60.96

3

FORK, L. GEARSHIFT

24213-MEA-670

$61.75

4

SHAFT, GEARSHIFT FORK

24261-MT3-000

$23.51

5

DRUM, GEARSHIFT

24311-MCH-000

$104.29

6

CENTER, SHIFT DRUM

24315-MV9-932

$40.09

7

STOPPER, GEARSHIFT DRUM

24430-MCH-000

$14.46

8

SPRING, GEARSHIFT DRUM STOPPER

24435-MCH-000

$2.81

9

SPINDLE, GEARSHIFT

24610-MCH-000

$73.46

10

SPRING, SHIFT RETURN

24651-MCH-000

$6.54

11

PIN, SHIFT RETURN SPRING

24652-028-000

$8.99

12

PLATE, SHIFT DRUM BEARING SETTING

24655-MCH-000

$4.82

13

PIVOT, SHIFT DRUM STOPPER ARM

90022-MY5-600

$10.72

14

WASHER, DRUM STOPPER

90417-360-000

Unavailable

15

WASHER (14MM)

90451-155-000

$3.62

16

BEARING, RADIAL BALL (6805)

91004-GEM-003

$10.04

17

CIRCLIP, OUTER (14MM)

94510-14000

Unavailable

18

BOLT, FLANGE (6X16)

95701-06016-08

$1.34

19

ROLLER (4X8)

96220-40080

Unavailable

20

BOLT, SOCKET (8X20)

96600-08020-10

$1.97
