Description

Price

1

REFLECTOR, FR. REFLEX

33740-MEA-671

$30.18

2

FORK ASSY., R. FR.

51400-MEM-671

$466.07

3

SPRING, FR. FORK

51401-MEM-671

$45.58

4

COLLAR, SPRING (SHOWA)

51402-MN0-003

$21.08

5

PLATE, SPRING JOINT

51404-MB4-003

$4.94

6

PIPE, FR. FORK

51410-MEM-671

$119.83

7

RING, BACK-UP

51412-MB4-003

$9.65

8

BUSH, GUIDE (SHOWA)

51414-KCR-003

$14.02

9

BUSH, SLIDER (SHOWA)

51415-KCR-003

$12.27

10

SPRING, REBOUND

51416-MEA-671

$11.56

11

CASE, R. (LOWER)

51420-MEM-671

Unavailable

12

PIECE, OIL LOCK

51432-MV9-003

$24.82

13

RING, PISTON (SHOWA)

51437-MN5-003

$8.53

14

PIPE, SEAT

51440-MEM-670

Unavailable

15

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

16

BOLT, FR. FORK

51454-MM9-671

$38.35

17

SEAL SET, FR. FORK

51490-MN8-305

$35.20

18

FORK ASSY., L. FR.

51500-MEM-671

$456.30

19

CASE, L. (LOWER)

51520-MEM-671

Unavailable

20

BOLT, SOCKET (8X35)

90109-MCR-D00

$2.84

21

BOLT, SOCKET (8MM)

90116-KV3-701

$3.89

22

WASHER, SPECIAL

90544-MEM-671

$1.49

23

DUST SEAL

91254-MM8-003

$17.88

24

O-RING (33.2X2.4)

91356-KF0-003

$3.76

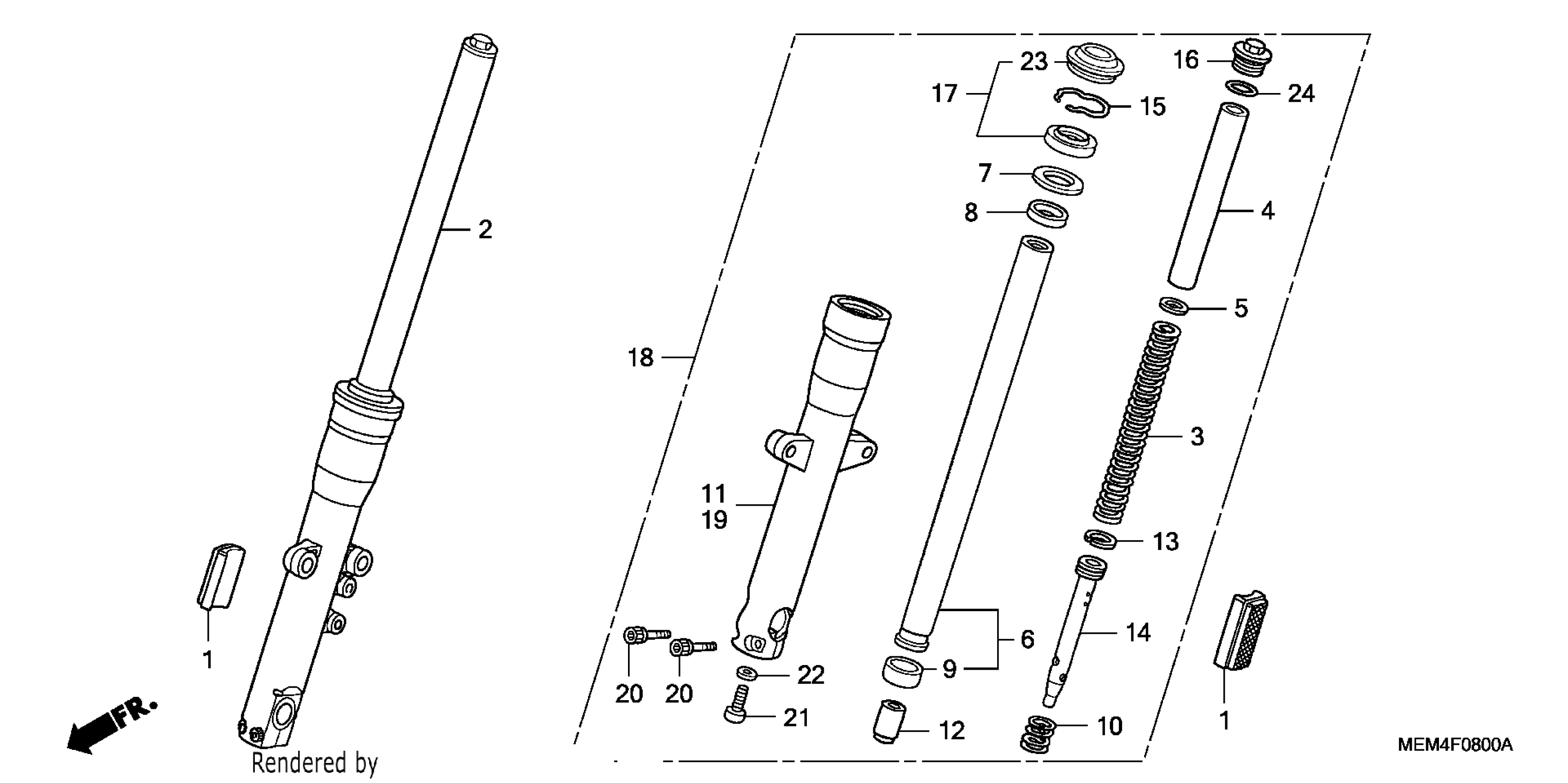

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 FRONT FORK Diagram

REFLECTOR, FR. REFLEX

FORK ASSY., R. FR.

SPRING, FR. FORK

COLLAR, SPRING (SHOWA)

PLATE, SPRING JOINT

PIPE, FR. FORK

RING, BACK-UP

BUSH, GUIDE (SHOWA)

BUSH, SLIDER (SHOWA)

SPRING, REBOUND

CASE, R. (LOWER)

PIECE, OIL LOCK

RING, PISTON (SHOWA)

PIPE, SEAT

RING, OIL SEAL STOPPER

BOLT, FR. FORK

SEAL SET, FR. FORK

FORK ASSY., L. FR.

CASE, L. (LOWER)

BOLT, SOCKET (8X35)

BOLT, SOCKET (8MM)

WASHER, SPECIAL

DUST SEAL

O-RING (33.2X2.4)
