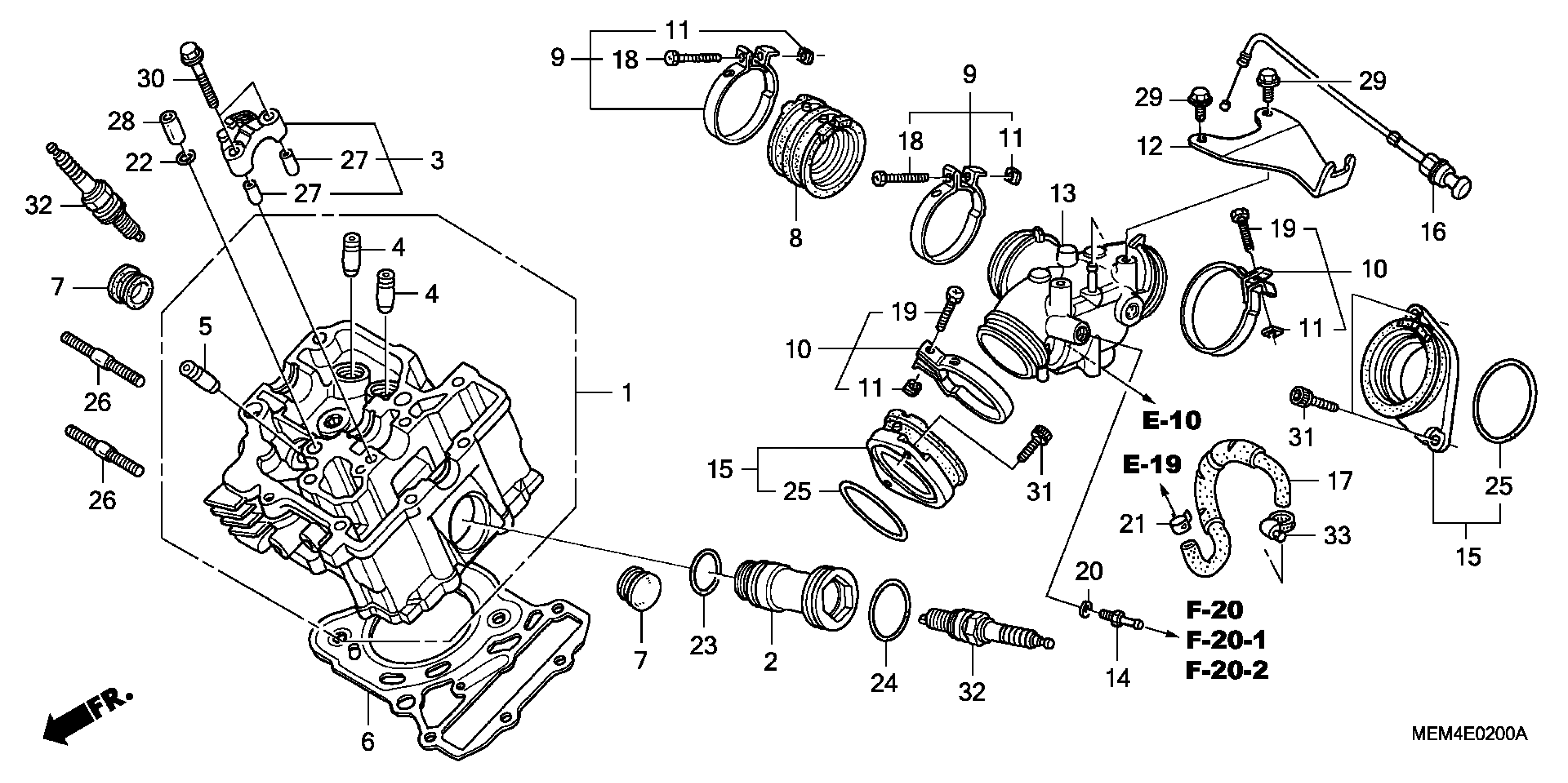

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 FRONT CYLINDER HEAD + INTAKE MANIFOLD Diagram

HEAD COMP,FR CYLI This part replaces 12210-MEA-671.

12210-MEA-305

Unavailable

SLEEVE, PLUG

12225-MG8-000

$38.87

HOLDER, CAMSHAFT

12230-MEA-670

$27.02

GUIDE, IN. VALVE (OVER SIZE)

12231-MG8-305

$20.08

GUIDE, IN VALVE This part replaces 12233-MG8-305.

12233-MG8-405

Unavailable

GUIDE, IN VALVE

12233-MG8-405

Unavailable

GASKET, CYLINDER HEAD

12251-MEA-671

$32.69

PLUG, CAMSHAFT

12312-ME9-750

$10.12

INSULATOR, CARBURETOR

16211-MEA-670

$22.56

BAND, INSULATOR

16217-MEA-670

Unavailable

BAND, INSULATOR

16218-MEA-670

$4.62

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

STAY, CHOKE CABLE

16971-MEA-670

$5.85

MANIFOLD, IN.

17110-MEM-670

$257.92

JOINT, BOOST

17113-KEA-000

$7.16

BASE, MANIFOLD

17210-MEM-670

$24.36

CABLE, CHOKE

17950-MEA-670

$17.49

HOSE B, IN. MANIFOLD

19560-MEA-670

$27.31

BOLT, RECESSED (5X22)

90005-MAL-A00

$1.49

BOLT, RECESSED (5X28)

90023-MM5-000

$2.92

WASHER, SEALING (5MM)

90452-323-000

$1.59

CLAMP, TUBE (D10.3)

90601-MEA-670

$4.15

O-RING (11.8X2.4)

91302-ZE9-003

$2.57

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

O-RING (39.5X2.6)

91352-MG2-792

$8.66

BOLT, STUD (8X28)

92900-08028-0E

$2.34

PIN, DOWEL (8X14)

94301-08140

$2.25

PIN, DOWEL (12X20)

94301-12200

$2.29

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

BOLT, FLANGE (6X38)

95701-06038-08

$1.80

BOLT, SOCKET (6X16)

96600-06016-00

$1.66

SPARK PLUG (XU20EPR-U) (DENSO)

98069-5695Q

$2.92

SPARK PLUG (DCPR6E) (NGK)

98069-5697Q

$3.61

SPARK PLUG (XU22EPR-U) (DENSO) | (Optional).

98069-5795Q

$8.27

SPARK PLUG (DCPR7E) (NGK) | (Optional).

98069-5797Q

$4.10

CLAMP, WATER HOSE

19507-MAL-600

$5.69
