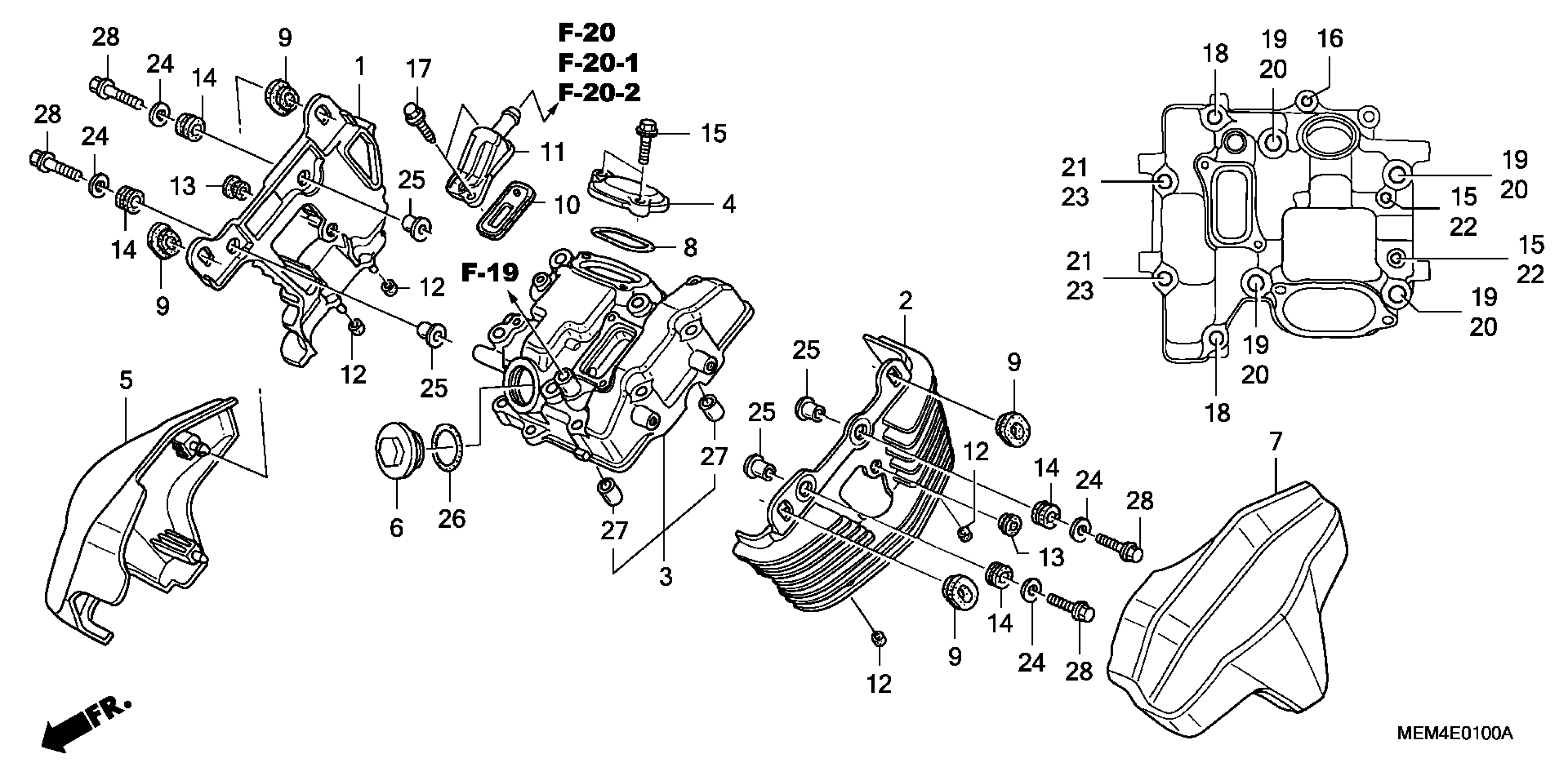

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 FRONT CYLINDER HEAD COVER Diagram

#

Description
Price

1

FIN, CYLINDER HEAD (FR. R.)

12261-MEA-670

Unavailable

2

FIN, CYLINDER HEAD (FR. L.)

12271-MEA-670

$170.54

3

COVER, FR. CYLINDER HEAD

12310-MEA-670

$286.58

4

COVER, IN. TAPPET ADJUSTING HOLE

12341-MEA-670

$14.46

5

COVER, R. FR. OVER HEAD

12361-MEA-670

Unavailable

6

CAP, TAPPET ADJUSTING HOLE

12361-383-000

$5.98

7

COVER, L. FR. OVER HEAD

12371-MEA-670

$81.45

8

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.66

9

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

10

VALVE, REED

18601-MCH-003

$24.15

11

COVER, REED VALVE

18612-MCH-000

$19.33

12

RUBBER, BUSHING

19041-611-003

$38.94

13

GROMMET, SIDE COVER

83501-MG7-000

$2.38

14

RUBBER, CUSHION

17622-GB7-900

$4.47

15

BOLT, FLANGE (6X20) (NSHF)

90004-GHB-650

$1.78

16

BOLT, FLANGE (6X25) (NSHF)

90006-GHB-670

$1.64

17

BOLT, FLANGE (5X14)

90012-896-750

$1.14

18

BOLT, FLANGE (8X150)

90015-MG8-000

$5.64

19

NUT, FLANGE CAP (10MM)

90201-HA0-000

$5.99

19

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$5.99

20

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

Unavailable

21

WASHER, SEALING (8MM)

90441-ME9-000

$2.38

22

WASHER, SEALING (6MM)

90441-706-000

$1.06

23

NUT, CAP (8MM)

90443-107-000

$2.62

24

WASHER (18MM) This part replaces 90482-567-000.

90581-831-650

$1.70

24

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.70

24

WASHER (18MM)

90581-831-650

$1.70

25

COLLAR, HEAD SIDE COVER

90502-KGB-610

$1.93

26

O-RING (35X3) (ARAI)

91303-KK3-830

$2.80

27

PIN, DOWEL (14X20)

94301-14200

$2.25

28

BOLT, FLANGE (6X25)

95701-06025-08

$1.64
