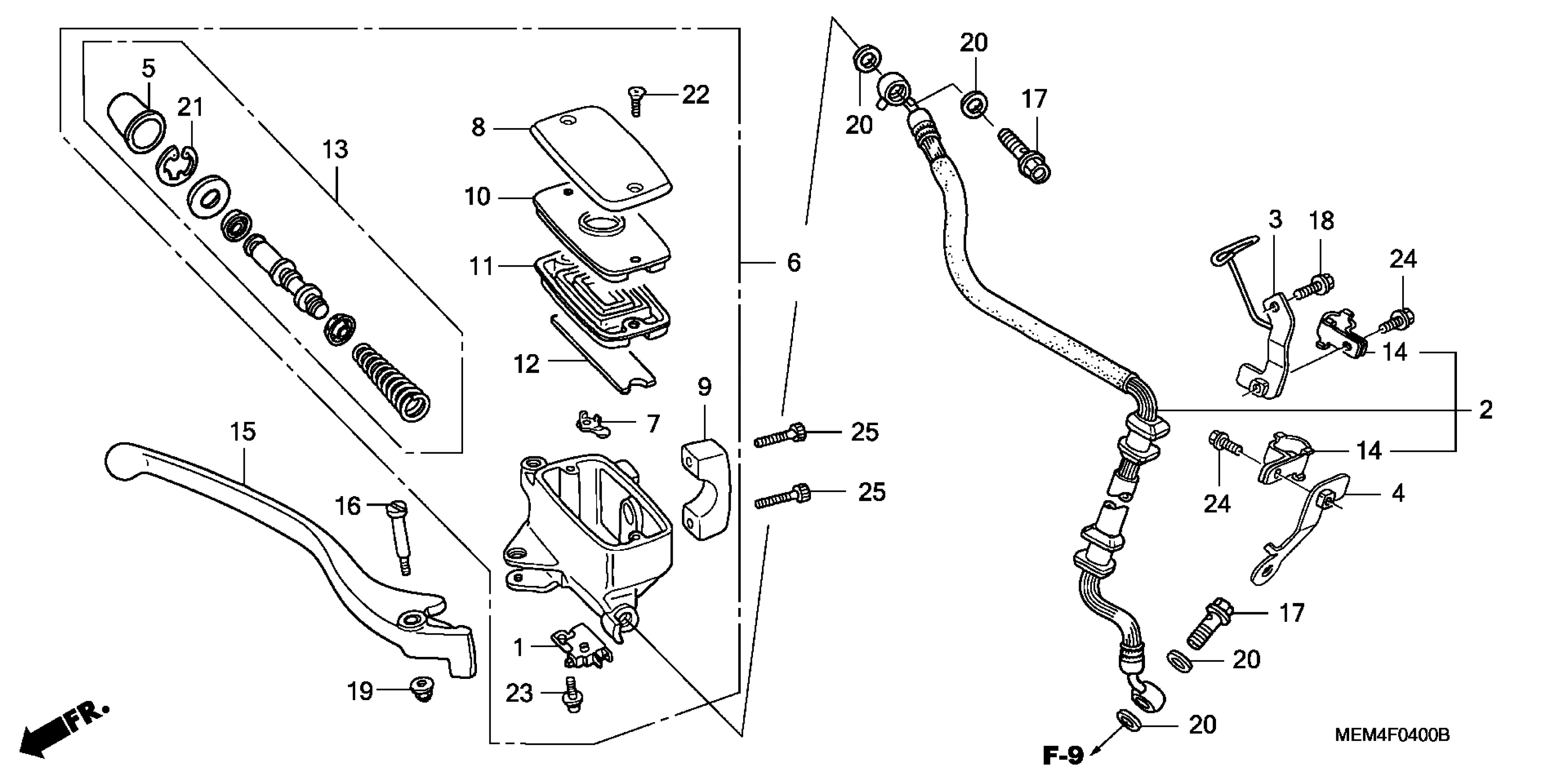

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

HOSE, FR. BRAKE

45126-MEM-671

$44.46

CLAMP, FR. BRAKE HOSE

45137-MEM-670

Unavailable

BRACKET, FR. HOSE CLIP

45138-MEM-670

$3.44

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MEA-A21

$118.97

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MM4-016

$18.48

HOLDER, MASTER CYLINDER (NISSIN)

45517-MEG-006

$9.80

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

DIAPHRAGM

45520-MM5-006

$15.12

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.49

MASTER CYLINDER SET

45530-MN9-305

$50.74

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

LEVER, R. HANDLE (COO) This part replaces 53175-ML5-006.

53175-MFR-305

$18.76

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22)

90145-MS9-612

$7.54

BOLT, FLANGE (6X12) (DR)

90104-MEA-740

$1.61

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

90158-MT7-000

$2.15

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X10)

90106-MBZ-G00

$1.49

BOLT, SOCKET (6X22)

90101-MCL-000

$1.49
