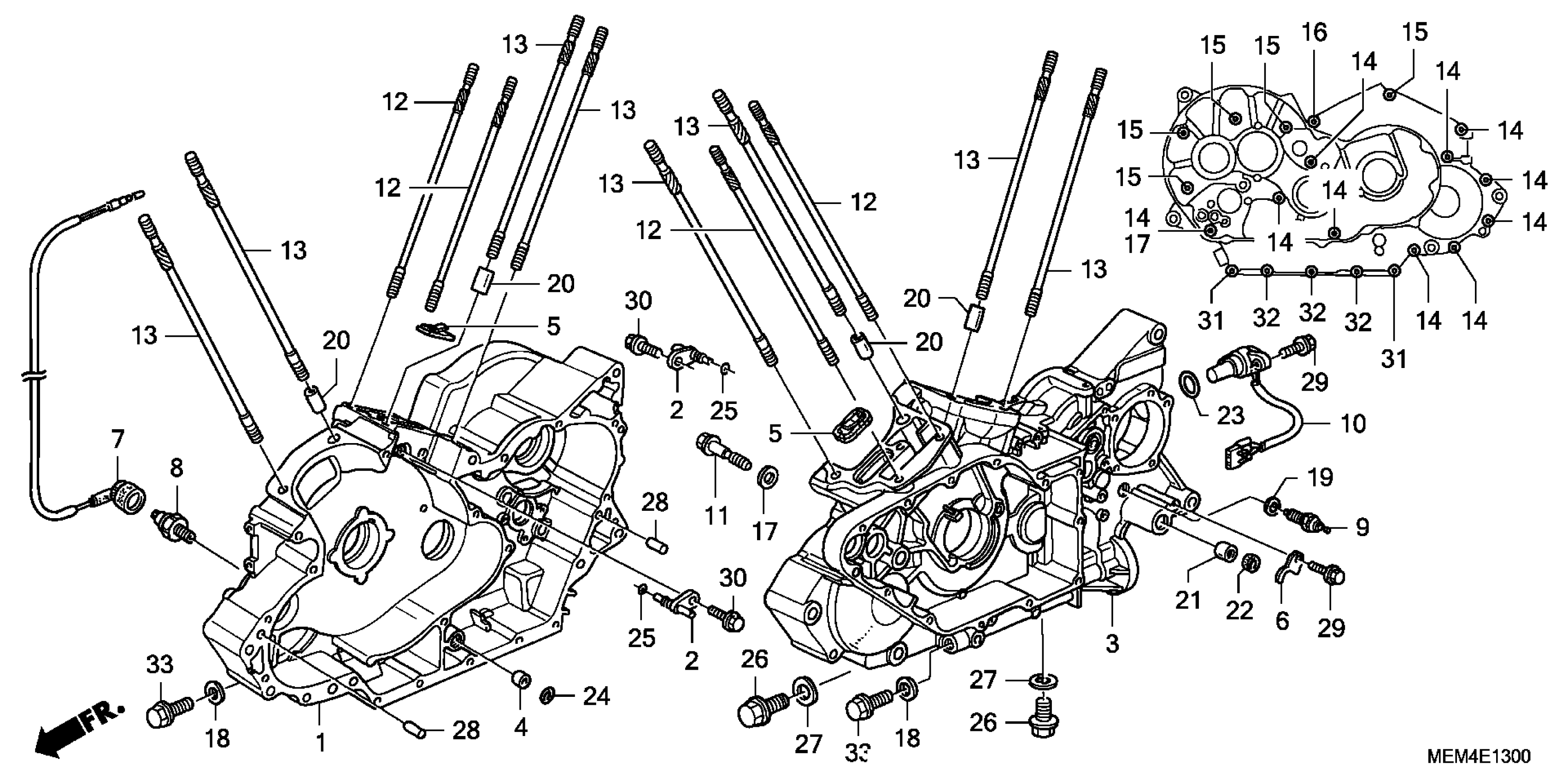

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 CRANKCASE Diagram

CRANKCASE, R.

11100-MEA-670

$466.38

JET, OIL

11140-MEA-670

$10.11

CRANKCASE, L.

11200-MEA-670

$468.30

COLLAR, O-RING

15155-300-000

$3.47

VALVE, REED

18601-MN4-851

$50.18

PLATE, SPINDLE

24612-MAL-600

$9.75

SUB-HARNESS A

32101-MEA-670

Unavailable

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$18.90

SENSOR ASSY., SPEED

37700-MCV-003

$155.35

BOLT, ORIFICE (1.6MM)

90003-MCH-000

$9.74

BOLT, STUD (8X259)

90011-MAH-000

$11.62

BOLT, STUD (10X269)

90012-MBC-003

$17.84

BOLT, FLANGE (8X95)

90016-MEA-670

$2.90

BOLT, FLANGE (8X105)

90017-MEA-670

$3.16

BOLT, FLANGE (8X115)

90018-MEA-670

$3.51

WASHER, SEALING (8MM)

90441-MG8-000

$2.28

WASHER, SEALING (10MM)

90443-MB0-000

$2.92

WASHER, NEUTRAL

90443-MJ6-000

$1.92

PIN, DOWEL (14X28)

90701-KAE-000

$1.82

BEARING, NEEDLE (14X22X16)

91106-KM1-013

$19.13

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

O-RING (18.1X3.6)

91302-MAL-601

$3.53

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

O-RING (14.8X2.4) (NOK)

91356-MA6-005

$1.78

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN B, DOWEL (10X16)

94302-10160

$1.69

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

BOLT, FLANGE (10X16)

95701-10016-00

$1.49
