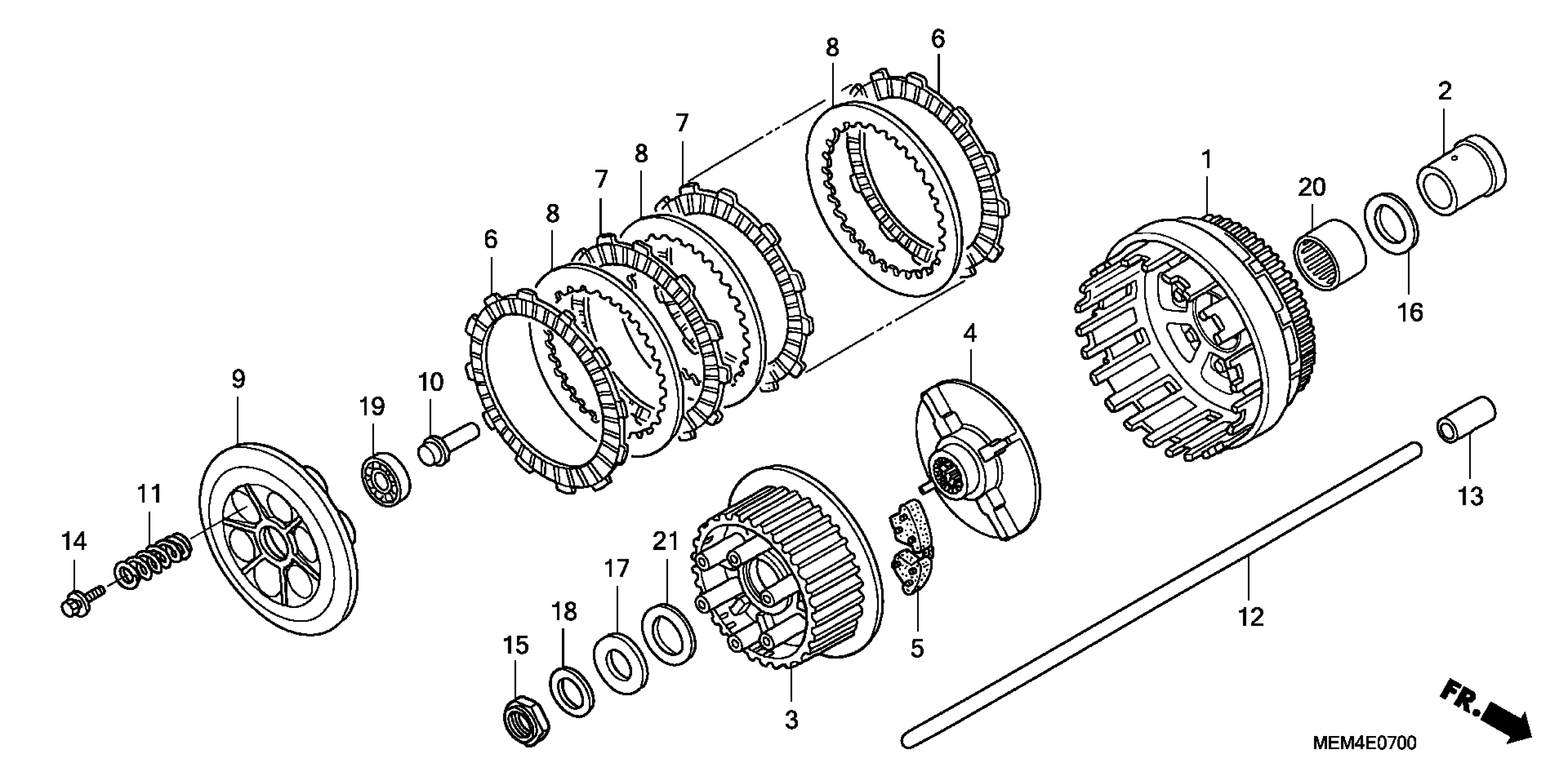

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 CLUTCH Diagram

#

Description
Price

1

CLUTCH OUTER ASSY.

22100-MEA-670

$303.18

2

GUIDE, CLUTCH (OUTER)

22116-MEA-670

$19.20

3

CENTER, CLUTCH

22121-MEA-670

$102.39

4

BOSS, CLUTCH CENTER

22122-MEA-670

$144.55

5

RUBBER, CLUTCH DAMPER

22125-MEA-670

$13.09

6

DISK, CLUTCH FRICTION

22201-MCA-000

$16.07

7

DISK A, CLUTCH FRICTION

22203-MCA-000

$17.01

8

PLATE A, CLUTCH

22321-MN5-000

$12.45

9

PLATE, CLUTCH PRESSURE

22350-MCH-000

$69.81

10

PIECE, CLUTCH JOINT

22366-MAZ-000

$11.20

11

SPRING, CLUTCH

22401-MCH-000

$4.29

12

ROD, CLUTCH LIFTER

22851-MEA-670

$22.33

13

PIECE, CLUTCH LIFTER ROD

22852-MK5-000

$6.90

14

BOLT-WASHER (6X35)

90022-MAT-E00

$4.54

15

NUT, LOCK (25MM)

90231-MCH-000

$6.32

16

WASHER (35X50X3.2)

90401-MEA-670

$4.90

17

WASHER (25.2X51X2.5)

90402-MEA-670

$4.90

18

WASHER, SPRING (25MM)

90432-MEA-670

$3.80

19

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$13.83

19

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$13.83

19

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$13.83

19

BEARING, RADIAL BALL (16003)

91011-KK6-013

$13.83

20

BEARING, NEEDLE (35X42X30) (TOYO)

91024-MB0-003

$78.39

21

WASHER

90403-MK2-300

$5.32
