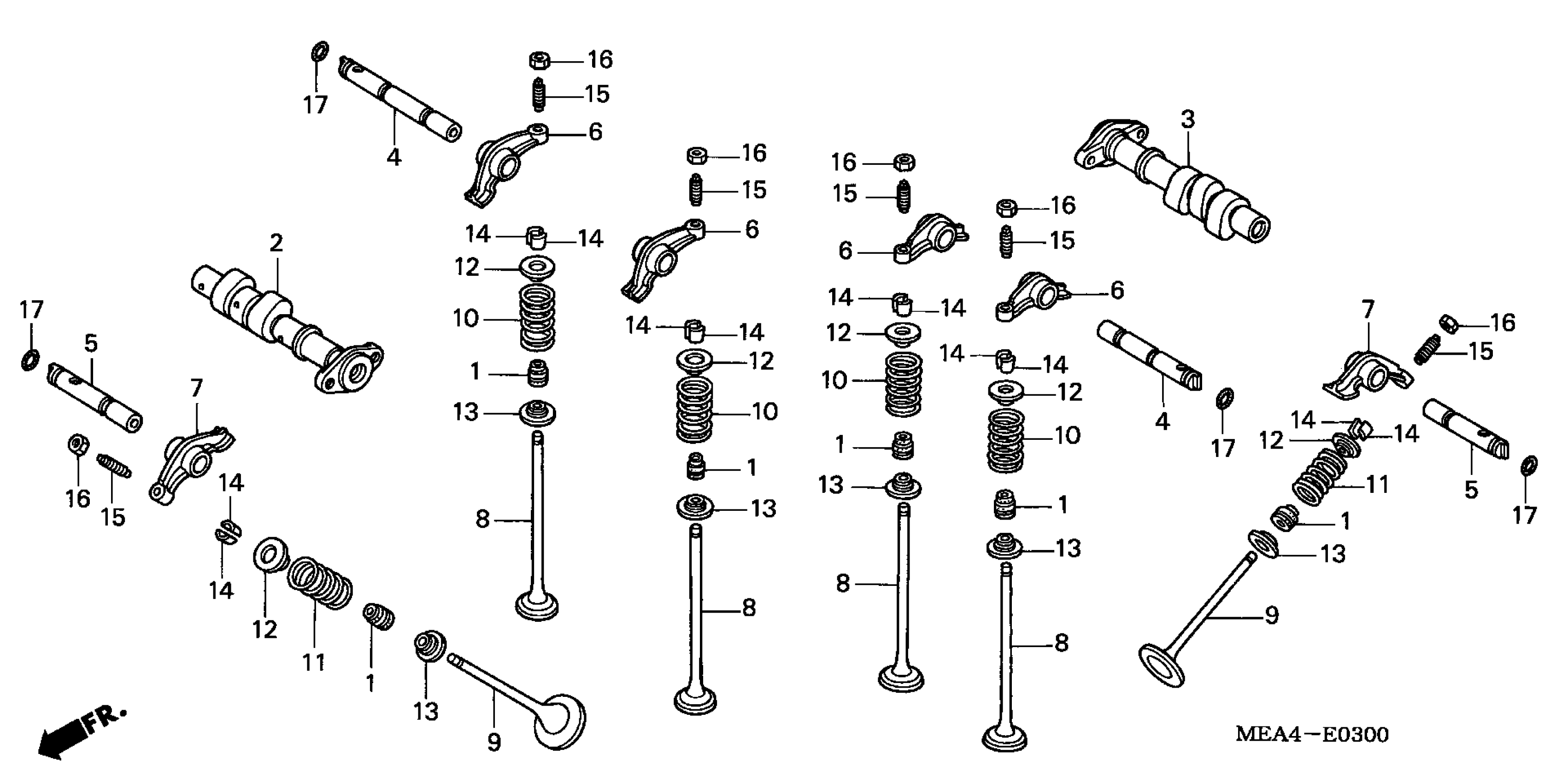

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 CAMSHAFT + VALVE Diagram

Description

Price

SEAL, VALVE STEM (ARAI)

12209-413-003

$14.98

CAMSHAFT, FR.

14110-MEA-670

$204.20

CAMSHAFT, RR.

14120-MEA-670

$204.20

SHAFT, IN. ROCKER ARM

14451-MEA-670

$26.20

SHAFT, EX. ROCKER ARM

14461-MEA-670

$23.05

ARM, IN. ROCKER

14611-MEA-670

$56.59

ARM, EX. ROCKER

14621-MEA-670

$56.59

VALVE, IN.

14711-MEA-670

$37.67

VALVE, EX.

14721-MEA-670

$75.00

SPRING, IN. VALVE

14751-MEA-670

$9.80

SPRING, EX. VALVE (OUTER)

14752-ME9-000

$13.84

RETAINER, VALVE SPRING

14771-410-010

$8.75

SEAT, VALVE SPRING

14775-ME9-000

$13.72

COTTER, VALVE

14781-MB9-000

$4.95

SCREW, TAPPET ADJUSTING

90014-MCH-000

$3.74

NUT, TAPPET ADJUSTING

90206-590-000

$4.83

O-RING (9.6X2.6) (ARAI)

91309-ML7-003

$2.22
