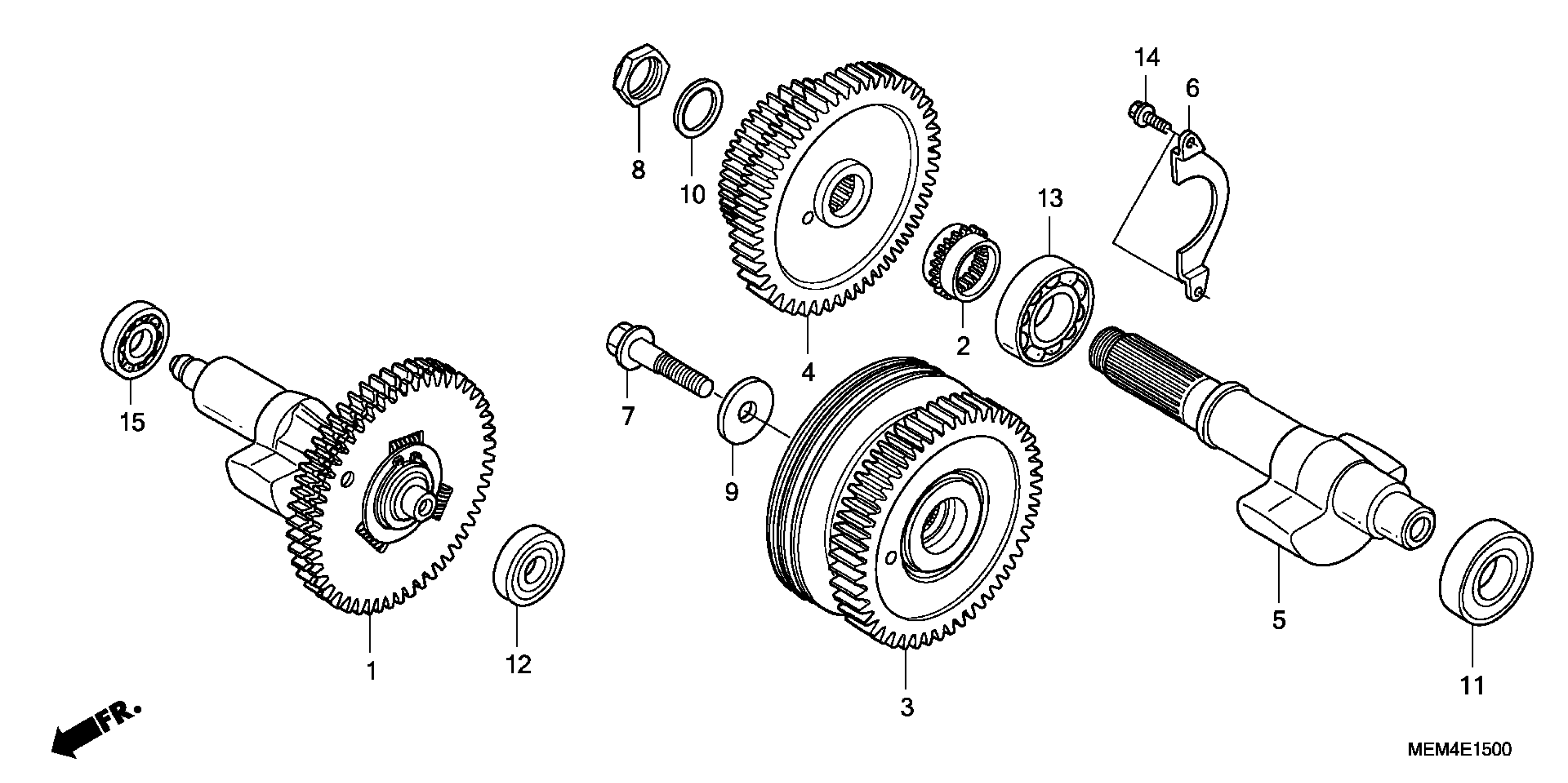

Honda VTX1300CA (09) VTX, USA, VIN# 1HFSC550-9A500001 BALANCER Diagram

#

Description

Price

1

SHAFT ASSY., FR. BALANCER (47T)

13400-MEM-670

$318.30

2

SPROCKET, OIL PUMP DRIVE (21T)

15131-MEA-670

$43.39

3

DAMPER ASSY., PRIMARY (47T) This part replaces 23110-MEA-671.

23110-MEA-672

$348.20

4

GEAR, PRIMARY (47T/31T)

23131-MEA-670

Unavailable

5

SHAFT, RR. BALANCER

23150-MEM-670

$195.32

6

PLATE B, BEARING SETTING

23153-MCH-000

$7.38

7

BOLT, FLANGE (12X45)

90023-MBT-010

$6.41

8

NUT, LOCK (25MM)

90231-MCH-000

$6.32

9

WASHER (12.2X40X5)

90402-MBA-A40

$5.12

10

WASHER, SPRING (25MM)

90432-MEA-670

$3.80

11

BEARING, RADIAL BALL (63/22U) (KOYO)

91002-MCH-003

$25.06

12

BEARING, RADIAL BALL (6204U SPL.) (KOYO)

91011-HN2-004

$15.55

13

BEARING, RADIAL BALL (6305U)

91024-MEA-671

$20.62

14

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

15

BEARING, RADIAL BALL (6204)

96100-62040-00

$10.98
