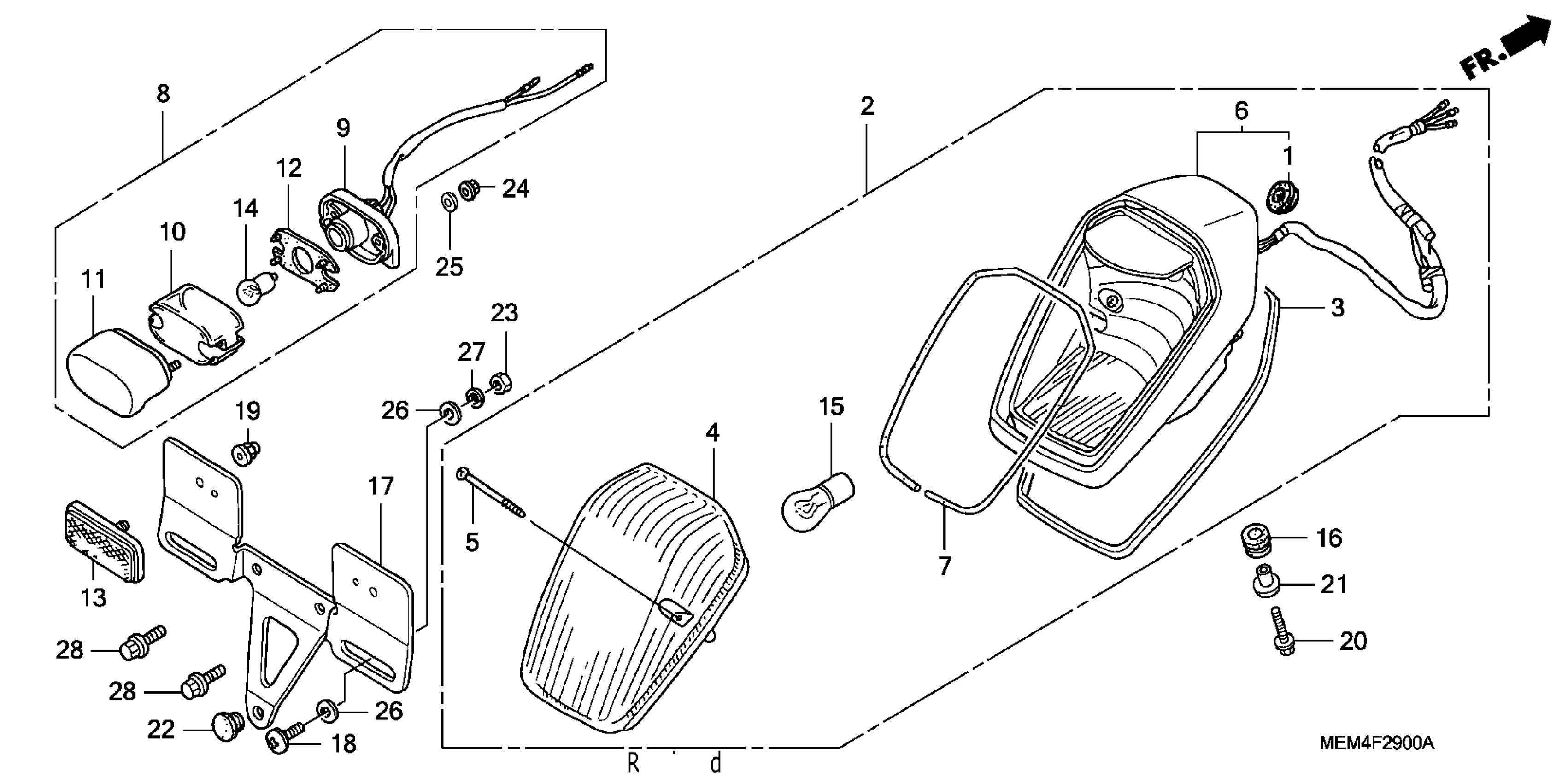

Honda VTX1300CA (06) VTX, USA, VIN# 1HFSC550-6A200001 TO 1HFSC550-6A299999 TAILLIGHT Diagram

GROMMET, WIRE HARNESS

32983-028-000

$1.49

TAILLIGHT ASSY. (12V 21/5W) This part replaces 33701-MCH-672.

33701-MCH-673

$198.36

TAILLIGHT ASSY. (12V 21/5W)

33701-MCH-673

$198.36

MOLDING, TAILLIGHT

33702-MCH-003

$10.11

LENS, TAILLIGHT

33702-MCH-671

$54.67

SCREW, SPECIAL (4X50)

33703-MCH-671

$1.84

BASE, TAILLIGHT This part replaces 33704-MCH-671.

33704-MCH-672

Unavailable

GASKET, TAILLIGHT

33709-MCH-671

$8.08

LIGHT ASSY., LICENSE (12V 8W) This part replaces 33720-MCH-671.

33720-MCH-672

Unavailable

BASE, LICENSE This part replaces 33721-MCH-671.

33721-MCH-672

Unavailable

LENS, LICENSE LIGHT

33722-MB1-013

$19.68

COVER, LICENSE LIGHT

33727-KR3-000

$27.97

GASKET, LENS

33729-MB1-003

$6.30

REFLECTOR, RR. REFLEX

33741-MR1-671

$19.03

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

BULB, TAILLIGHT (12V 21/5W) (STANLEY)

34906-447-711

$9.38

RUBBER, RR. FENDER CUSHION

80101-310-000

$1.94

BRACKET, NUMBER PLATE

84701-MEM-670

$35.79

SCREW, SPECIAL (6X14)

90110-GW0-000

$2.75

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.59

BOLT, FLANGE (5X20)

90197-MN5-000

$2.52

COLLAR, HEADLIGHT BRACKET

90501-MJ6-000

$4.48

PLUG, HOLE

90852-446-630

$2.56

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, FLANGE (4MM)

94050-04000

$1.49

WASHER, PLAIN (4MM)

94101-04800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

BOLT, FLANGE (6X14)

95701-06014-07

$1.49
