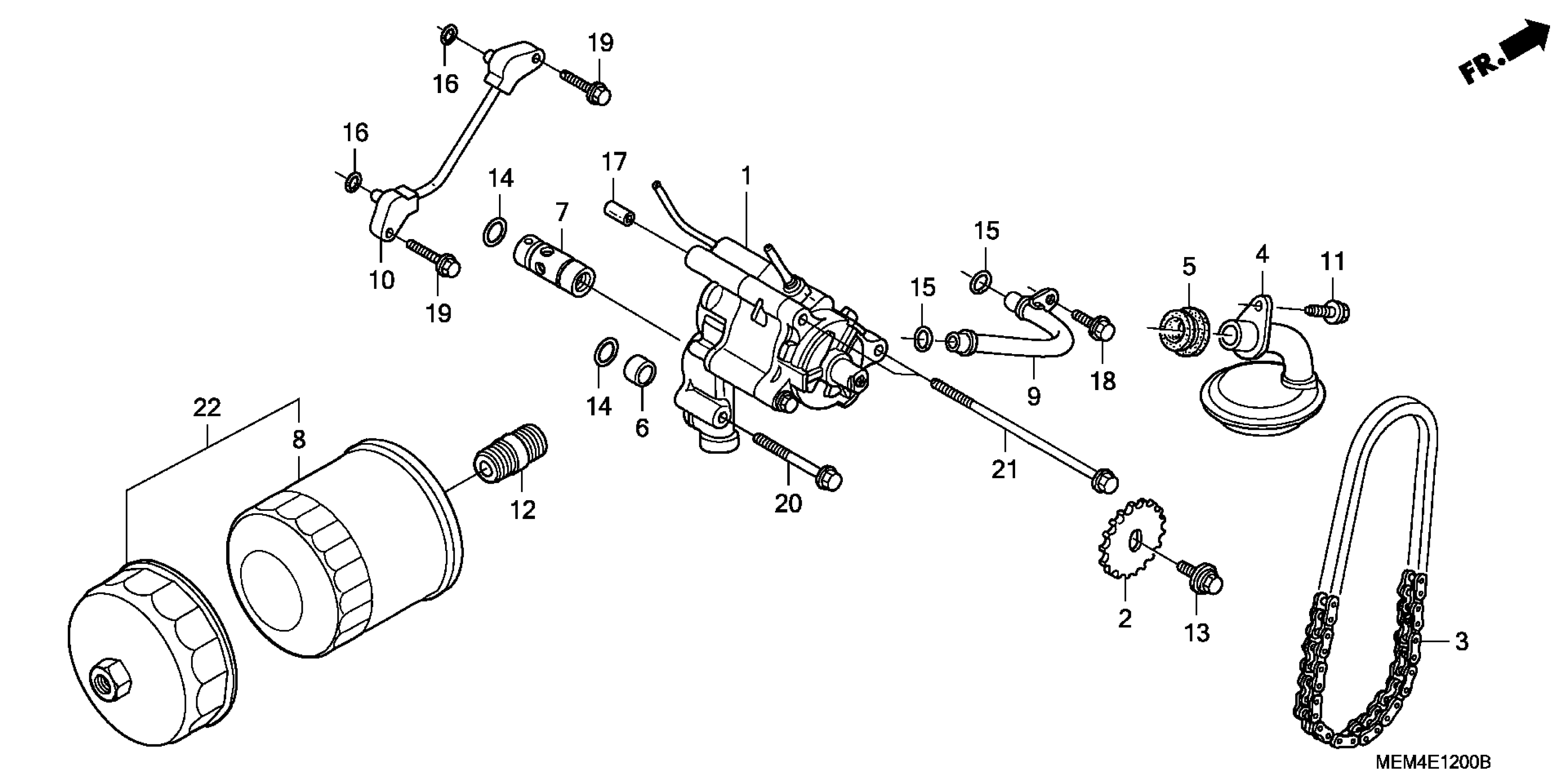

Honda VTX1300CA (05) VTX, USA, VIN# 1HFSC550-5A100001 TO 1HFSC550-5A199999 OIL FILTER + OIL PUMP Diagram

PUMP ASSY., OIL

15100-MEA-670

$215.21

SPROCKET, OIL PUMP DRIVEN (22T)

15134-MEA-670

$41.72

CHAIN, OIL PUMP DRIVE (52L) (BORG WARNER)

15136-MEA-671

$17.44

STRAINER, OIL

15150-MEA-670

$39.23

GASKET, OIL STRAINER

15154-MM5-000

$6.60

COLLAR, O-RING

15155-300-000

$3.47

VALVE ASSY., RELIEF

15220-ME9-770

$43.41

FILTER, OIL (WAKO FILTER) This part replaces 15410-MCJ-000.

15410-MFJ-D02

$15.84

FILTER, OIL (WAKO FILTER) This part replaces 15410-MCJ-003.

15410-MFJ-D02

$15.84

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

PIPE, SCAVENGE OIL

15520-MEA-670

$19.16

PIPE, OIL PASSAGE

15530-MEA-670

$86.84

BOLT, FLANGE (6X14) (CT200)

90014-952-000

$2.35

BOSS, OIL FILTER

90019-MB0-000

$8.61

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

O-RING (14.8X2.4) (NOK)

91356-MA6-005

$1.78

O-RING (9.6X2.6) (ARAI)

91309-ML7-003

$2.22

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

BOLT, FLANGE (6X40)

95701-06040-08

$1.80

BOLT, FLANGE (6X90)

95701-06090-08

$1.53
