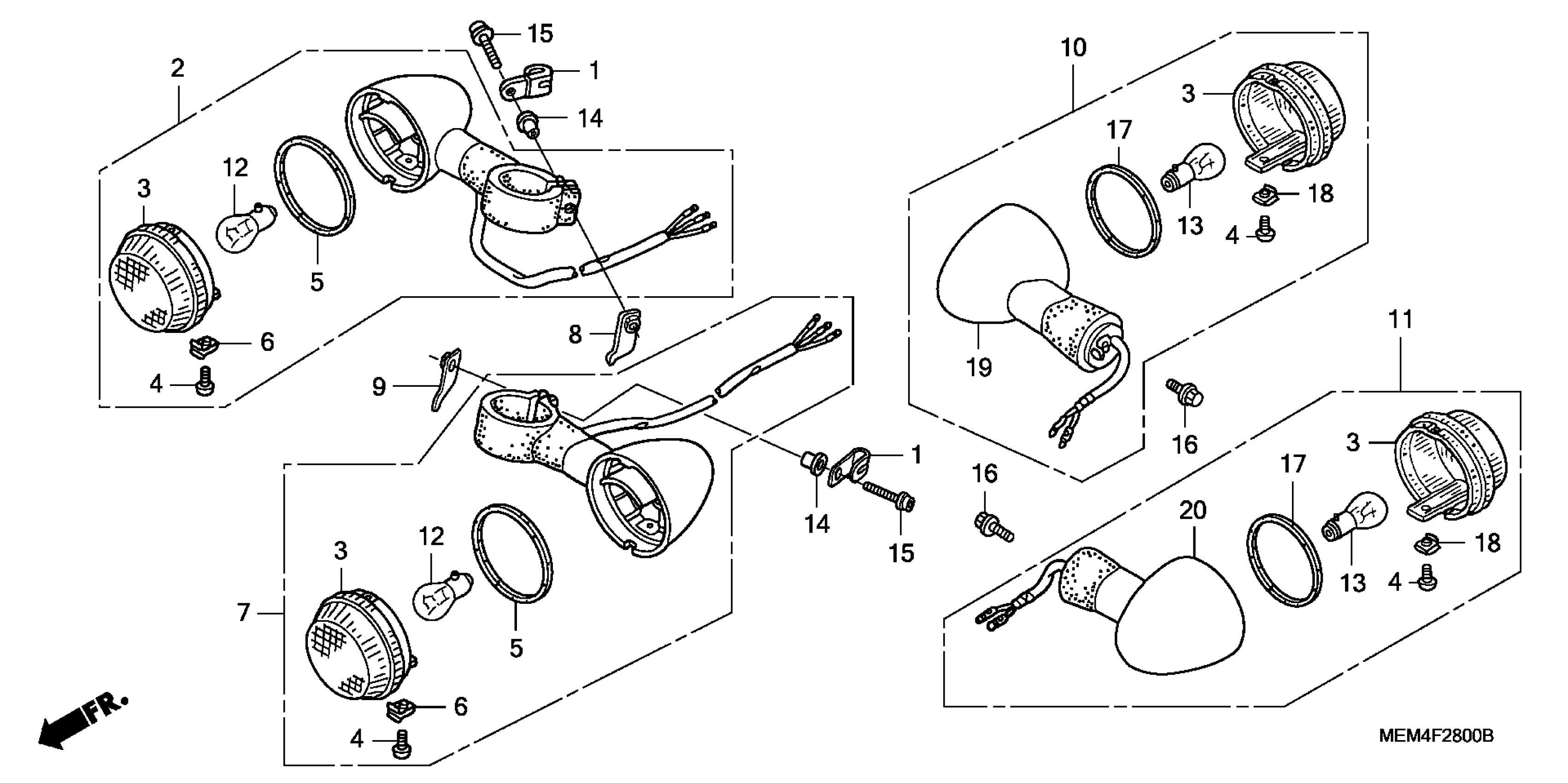

Honda VTX1300CA (05) VTX, USA, VIN# 1HFSC550-5A100001 TO 1HFSC550-5A199999 FRONT + REAR TURN SIGNAL Diagram

CLIP, PULSER WIRE

32925-958-000

$2.92

TURN SIGNAL ASSY., R. FR. (12V 21/5W) (STANLEY)

33400-MZ8-K02

$53.88

LENS, TURN SIGNAL (COO) This part replaces 33401-MBA-612.

33401-MFR-305

$10.20

SCREW, SPECIAL (4X8)

33403-MBA-611

$1.49

GASKET, LENS

33407-MBA-611

$3.15

NUT, CLIP

33408-MBA-611

$2.11

TURN SIGNAL ASSY., L. FR. (12V 21/5W) (STANLEY)

33450-MZ8-K02

$53.88

STAY, R. FR. TURN SIGNAL

33510-MEM-670

Unavailable

STAY, L. FR. TURN SIGNAL

33520-MEM-670

Unavailable

TURN SIGNAL ASSY. This part replaces 33600-MCH-003.

33600-MCH-013

Unavailable

WINKER ASSY,L RR This part replaces 33650-MCH-003.

33650-MCH-013

$73.87

BULB, TAILLIGHT (12V 21/5W) (STANLEY)

34906-447-711

$9.38

BULB (12V 21W) (ECE) (STANLEY)

34908-634-611

$5.88

COLLAR, COVER MOUNTING

83505-MN0-000

$6.61

BOLT, FLANGE SOCKET (6X28)

90098-KF0-000

$3.85

BOLT, FLANGE (6X12)

90130-ML0-730

$2.92
