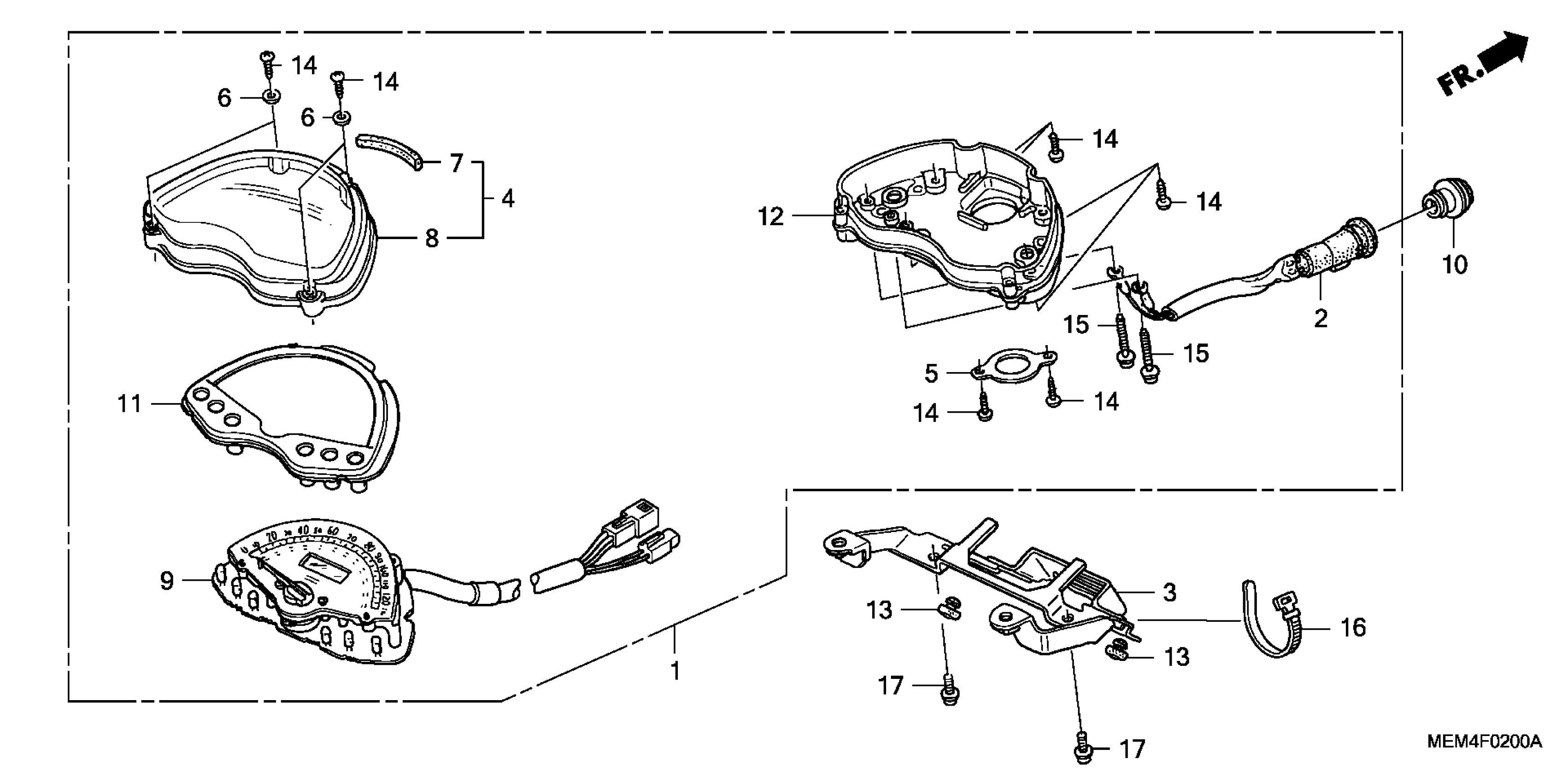

Honda VTX1300CA (04) VTX, USA, VIN# 1HFSC550-4A000001 TO 1HFSC550-4A099999 SPEEDOMETER Diagram

SPEEDOMETER ASSY. (MPH/KPH)

37200-MEM-671

Unavailable

SWITCH ASSY., RESET

37202-MEA-601

$9.97

STAY, METER

37203-MEA-670

$10.79

GLASS This part replaces 37204-MEA-601.

37204-MEA-670

$103.16

PLATE

37205-MEA-601

$4.07

WASHER

37207-MEA-601

$1.49

GASKET (5)

37208-MEA-601

$9.88

GLASS

37209-MEA-601

$21.16

SPEEDOMETER

37210-MEM-671

Unavailable

CAP, RESET SWITCH

37215-MBA-611

$8.74

PLATE ASSY., REFLECTING

37220-MEM-671

$19.67

CASE This part replaces 37230-MCV-670.

37230-MCV-671

Unavailable

CASE

37230-MCV-671

Unavailable

RUBBER, NUMBER PLATE BRACKET CUSHION

84702-MF2-670

$4.57

SCREW, TAPPING (3X14)

90101-MCV-000

$1.49

SCREW-WASHER (3X18)

90133-SL9-003

$8.67

BAND, WIRE HARNESS

90652-MB0-000

$3.15

SCREW-WASHER (4X10)

93893-04010-00

$1.49

SCREW-WASHER (4X10) This part replaces 93893-04010-10.

93893-04010-00

$1.49
