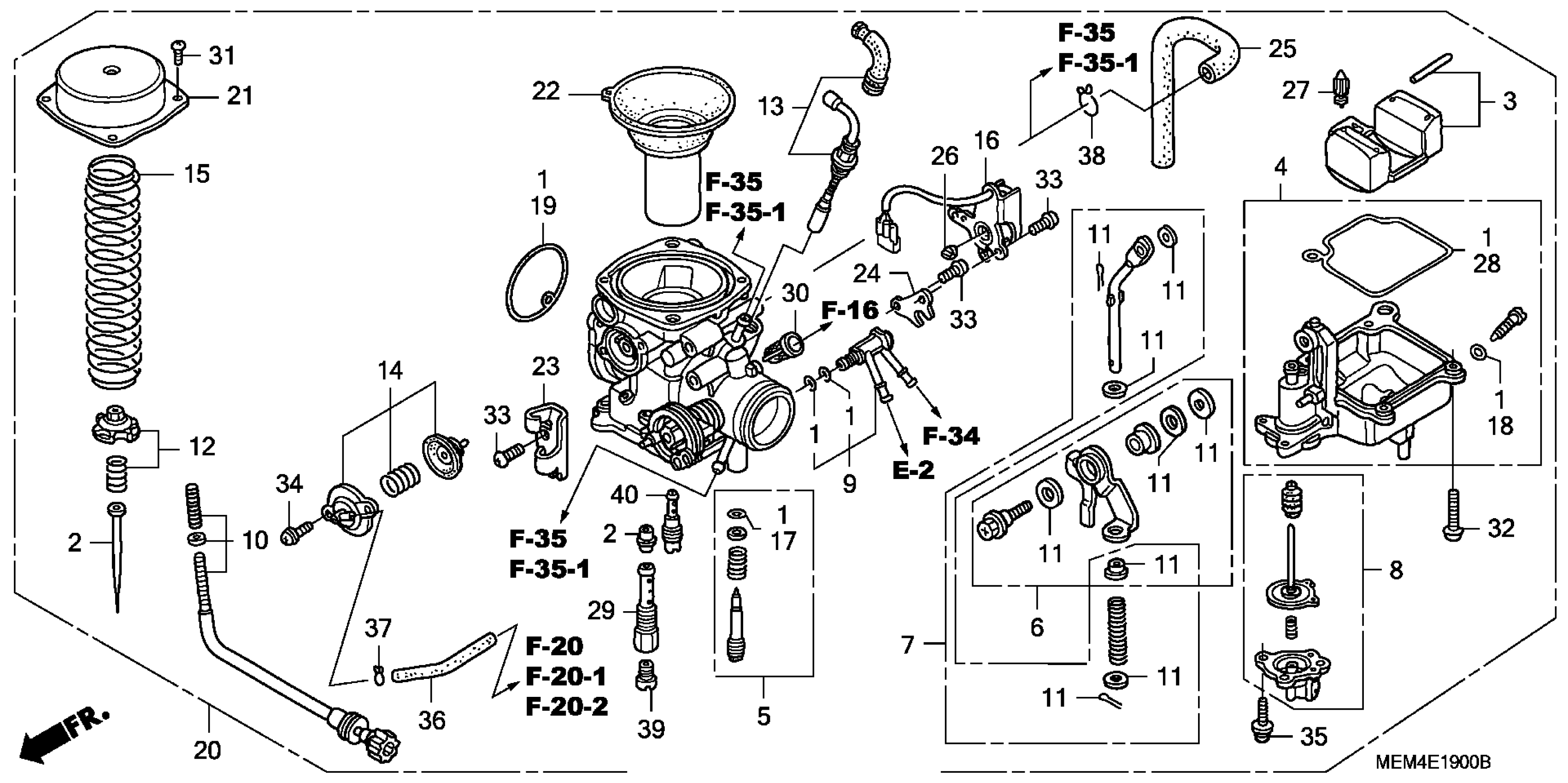

Honda VTX1300CA (04) VTX, USA, VIN# 1HFSC550-4A000001 TO 1HFSC550-4A099999 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-MEA-671

$39.34

2

NEEDLE SET, JET

16012-MEM-671

Unavailable

3

FLOAT SET

16013-KR3-980

$49.62

4

CHAMBER SET, FLOAT This part replaces 16015-MEA-671.

16015-MZ8-M91

Unavailable

4

CHAMBER SET, FLOAT

16015-MZ8-M91

Unavailable

5

SCREW SET A

16016-MZ8-S00

$20.45

6

LINK SET

16017-KEN-620

$37.01

7

ROD SET, PUMP

16019-MZ8-H00

Unavailable

8

DIAPHRAGM SET, PUMP This part replaces 16021-KBG-670.

16021-KEN-620

$108.44

9

JOINT SET

16026-MEA-671

Unavailable

10

SCREW SET B

16028-MEA-671

Unavailable

11

WASHER SET

16035-MZ8-H00

$7.32

12

PLATE SET, VALVE

16037-MAK-000

$15.30

13

VALVE SET, STARTER

16046-MEA-671

Unavailable

14

VALVE SET, AIR CUT

16048-MZ8-H00

$99.29

15

SPRING, COMPRESSION COIL

16050-MEA-671

$10.45

16

SENSOR SET, THROTTLE

16060-MEA-671

Unavailable

17

O-RING (1.1X2.8)

16075-GHB-600

$2.12

18

O-RING (1.3X4.3)

16075-GHB-640

$2.65

19

O-RING

16076-MEA-671

$5.07

20

CARBURETOR ASSY. (VE7CA A)

16100-MEM-671

Unavailable

21

TOP

16107-MEA-671

Unavailable

22

PISTON, VACUUM

16111-MEA-671

$108.48

23

STAY, WIRE

16119-MEA-671

Unavailable

24

PLATE, STAY

16120-MEA-671

$13.43

25

TUBE

16144-MEA-671

Unavailable

26

JOINT, CONNECTOR

16145-MZ2-780

$19.62

27

VALVE, FLOAT

16155-HN7-003

$25.94

28

GASKET, FLOAT CHAMBER

16163-MEA-671

$20.80

29

HOLDER, NEEDLE JET

16165-MEA-671

Unavailable

30

SCREEN, FUEL STRAINER

16176-MW3-A80

$6.36

31

SCREW, PAN (4X8)

93500-04008-0A

$0.80

31

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$0.80

32

SCREW, PAN (4X14)

93500-04014-0A

$0.75

32

SCREW, PAN (4X14) This part replaces 93500-04014-1A.

93500-04014-0A

$0.75

33

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

33

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

Unavailable

33

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

Unavailable

34

SCREW-WASHER (4X10)

93892-04010-08

$1.04

34

SCREW-WASHER (4X10) This part replaces 93892-04010-18.

93892-04010-08

$1.04

35

SCREW-WASHER (4X12)

93892-04012-00

$0.61

35

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$0.61

36

BULK HOSE, FUEL (3.5X3000) (3.5X120)

95001-35003-60M

$18.72

37

CLIP, TUBE (B7)

95002-02079

$1.09

38

CLIP, TUBE (B12)

95002-02120

Unavailable

39

JET, MAIN (#195)

99101-393-1950

$7.67

40

JET, SLOW (#55)

99103-MEA-0550

$10.12
