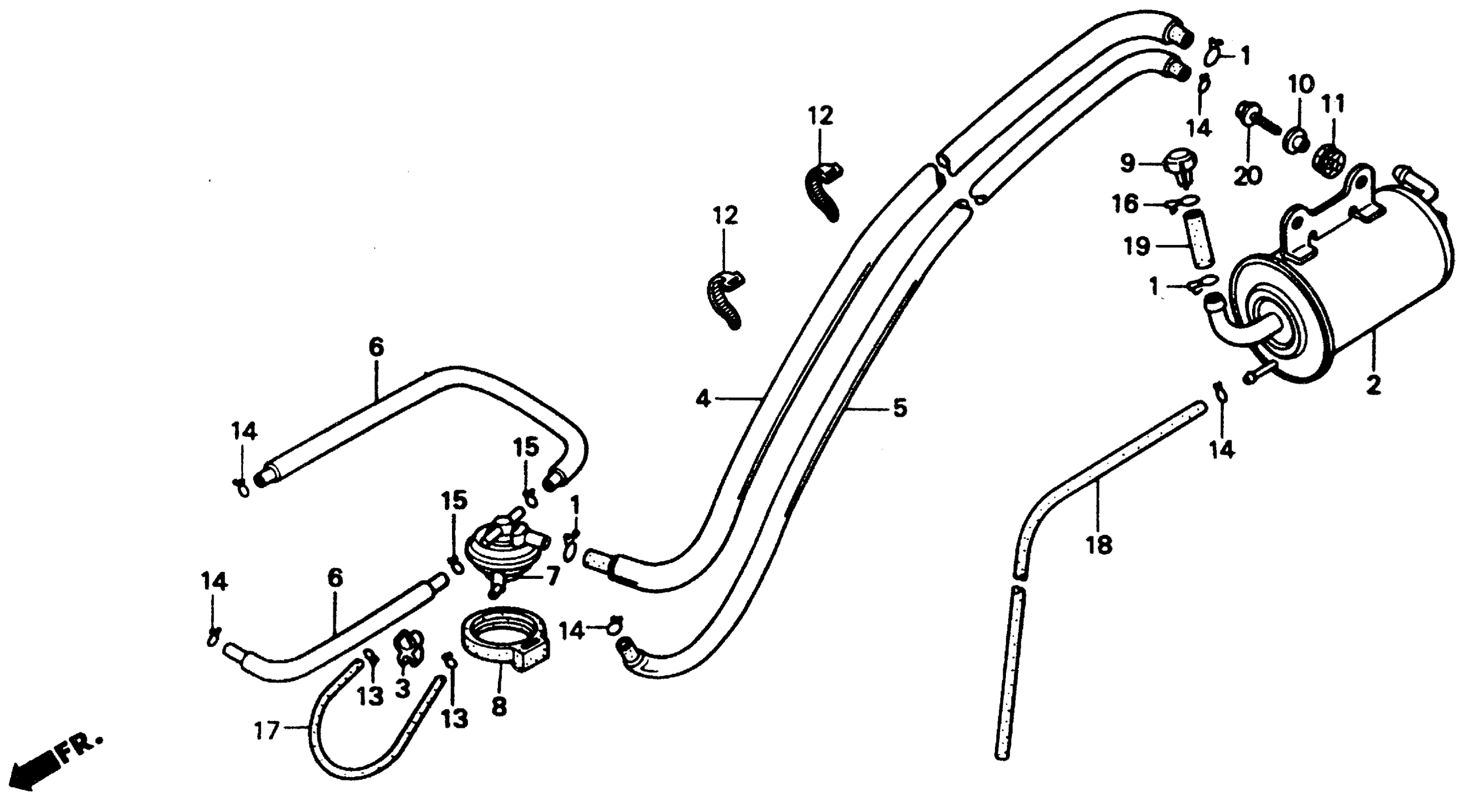

Honda VTR250AC (90) VTR, JPN, VIN# JH2MC151-LM200001 TO JH2MC151-LM200380 CANISTER Diagram

CLIP, BREATHER TUBE

15772-500-010

$3.90

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

CANISTER

17410-KV0-761

Unavailable

CLIP, TUBE

17413-MF5-830

Unavailable

TUBE, PURGE CONTROL VALVE CANISTER

17415-KV0-760

Unavailable

TUBE, TANK-CANISTER

17417-KV0-760

Unavailable

TUBE, FR. CARBURETOR JOINT

17418-KV0-760

Unavailable

VALVE, PURGE CONTROL

17440-MN0-680

Unavailable

RUBBER, PURGE CONTROL VALVE SETTING

17451-ME5-760

$12.90

PLUG, CANISTER AIR TUBE

17467-ME9-750

$10.36

COLLAR, SETTING

61104-422-000

$6.91

RUBBER, TAILLIGHT SETTING

84703-425-000

$4.72

BAND, WIRE HARNESS

90650-MA6-720

$4.15

CLIP, TUBE (B7)

95002-02070

$1.80

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (B10)

95002-02100

$1.90

CLIP, TUBE (B12.5)

95002-02130

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X250)

95005-35001-20M

$9.67

BULK HOSE, VACUUM (4.5X1000) (4.5X830)

95005-45001-20M

$34.14

BULK HOSE, VACUUM (8X1000) (8X50)

95005-80001-20M

$23.91

BOLT, FLANGE (6X22)

95701-06022-08

$1.72
