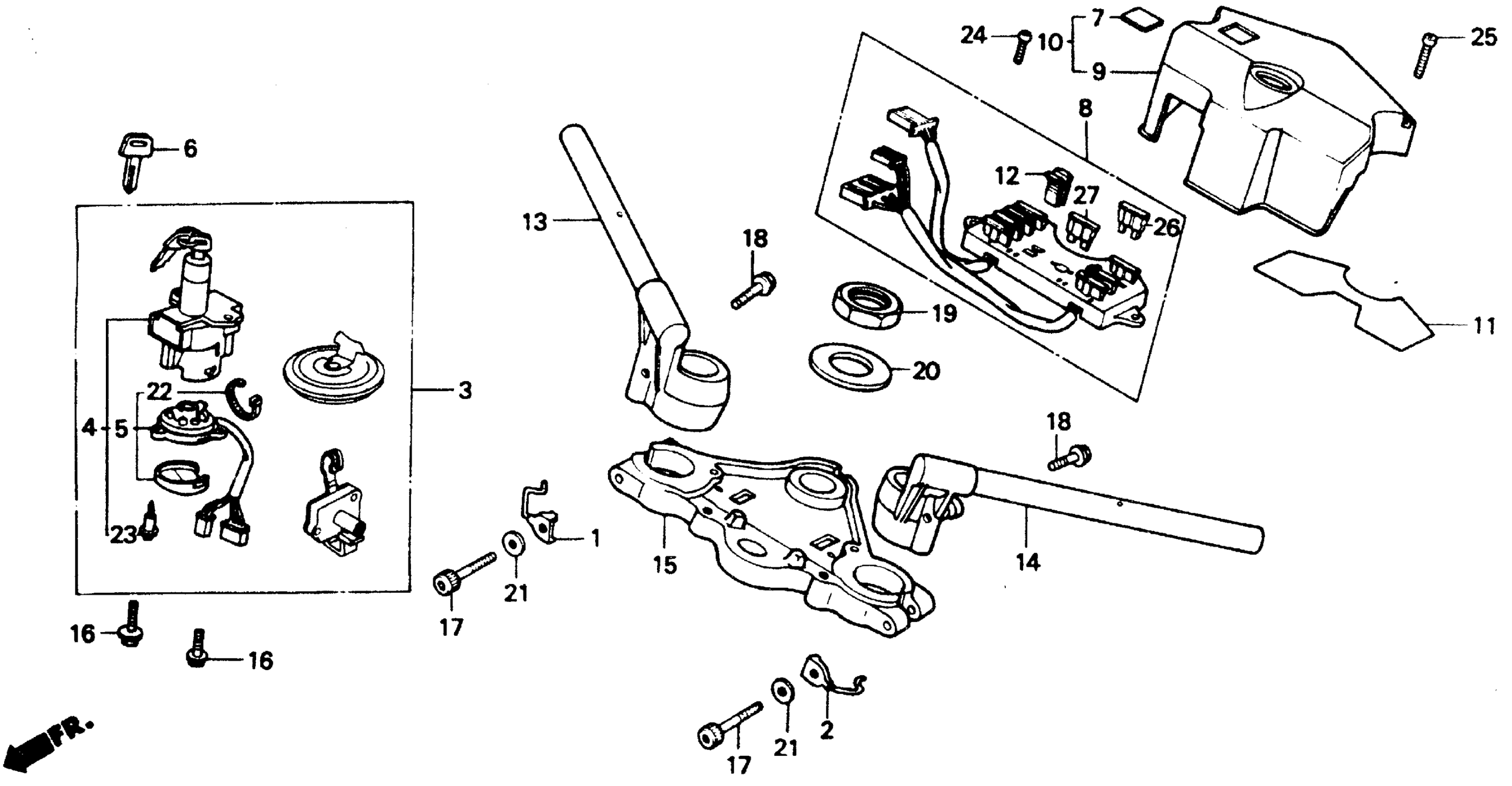

Honda VTR250AC (88) INTERCEPTOR VTR, JPN, VIN# JH2MC151-JM000004 TO JH2MC151-JM001029 HANDLEBAR Diagram

GUIDE, R. CABLE

17908-KM3-000

Unavailable

GUIDE, CABLE

17908-MB2-010

Unavailable

LOCK SET (NOT AVAILABLE)

35010-KV0-760

Unavailable

SWITCH ASSY., COMBINATION & LOCK

35100-KV0-000

Unavailable

BASE, CONTACT

35101-KV0-000

Unavailable

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

KEY, BLANK (TYPE1) | (Optional).

35121-KW3-771

$10.10

KEY, BLANK (TYPE2) | (Optional).

35122-KW3-771

$10.10

PLATE ASSY., FUSE

38200-KV0-005

Unavailable

COVER ASSY., FUSE BOX This part replaces 38210-KV0-010.

38210-KV0-890

Unavailable

COVER ASSY., FUSE BOX

38210-KV0-890

Unavailable

LABEL, FUSE

38215-KM3-300

Unavailable

PULLER, FUSE (DAIICHI)

38235-SA5-004

Unavailable

HANDLEBAR, R.

53100-KV0-670

Unavailable

HANDLEBAR, L.

53150-KV0-670

Unavailable

BRIDGE, FORK TOP

53230-KV0-000

Unavailable

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

BOLT, SOCKET (7X46)

90151-MB2-000

Unavailable

BOLT, HANDLEBAR SETTING

90153-438-000

$5.04

NUT, STEERING STEM

90304-425-000

$9.69

WASHER, STEERING STEM

90503-425-000

$4.21

WASHER, PLAIN (7MM)

90511-MB2-000

Unavailable

BAND, SELF-LOCK

91058-MG9-681

$2.21

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

SCREW, TAPPING (3X16) This part replaces 91059-MK4-601.

91059-KY2-711

$2.97

SCREW, PAN (4X14)

93500-04014-0A

$1.49

SCREW, PAN (5X28)

93500-05028-0G

$1.49

FUSE, BLADE (10A)

98200-31000

$1.49

FUSE, BLADE (15A)

98200-31500

$1.49
