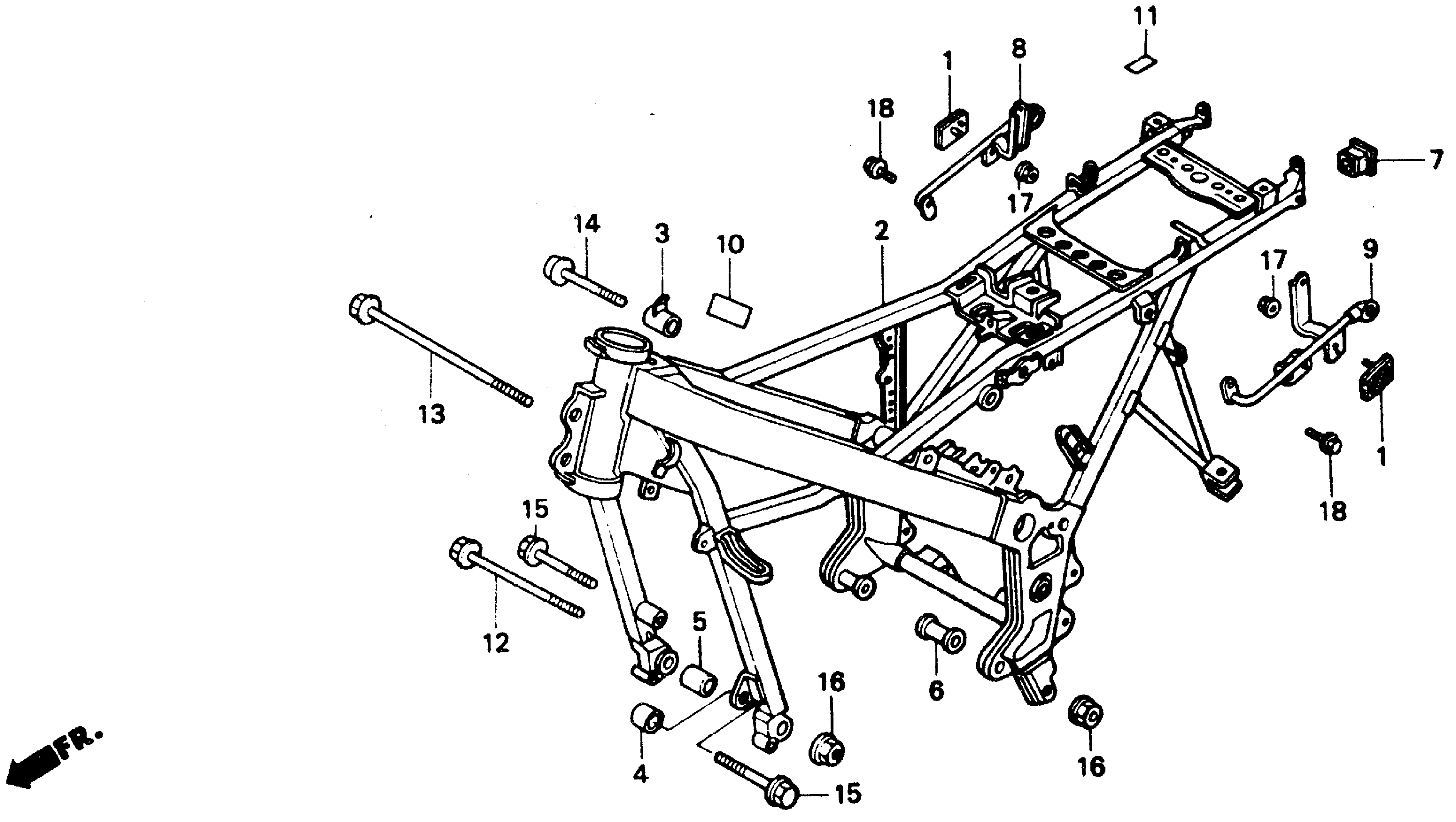

Honda VTR250AC (88) INTERCEPTOR VTR, JPN, VIN# JH2MC151-JM000004 TO JH2MC151-JM001029 FRAME Diagram

REFLECTOR, REFLEX

33741-GK8-672

Unavailable

FRAME *NH1* (BLACK)

50100-KV0-760ZA

Unavailable

COLLAR D, ENGINE SIDE

50218-KV0-000

Unavailable

COLLAR A, ENGINE SIDE

50219-KV0-000

Unavailable

COLLAR B, ENGINE SIDE

50220-KV0-000

Unavailable

COLLAR C, ENGINE SIDE

50221-KV0-000

Unavailable

CAP, FRAME END

50244-KM3-000

Unavailable

GRIP, R. SIDE

84100-KV0-670

Unavailable

GRIP, L. SIDE

84101-KV0-670

Unavailable

MARK, RADIATOR CAUTION (NOT AVAILABLE)

87508-415-670

Unavailable

LABEL, HELMET HOLDER

87511-323-670

$2.72

BOLT, FLANGE (10X227)

90101-KAZ-000

Unavailable

BOLT, FLANGE (10X227) This part replaces 90101-KV0-000.

90101-KAZ-000

Unavailable

BOLT, ENGINE HANGER (10X270)

90102-KV0-000

Unavailable

BOLT, SOCKET (10X70)

90114-KV0-000

Unavailable

BOLT, FLANGE (10X70) This part replaces 90125-KV0-000.

95801-10070-07

$2.64

BOLT, FLANGE (10X70)

95801-10070-07

$2.64

NUT, FLANGE (10MM)

90303-428-900

$3.35

NUT, FLANGE (5MM)

94050-05080

$1.49

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (8X12) This part replaces 95801-08012-07.

95701-08012-07

$1.72
