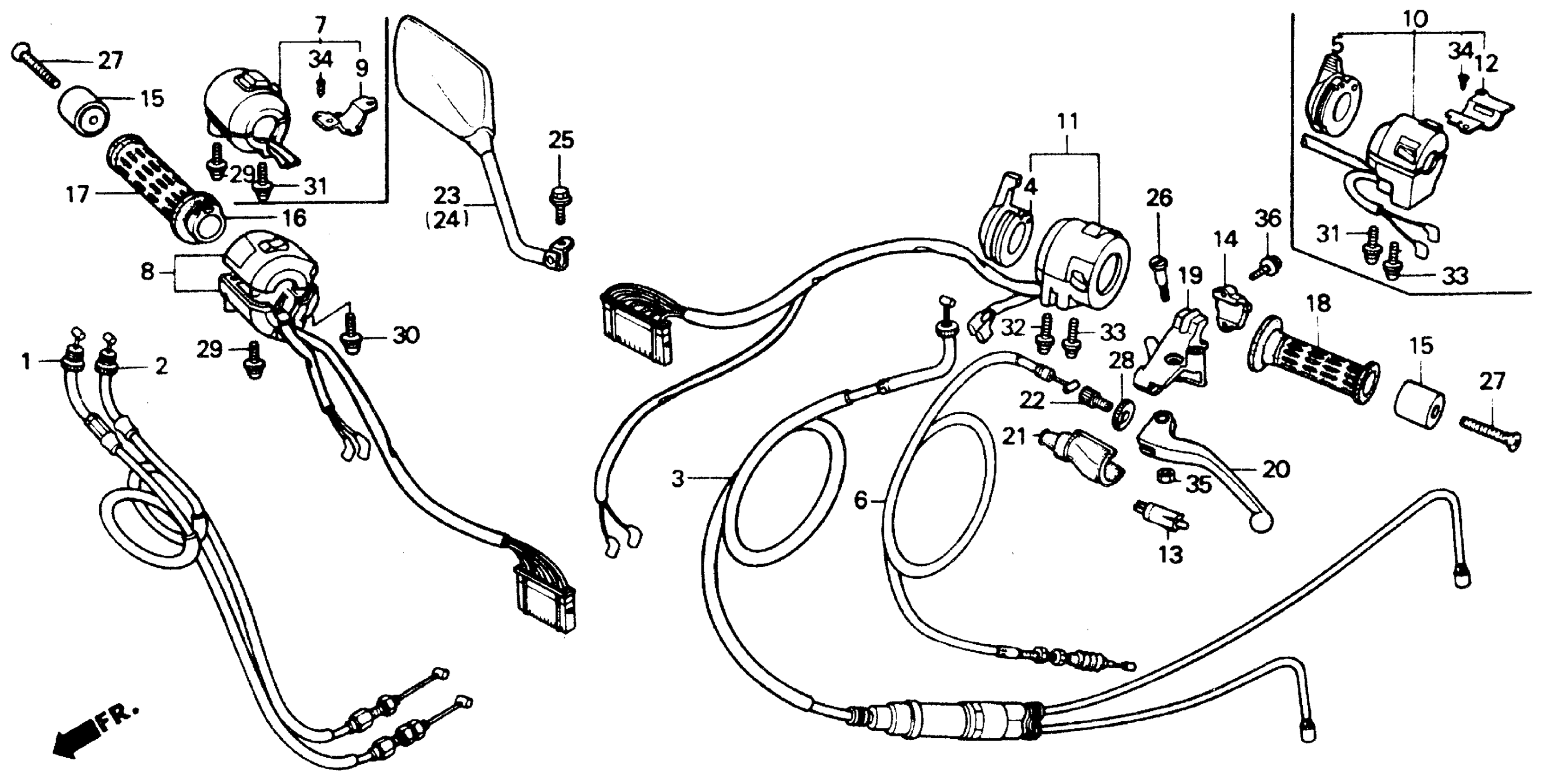

Honda VTR250A (90) VTR, JPN, VIN# JH2MC150-LM200001 TO JH2MC150-LM201140 SWITCH Diagram

CABLE A, THROTTLE

17910-KV0-010

Unavailable

CABLE B, THROTTLE

17920-KV0-000

Unavailable

CABLE, CHOKE

17950-KV0-840

Unavailable

LEVER, CHOKE

17962-KY4-900

Unavailable

CABLE, CLUTCH

22870-KBG-A00

Unavailable

CABLE, CLUTCH This part replaces 22870-KV0-000.

22870-KBG-A00

Unavailable

SWITCH ASSY., STARTER STOP

35130-KV0-840

Unavailable

SWITCH ASSY., TURN SIGNAL

35200-KV0-870

Unavailable

SWITCH, FR. LEVER

35330-413-003

$21.91

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

WEIGHT, HANDLE

53104-KV0-000

Unavailable

PIPE, THROTTLE GRIP

53141-422-000

$21.74

GRIP, R. HANDLE

53165-422-000

$15.95

GRIP, L. HANDLE (COO) This part replaces 53166-422-000.

53166-422-305

$13.19

BRACKET, HANDLEBAR

53172-MJ6-000

Unavailable

LEVER, L. HANDLEBAR

53178-KV0-670

$26.56

BOOT, HANDLEBAR

53180-425-010

$18.53

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

MIRROR, R.

88110-KV0-000

Unavailable

MIRROR, L.

88120-KV0-000

Unavailable

BOLT, SPECIAL FLANGE (10X16)

90102-MJ0-000

Unavailable

BOLT, L. HANDLEBAR PIVOT

90113-438-000

$7.58

SCREW, OVAL (6X45)

90191-KV0-000

Unavailable

NUT, FIXING

90321-MA6-750

$10.45

SCREW-WASHER (5X20)

93892-05020-07

$1.49

SCREW-WASHER (5X25)

93892-05025-07

$1.49

SCREW-WASHER (5X35)

93892-05035-07

$1.49

SCREW-WASHER (5X45)

93892-05045-07

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
