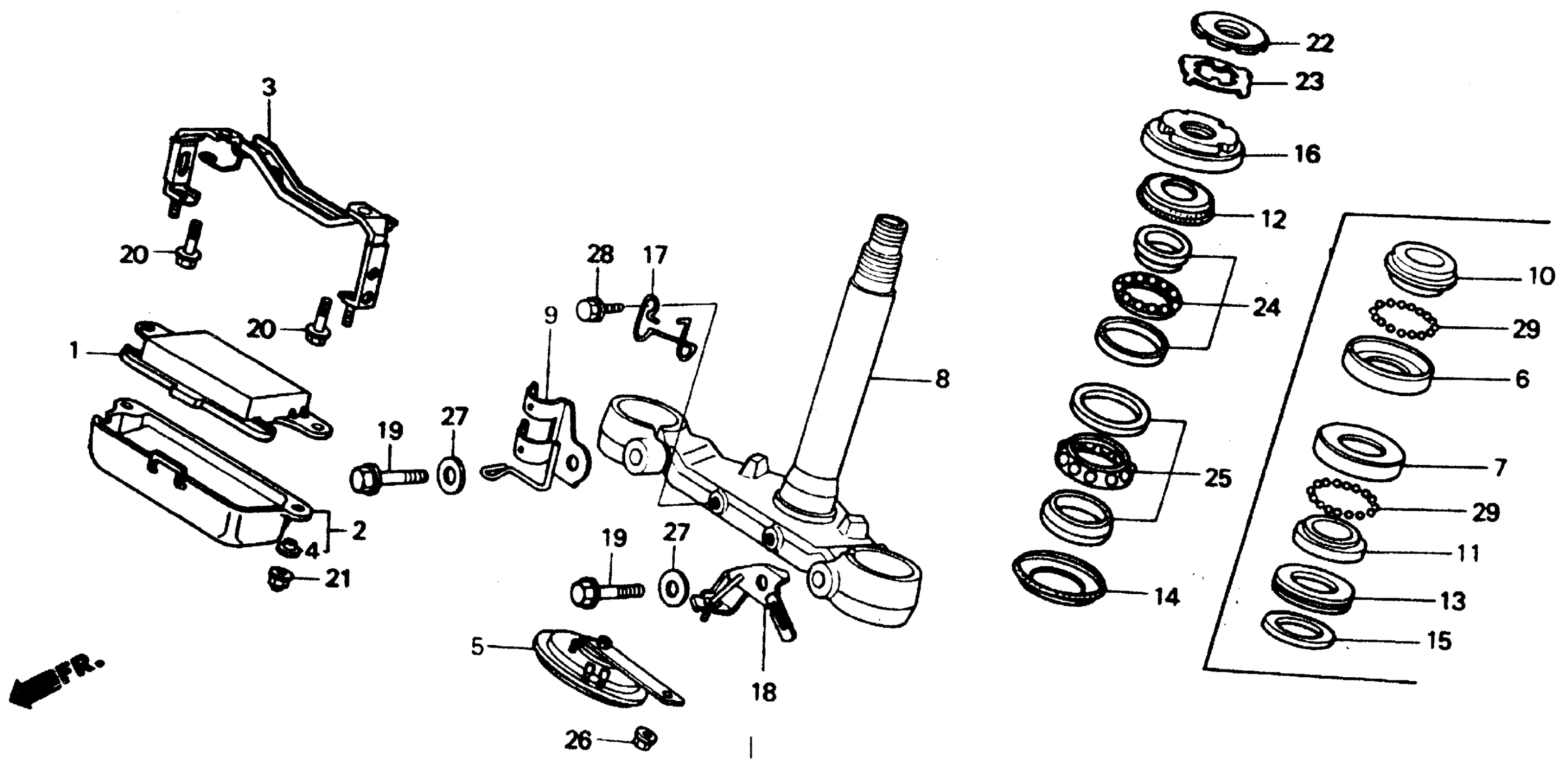

Honda VTR250A (90) VTR, JPN, VIN# JH2MC150-LM200001 TO JH2MC150-LM201140 STEERING STEM Diagram

BOX ASSY., JOINT

32450-KV0-000

Unavailable

COVER, JOINT BOX

32451-KV0-000

Unavailable

STAY, JOINT BOX

32452-KV0-000

Unavailable

COLLAR, TAILLIGHT SETTING

33715-GB0-900

$2.93

HORN (HIGH)

38110-KV0-008

Unavailable

STEM, STEERING

53200-KV0-000

Unavailable

CLAMP, SPEEDOMETER CABLE

53209-KV0-010

Unavailable

DUST SEAL, STEERING HEAD

53213-MB4-771

$12.13

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

THREAD, STEERING HEAD (UPPER)

53220-422-000

$32.73

STAY, HORN

64103-KV0-000

Unavailable

BOLT, FLANGE (10X40)

90103-KV0-700

Unavailable

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

NUT, FLANGE CAP (6MM)

90301-MA6-003

$2.33

THREAD, STEERING HEAD TOP (B)

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

BEARING, HEAD PIPE (UPPER)

91015-KT8-005

$36.57

BEARING, HEAD PIPE (LOWER)

91016-KT8-005

$36.57

NUT, FLANGE (8MM)

94050-08000

$1.49

WASHER, PLAIN (10MM)

94101-10700

$1.49

BOLT, FLANGE (6X12)

96001-06012-07

$1.72
