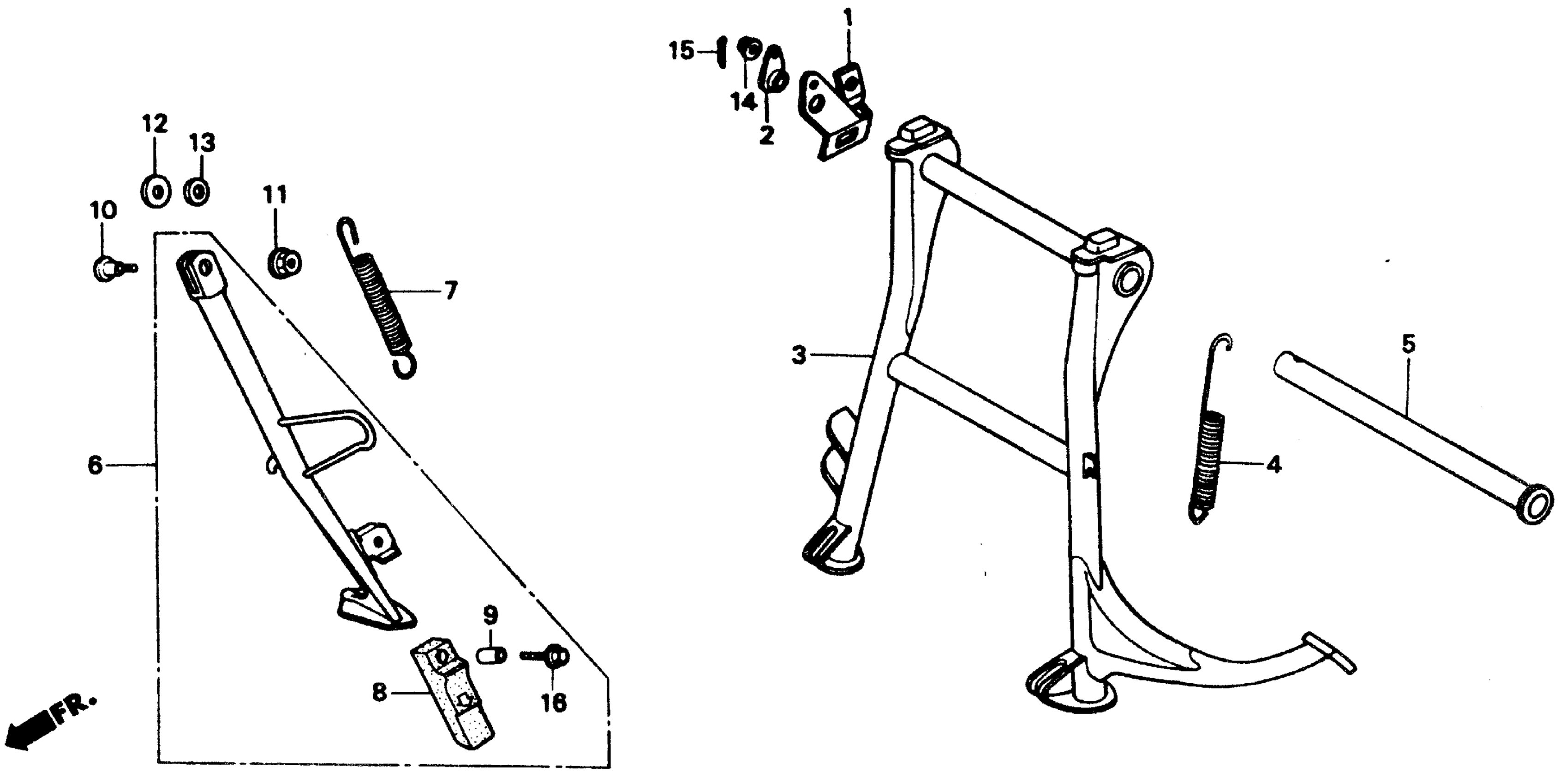

Honda VTR250A (90) VTR, JPN, VIN# JH2MC150-LM200001 TO JH2MC150-LM201140 STAND Diagram

GUIDE, OVERFLOW TUBE

50182-KM3-000

Unavailable

PLATE, TUBE GUIDE SETTING

50185-KV0-670

Unavailable

STAND, MAIN | (Optional).

50500-KV0-000

Unavailable

SPRING, MAIN STAND | (Optional).

50522-KM3-000

$11.09

PIPE, MAIN STAND PIVOT | (Optional).

50526-KV0-000

Unavailable

BAR ASSY., SIDE STAND

50540-KV0-670

Unavailable

SPRING, SIDE STAND

50541-KE8-000

$3.80

RUBBER, STAND

50548-356-700

$10.50

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

BOLT, SIDE STAND PIVOT

90108-ML7-610

Unavailable

NUT, SIDE STAND

90203-MF9-710

$3.67

WASHER, THRUST (24X13)

90501-MF9-710

Unavailable

WASHER, THRUST (24X10)

90502-MF9-710

Unavailable

NUT, FLANGE (6MM)

94050-06000

$1.49

PIN, SPLIT (2.5X30) | (Optional). This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM) | (Optional).

94201-25300

$1.49

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
