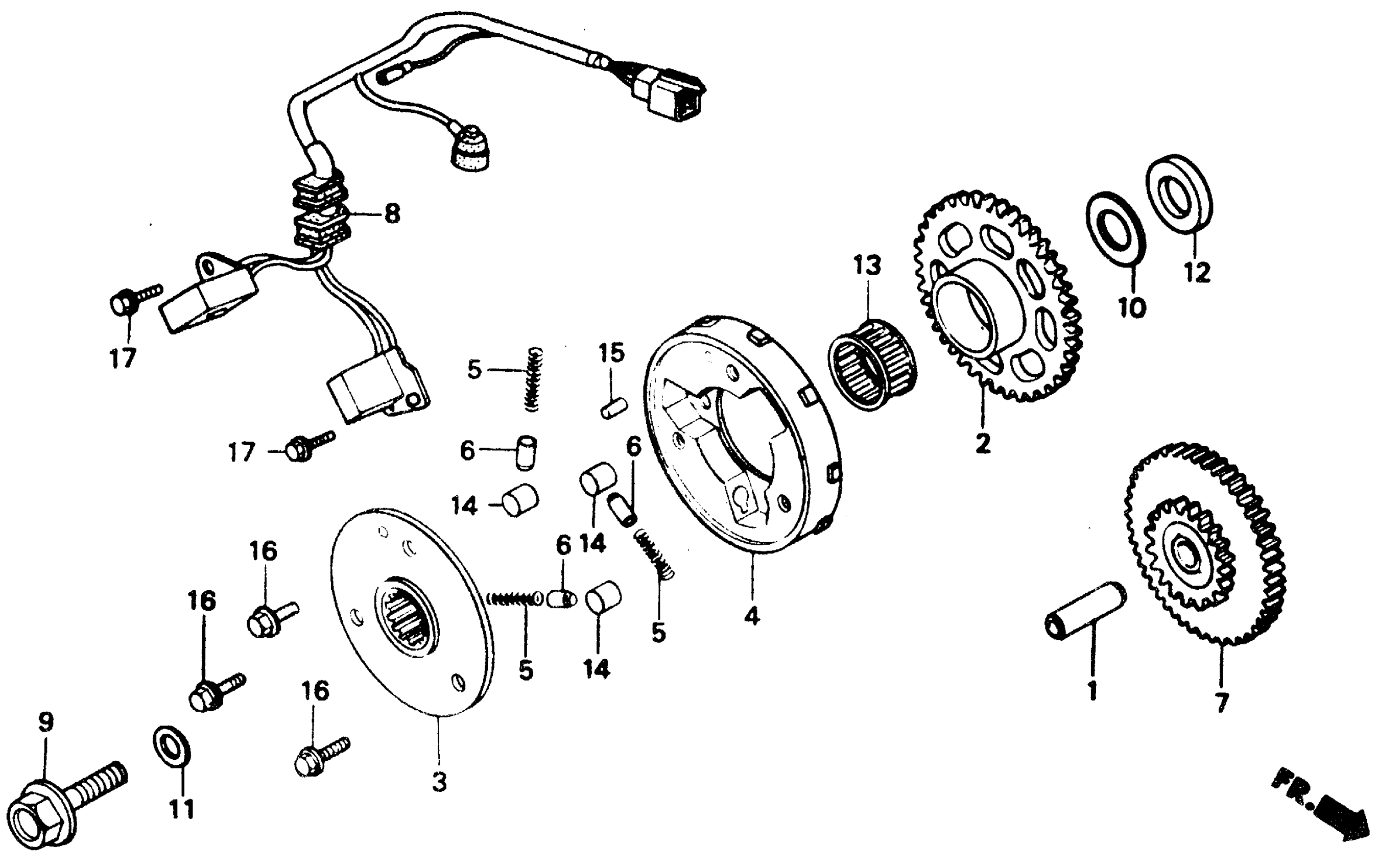

Honda VTR250A (90) VTR, JPN, VIN# JH2MC150-LM200001 TO JH2MC150-LM201140 PULSE GENERATOR Diagram

PIN, PISTON This part replaces 13111-GK8-000.

13111-GS7-000

$9.55

PIN, PISTON

13111-GS7-000

$9.55

PIN, PISTON This part replaces 13111-122-000.

13111-GS7-000

$9.55

GEAR, STARTING CLUTCH (44T)

28110-MJ8-000

Unavailable

FLANGE, STARTING CLUTCH

28115-KV0-720

Unavailable

CLUTCH, STARTING (OUTER)

28120-KV0-700

Unavailable

SPRING, STARTER CLUTCH ROLLER

28125-426-000

$2.61

CAP, STARTER CLUTCH ROLLER SPRING

28126-323-000

$5.05

GEAR, STARTER REDUCTION (82T/19T)

28130-KE8-000

Unavailable

GENERATOR ASSY., PULSE (TOYO)

30300-KV0-702

Unavailable

BOLT, UBS (10X35)

90014-ML0-000

Unavailable

WASHER, THRUST (20MM)

90402-KE8-000

Unavailable

WASHER (10X25X4)

90405-ML0-000

$6.95

COLLAR (20.2X6.5)

90452-KE8-000

Unavailable

BEARING, NEEDLE This part replaces 91022-KE8-003.

91022-MR8-003

Unavailable

BEARING, NEEDLE

91022-MR8-003

Unavailable

ROLLER (10.2X11.5)

91101-377-000

$3.01

PIN, SPRING (4X12)

94305-40122

Unavailable

BOLT, FLANGE (8X14)

95701-08014-08

$1.80

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
