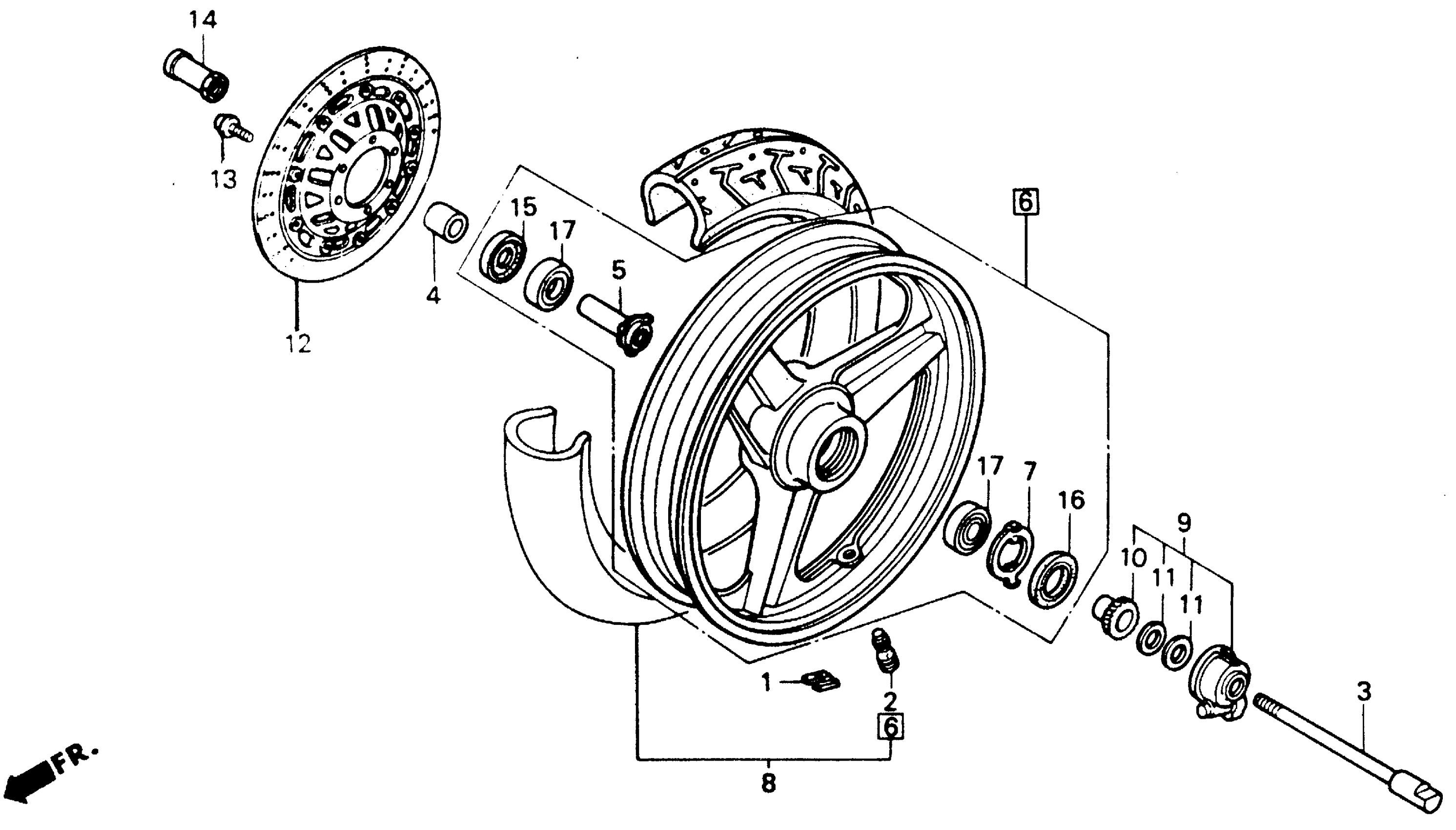

Honda VTR250A (90) VTR, JPN, VIN# JH2MC150-LM200001 TO JH2MC150-LM201140 FRONT WHEEL 90 Diagram

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

WEIGHT, BALANCE (10) WEIGHT, BALANCE (20G)

42704-MCF-D60

$12.74

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

WEIGHT, BALANCE (20) WEIGHT, BALANCE (30G)

42705-MCF-D60

$15.38

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

WEIGHT, BALANCE (30)

42706-MCF-D60

$14.48

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

AXLE, FR. WHEEL

44301-KT7-000

Unavailable

COLLAR, FR. WHEEL SIDE

44311-MF2-000

Unavailable

COLLAR, FR. AXLE DISTANCE

44620-MB0-000

Unavailable

WHEEL SET, FR. *NH196* (ROSS WHITE)

44650-KV0-306ZA

Unavailable

RETAINER, GEAR BOX

44680-410-000

$5.80

TIRE ASSY., FR. (100/80-17) (52S K115F) (DUNLOP) (NOT AVAILABLE)

44710-KV0-701

Unavailable

BOX ASSY., SPEEDOMETER GEAR

44800-MB2-672

Unavailable

GEAR, SPEEDOMETER (26T)

44806-MB2-671

Unavailable

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

DISK, FR.

45120-KV0-841

Unavailable

BOLT, DISK (8X22)

90105-KV0-700

Unavailable

NUT, AXLE (12MM)

90305-MJ1-670

Unavailable

DUST SEAL (22X42X7)

91252-MC7-003

$7.46

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
