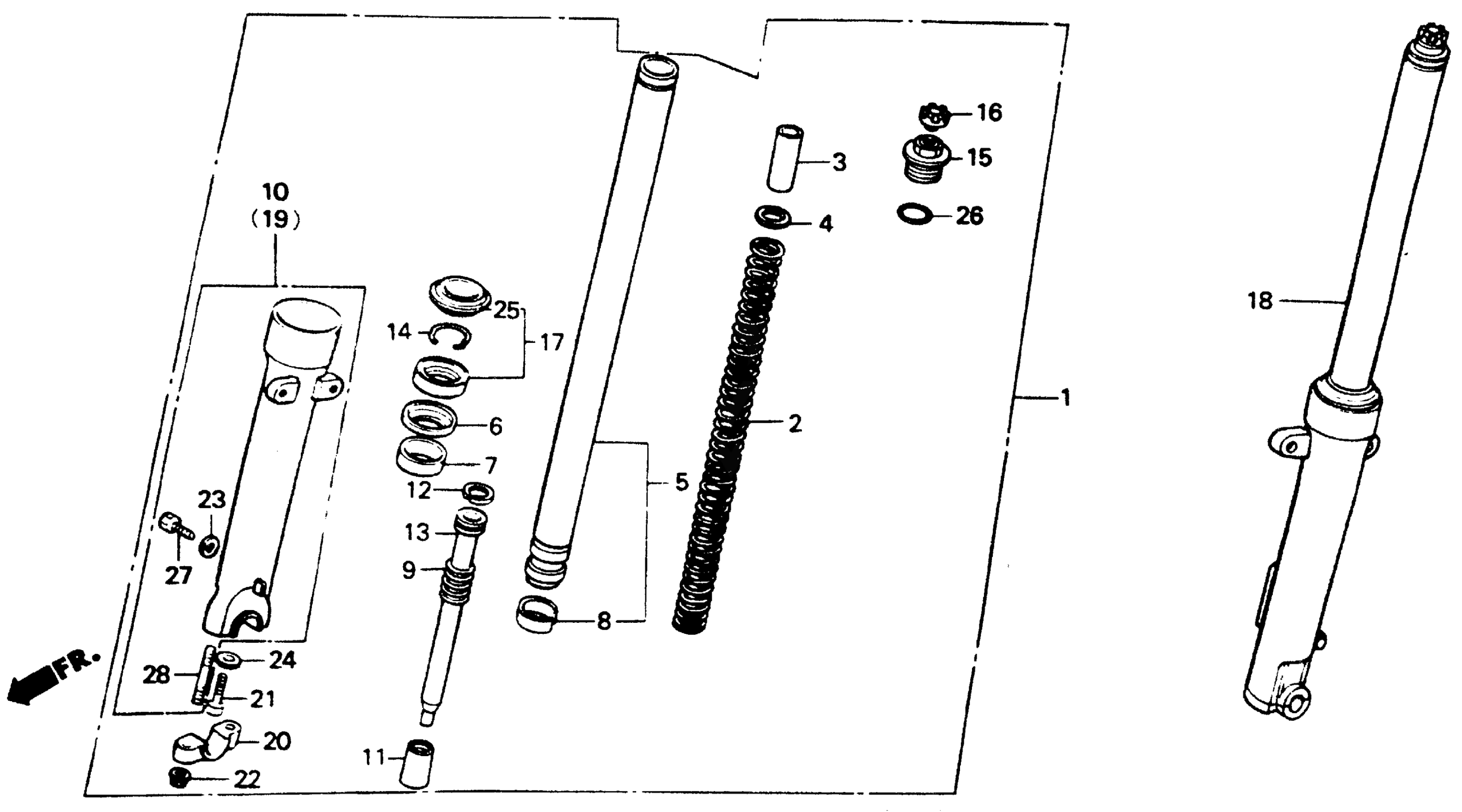

Honda VTR250A (90) VTR, JPN, VIN# JH2MC150-LM200001 TO JH2MC150-LM201140 FRONT FORK 90 Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-KV0-841

Unavailable

2

SPRING, FR. FORK (SHOWA)

51401-KV0-671

Unavailable

3

COLLAR, SPRING

51402-KV0-003

Unavailable

4

PLATE, SPRING JOINT

51403-430-000

Unavailable

5

PIPE, FR. FORK

51410-KV0-671

Unavailable

6

RING, BACK-UP

51412-422-003

$7.49

7

BUSH, GUIDE This part replaces 51414-469-003.

51414-MBV-711

$19.63

8

BUSH, SLIDER This part replaces 51415-KL4-951.

51415-MBV-711

$17.77

9

SPRING, REBOUND (NOT AVAILABLE)

51416-461-003

$5.80

10

CASE, R. (LOWER)

51421-KV0-701

Unavailable

11

PIECE, OIL LOCK

51432-MJ6-003

$24.11

12

RING, PISTON

51437-461-003

$9.59

13

PIPE, SEAT

51440-KV0-841

Unavailable

14

RING, OIL SEAL STOPPER

51447-KL4-951

$4.03

15

BOLT ASSY., FR. FORK This part replaces 51450-KV0-003.

51450-KE8-003

Unavailable

16

CAP, AIR VALVE

51457-KM4-003

Unavailable

17

SEAL SET, FR. FORK

51490-KBH-305

$27.17

17

SEAL SET, FR. FORK This part replaces 51490-MA6-315.

51490-KBH-305

$27.17

18

FORK ASSY., L. FR. (SHOWA)

51500-KV0-841

Unavailable

19

CASE, L. (LOWER)

51521-KV0-701

Unavailable

20

HOLDER, AXLE

51634-MJ0-003

Unavailable

21

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

22

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

22

NUT, FLANGE (8MM)

90309-428-731

$3.35

23

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

24

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

25

DUST SEAL (35MM)

91254-434-003

$13.96

26

O-RING (25.7X2.8)

91356-428-003

$3.60

27

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

27

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

28

BOLT 2, STUD (8X32)

92900-08032-3E

Unavailable
