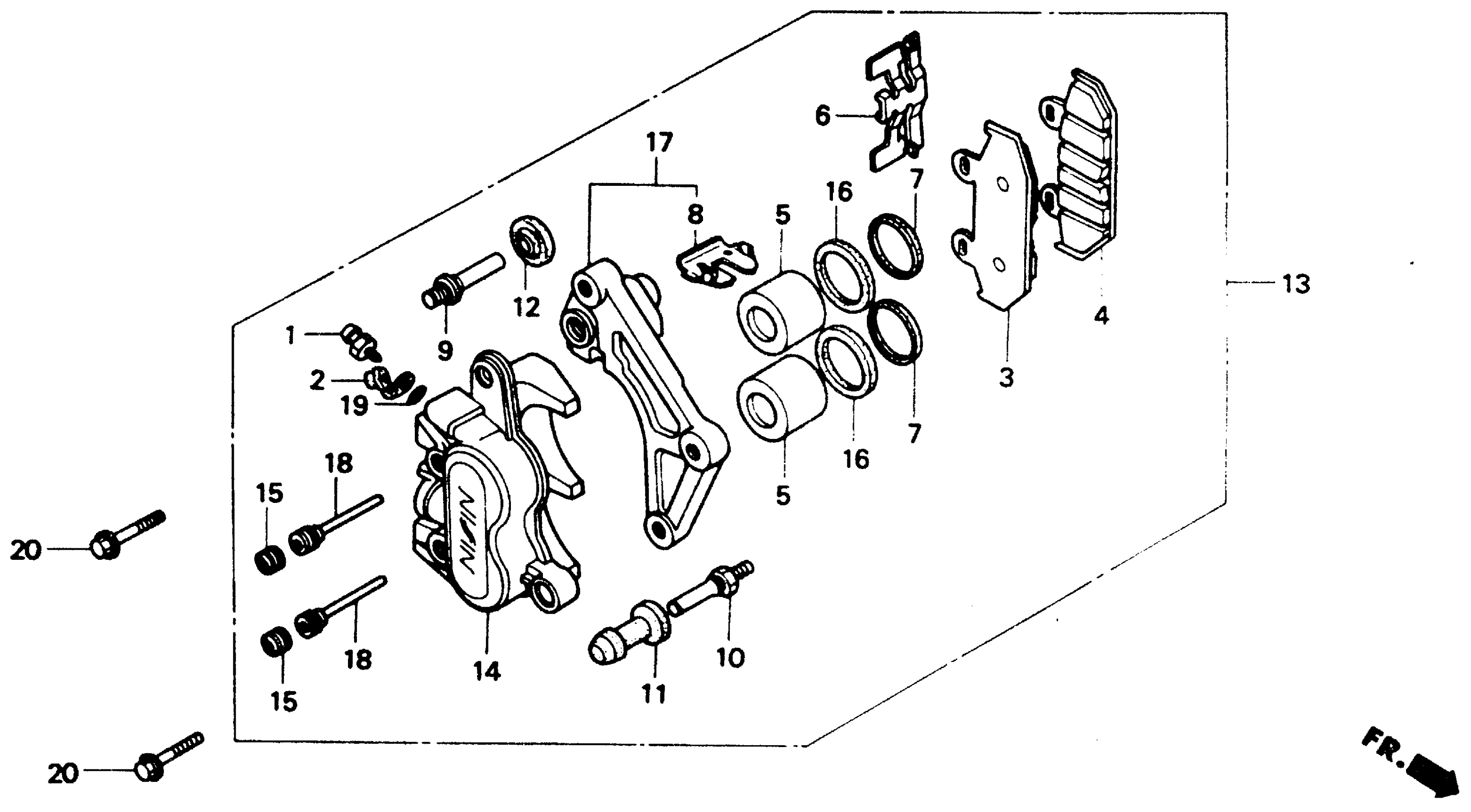

Honda VTR250A (90) VTR, JPN, VIN# JH2MC150-LM200001 TO JH2MC150-LM201140 FR. BRAKE CALIPER 90 Diagram

BRAKE PAD KIT

451A0-KV0-670

Unavailable

SCREW, BLEEDER

43352-MG9-006

$5.44

CAP, BLEEDER This part replaces 43353-MG9-006.

43353-461-771

$5.05

CAP, BLEEDER This part replaces 43353-443-761.

43353-461-771

$5.05

CAP, BLEEDER

43353-461-771

$5.05

PAD, FR. (NISSIN) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-KV0-701

Unavailable

PAD B, FR. (JPM27FF) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45106-KV0-841

Unavailable

PISTON

45107-MR1-671

Unavailable

SPRING, PAD (NISSIN)

45108-KV0-701

$4.85

DUST SEAL

45109-166-006

$6.41

RETAINER

45112-KM1-006

Unavailable

BOLT A, BOLT

45131-HA5-672

$15.44

PIN, BOLT

45131-166-016

$7.63

BUSH, PIN

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER ASSY., R. FR. (NISSIN)

45200-KV0-841

Unavailable

BODY, R. FR. CALIPER (NISSIN)

45201-KV0-841

Unavailable

PLUG, PIN

45203-MG3-016

$5.12

SEAL, PISTON

45209-166-006

$8.64

BRACKET, R. (NISSIN)

45210-KV0-701

Unavailable

PIN, HANGER

45215-KA3-732

$11.52

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

$3.15

BOLT, FLANGE (8X32)

96400-08032-07

$1.79
