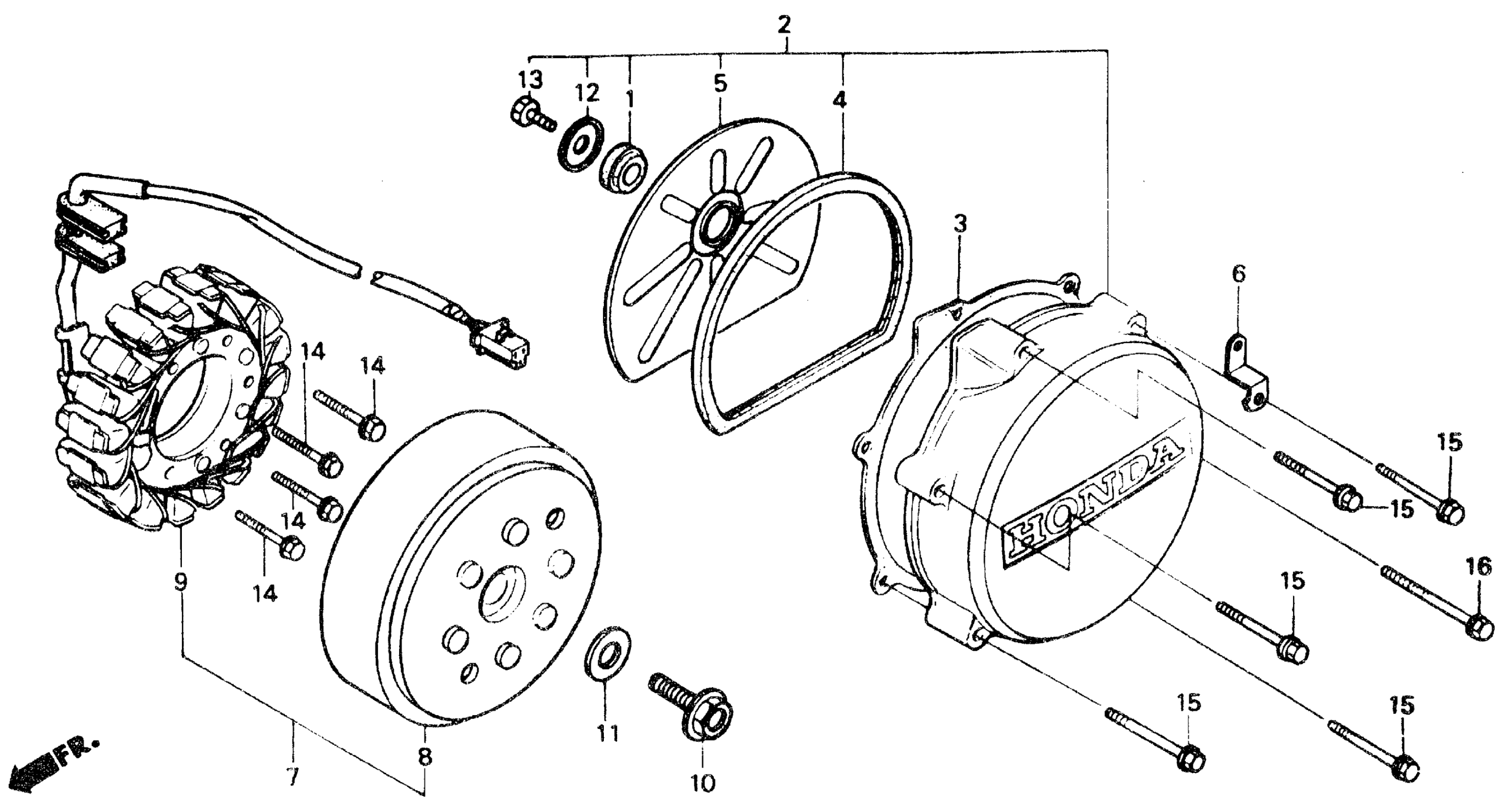

Honda VTR250A (90) VTR, JPN, VIN# JH2MC150-LM200001 TO JH2MC150-LM201140 ALTERNATOR Diagram

RUBBER A, R. COVER DAMPER

11335-ML7-300

$9.21

COVER, ALTERNATOR This part replaces 11635-KV0-000.

11635-KV0-720

Unavailable

GASKET, ALTERNATOR COVER

11636-KBV-000

Unavailable

GASKET, ALTERNATOR COVER This part replaces 11636-KE8-000.

11636-KBV-000

Unavailable

GASKET, ALTERNATOR COVER This part replaces 11636-KE8-306.

11636-KBV-000

Unavailable

RUBBER, DAMPER

11637-KV0-300

Unavailable

PLATE (INNER)

11638-KV0-300

Unavailable

ALTERNATOR ASSY., FLYWHEEL TYPE (DENSO)

31100-KV0-701

Unavailable

FLYWHEEL (DENSO)

31110-KV0-701

Unavailable

STATOR (DENSO)

31120-KBV-004

Unavailable

STATOR (DENSO) This part replaces 31120-KV0-004.

31120-KBV-004

Unavailable

BOLT, UBS (10X35)

90014-ML0-000

Unavailable

WASHER (10X25X4)

90405-ML0-000

$6.95

WASHER, SPECIAL (6MM)

90406-ML7-000

$2.31

BOLT, HEX. (6X10)

93301-06010-0A

Unavailable

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

BOLT, FLANGE (6X40)

96001-06040-07

$1.49

BOLT, FLANGE (6X60)

96001-06060-07

$2.07
