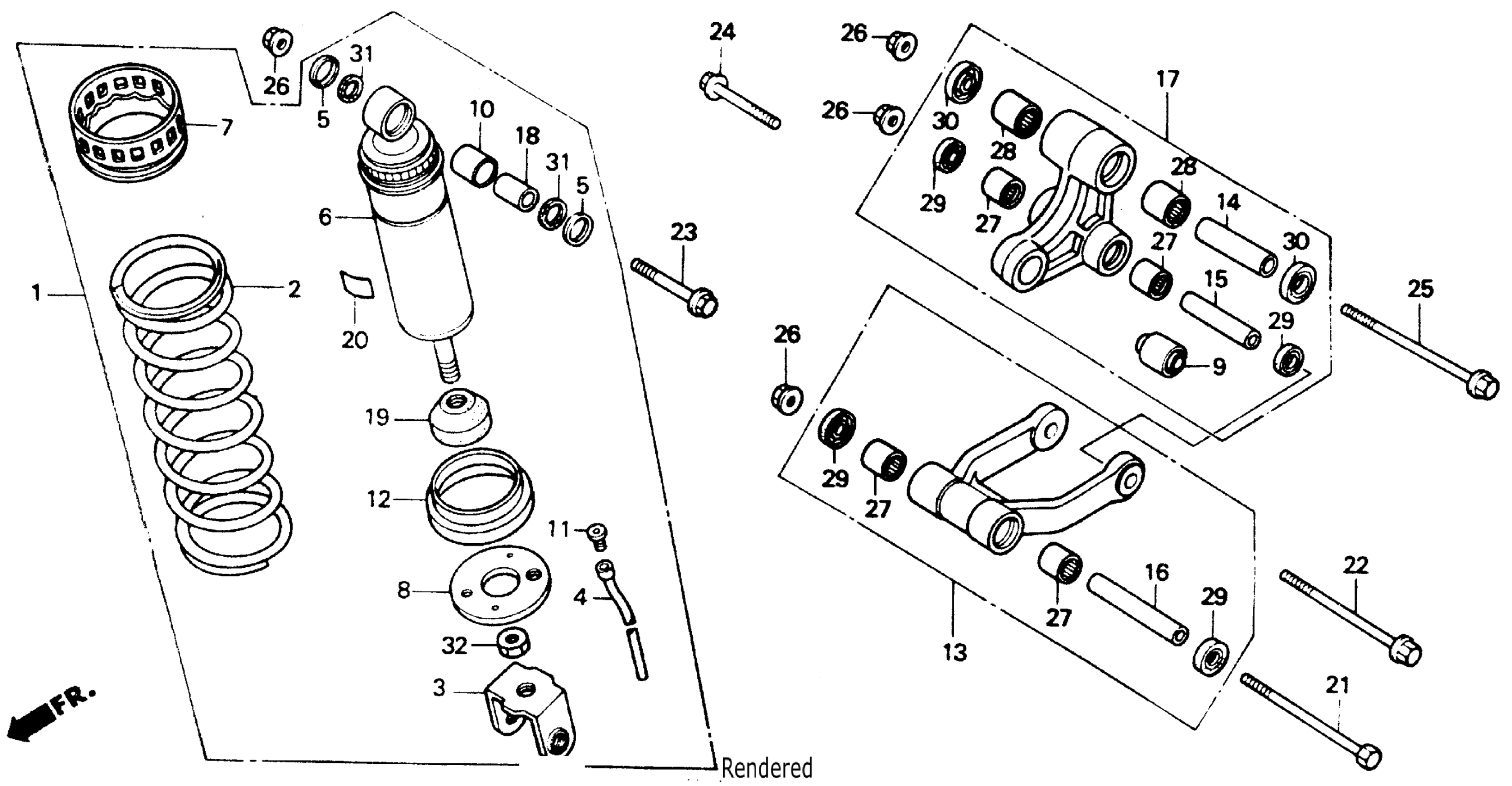

Honda VTR250A (89) VTR, JPN, VIN# JH2MC150-KM100001 TO JH2MC150-KM103810 SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (SHOWA) (NOT AVAILABLE)

52400-KV0-671

Unavailable

2

SPRING, RR. SHOCK ABSORBER (SHOWA)

52401-KV0-671

Unavailable

3

METAL (LOWER) (NOT AVAILABLE)

52403-KB7-003

Unavailable

4

PIPE, DRAIN

52405-KM9-003

Unavailable

5

CAP, DUST SEAL

52406-KB7-003

$6.48

6

DAMPER, RR.

52410-KV0-671

Unavailable

7

ADJUSTER, SPRING (SHOWA)

52422-KV0-003

Unavailable

8

STOPPER, SPRING SEAT (SHOWA)

52424-KV0-003

Unavailable

9

BUSH, SHOCK ABSORBER (LOWER)

52451-MA0-000

$15.12

10

BUSH, SHOCK ABSORBER (UPPER)

52452-KB7-003

$15.55

11

JOINT, PIPE

52456-KB7-003

Unavailable

12

SEAT C, SPRING (SHOWA)

52459-ML7-691

$16.10

13

ROD ASSY., SHOCK CONNECTING

52460-KV0-000

Unavailable

14

COLLAR, CUSHION ARM PIVOT

52463-KM3-000

Unavailable

15

COLLAR, CONNECTING ROD (LOWER)

52463-MB6-000

Unavailable

16

COLLAR, CUSHION ARM

52463-ML0-000

Unavailable

17

ARM ASSY., SHOCK ABSORBER

52470-KV0-000

Unavailable

18

COLLAR, BUSH

52486-ML7-003

Unavailable

19

RUBBER, STOPPER

52517-KT7-751

$10.62

20

LABEL, RR. DAMPER This part replaces 87516-KY7-911.

87516-MBL-610

$4.31

20

LABEL, RR. DAMPER This part replaces 87516-ML6-771.

87516-MBL-610

$4.31

21

BOLT, HEX. (10X110)

90102-HA8-000

Unavailable

22

BOLT, FLANGE (10X100)

90107-KV0-700

Unavailable

23

BOLT, FLANGE (10X56) This part replaces 90116-KV0-700.

90153-HA6-000

Unavailable

24

BOLT, FLANGE (10X47)

90153-KV0-700

Unavailable

25

BOLT, FLANGE (10X95)

90154-KV0-700

$10.34

26

NUT, U (10MM) This part replaces 90304-KV0-701.

90304-VM0-770

$3.56

26

NUT, U (10MM)

90304-VM0-770

$3.56

27

BEARING, NEEDLE

91072-MB2-701

Unavailable

28

BEARING, NEEDLE (17X24X25)

91072-MJ0-003

$26.62

29

DUST SEAL, CONNECTING ROD PIVOT

91262-MB2-005

$3.83

30

OIL SEAL (17X27X5) (KOYO)

91202-HC5-005

$3.56

30

OIL SEAL (17X27X5) (KOYO) This part replaces 91262-MG7-005.

91202-HC5-005

$3.56

31

DUST SEAL B

91351-KB7-003

$3.49

32

NUT, HEX. (14MM)

94031-14080

$1.79
