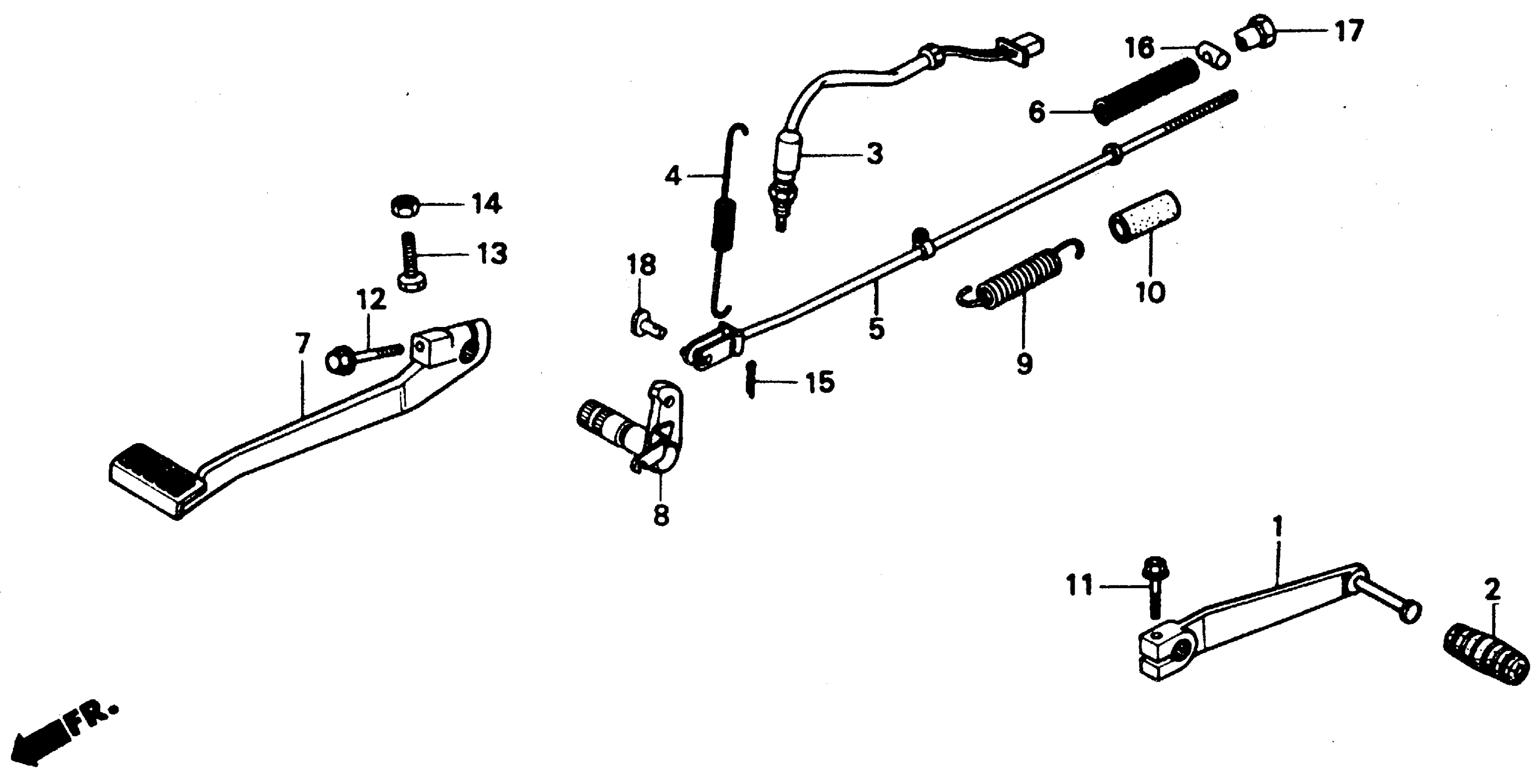

Honda VTR250A (89) VTR, JPN, VIN# JH2MC150-KM100001 TO JH2MC150-KM103810 PEDAL Diagram

PEDAL, GEARSHIFT

24701-KV0-000

Unavailable

RUBBER, CHANGE PEDAL

24781-KR3-770

$3.39

SWITCH ASSY., RR. STOP This part replaces 35350-GM2-010.

35350-MK3-405

$18.15

SPRING, STOP SWITCH

35357-KE4-730

Unavailable

SPRING, STOP SWITCH This part replaces 35357-425-610.

35357-KE4-730

Unavailable

ROD, RR. BRAKE

43451-KV0-000

Unavailable

SPRING, BRAKE ROD

43472-460-840

Unavailable

PEDAL, BRAKE

46500-KM3-000

Unavailable

SPINDLE, RR. BRAKE

46510-KV0-000

Unavailable

SPRING, BRAKE PEDAL

46514-KM3-000

Unavailable

TUBE, BRAKE PEDAL SPRING

46514-MK4-000

Unavailable

BOLT, SPECIAL (6X18)

90113-KV0-700

Unavailable

BOLT, SPECIAL (6X35)

90115-KV0-700

Unavailable

BOLT, HEX. (5X18)

92018-05018-0A

Unavailable

NUT, HEX. (5MM)

94001-05000-0S

$2.74

PIN, COTTER (1.6X12)

94201-16120

$1.49

JOINT, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

PIN B, BRAKE ROD JOINT

95015-52000

$2.03
