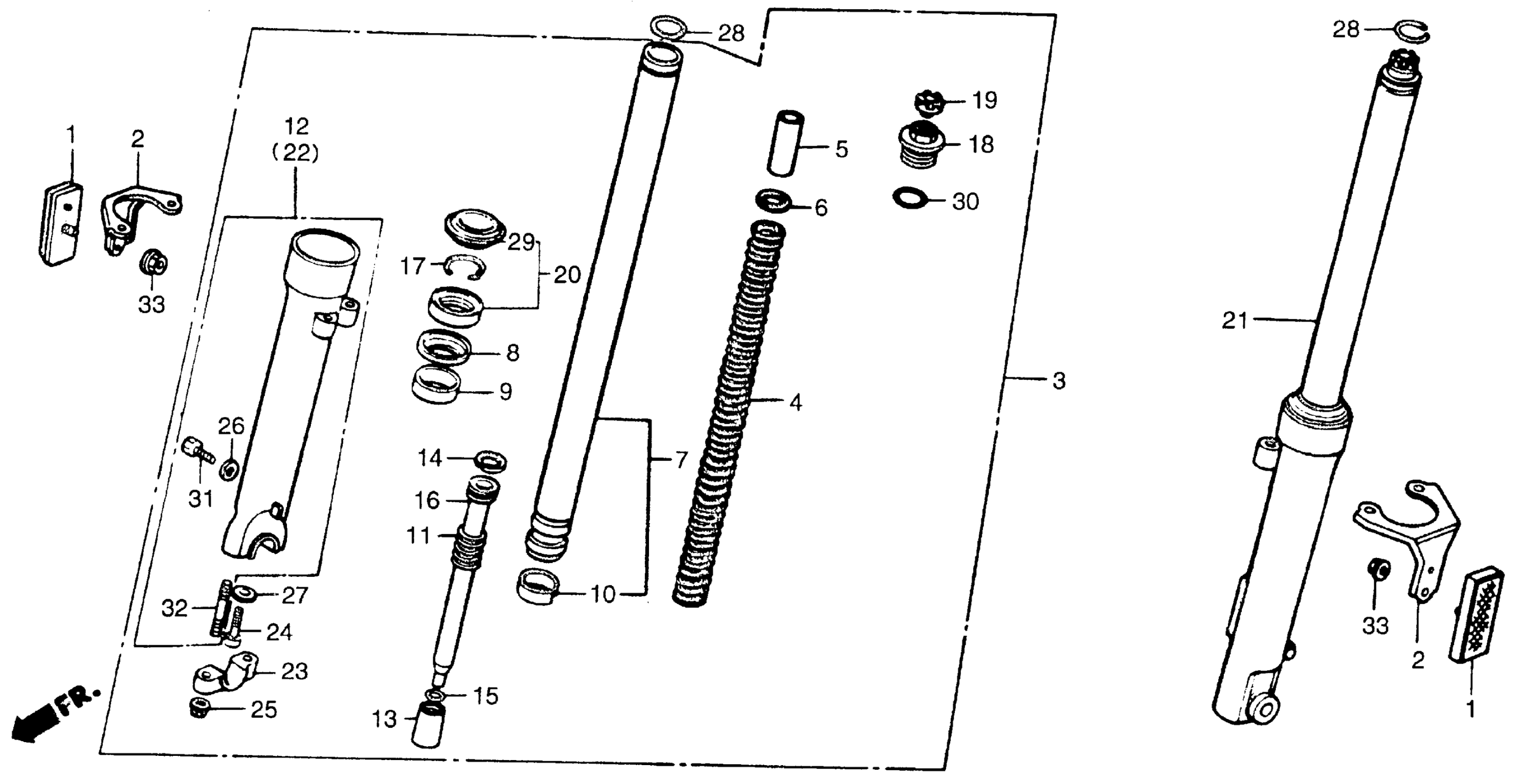

Honda VTR250A (89) VTR, JPN, VIN# JH2MC150-KM100001 TO JH2MC150-KM103810 FRONT FORK 88-89 Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-ME9-672.

33741-ME9-673

$15.47

1

REFLECTOR, FR. REFLEX

33741-ME9-673

$15.47

2

BASE, FR. SIDE REFLECTOR

33751-KV0-670

Unavailable

3

FORK ASSY., R. FR. (SHOWA)

51400-KV0-671

Unavailable

4

SPRING, FR. FORK (SHOWA)

51401-KV0-671

Unavailable

5

COLLAR, SPRING

51402-KV0-003

Unavailable

6

PLATE, SPRING JOINT

51403-430-000

Unavailable

7

PIPE, FR. FORK

51410-KV0-671

Unavailable

8

RING, BACK-UP

51412-422-003

$6.96

9

BUSH, GUIDE This part replaces 51414-469-003.

51414-MBV-711

$17.62

10

BUSH, SLIDER This part replaces 51415-KL4-951.

51415-MBV-711

$15.95

11

SPRING, REBOUND (NOT AVAILABLE)

51416-461-003

$5.81

12

CASE, R. (LOWER)

51421-KM3-003

Unavailable

13

PIECE, OIL LOCK

51432-MK4-003

Unavailable

14

RING, PISTON

51437-461-003

$8.61

15

RING, PISTON STOPPER

51439-340-300

Unavailable

16

PIPE, SEAT (NOT AVAILABLE)

51440-KV0-671

Unavailable

17

RING, OIL SEAL STOPPER

51447-KL4-951

$3.74

18

BOLT ASSY., FR. FORK This part replaces 51450-KV0-003.

51450-KE8-003

Unavailable

19

CAP, AIR VALVE

51457-KM4-003

Unavailable

20

SEAL SET, FR. FORK

51490-KBH-305

$24.41

20

SEAL SET, FR. FORK This part replaces 51490-MA6-315.

51490-KBH-305

$24.41

21

FORK ASSY., L. FR. (SHOWA)

51500-KV0-671

Unavailable

22

CASE, L. (LOWER)

51521-KM3-003

Unavailable

23

HOLDER 1B, FR. FORK AXLE (NOT AVAILABLE) This part replaces 51634-KM3-003.

95014-41100

Unavailable

24

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$4.77

25

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.12

25

NUT, FLANGE (8MM)

90309-428-731

$3.12

26

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.25

27

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

28

RING, SNAP

90601-KM3-000

Unavailable

29

DUST SEAL (35MM)

91254-434-003

$12.53

30

O-RING (25.7X2.8)

91356-428-003

$3.35

31

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.25

31

BOLT, HEX. (6X8)

92101-06008-0A

$1.25

32

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.45

32

BOLT, STUD (8X50)

92900-08028-3B

$1.45

33

NUT, FLANGE (5MM)

94050-05080

$0.33
