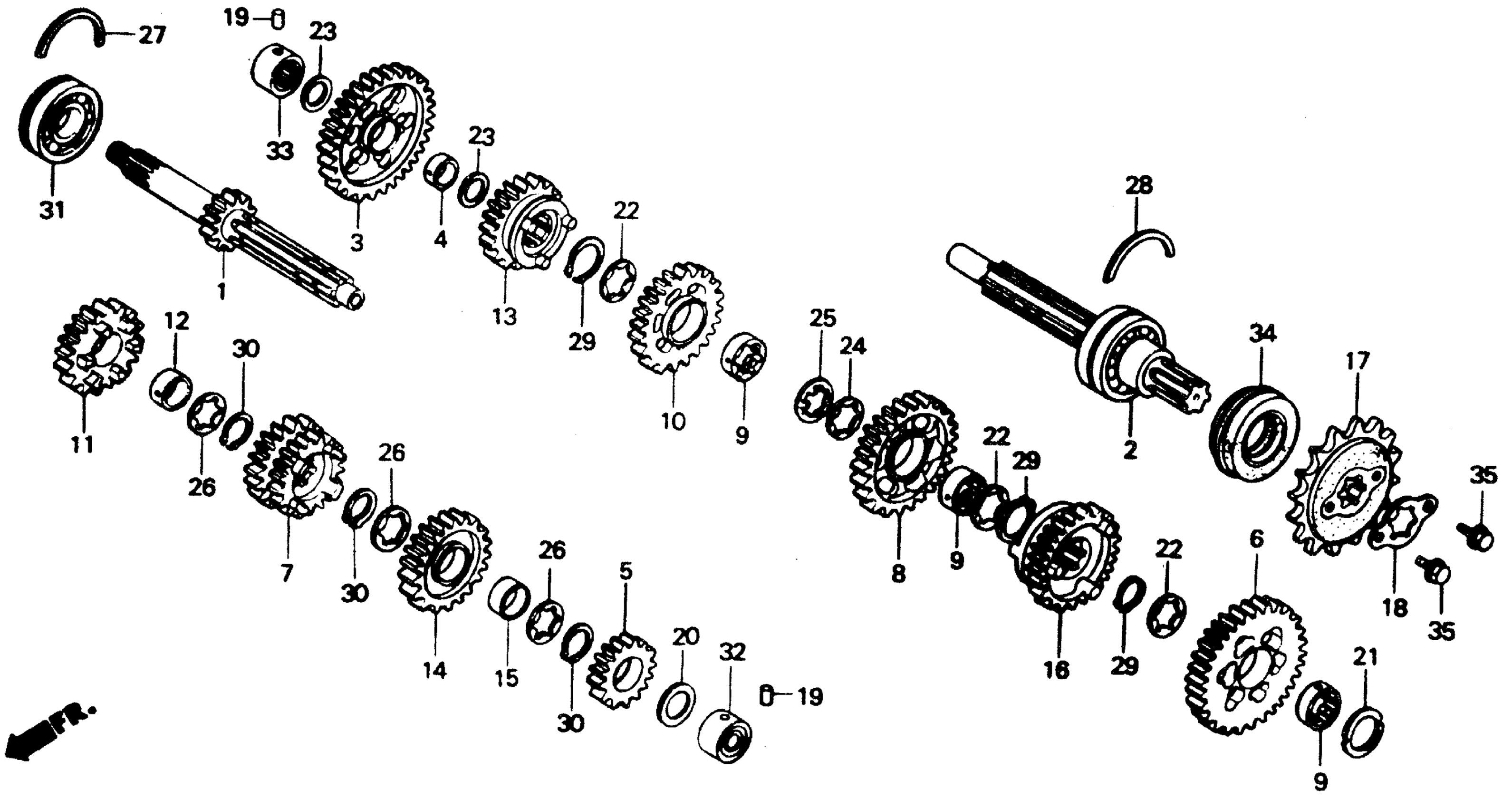

Honda VTR250A (88) INTERCEPTOR VTR, JPN, VIN# JH2MC150-JM000004 TO JH2MC150-JM001554 TRANSMISSION 88 Diagram

#

Description
Price

1

MAINSHAFT

23210-KV0-000

Unavailable

2

COUNTERSHAFT

23220-KV0-700

Unavailable

3

GEAR, COUNTERSHAFT FIRST (41T)

23421-KE8-000

Unavailable

4

COLLAR (20X9)

23422-KM3-010

Unavailable

5

GEAR, MAINSHAFT SECOND (20T)

23431-KE8-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (37T)

23441-KE8-000

Unavailable

7

GEAR, MAINSHAFT THIRD & FOURTH (23T,25T)

23451-KE8-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD (34T)

23461-KE8-000

Unavailable

9

COLLAR, SPLINE (25X8)

23462-KE8-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (31T)

23481-KE8-000

Unavailable

11

GEAR, MAINSHAFT FIFTH (27T)

23491-KE8-000

Unavailable

12

COLLAR (22X9)

23495-KE8-000

Unavailable

13

GEAR, COUNTERSHAFT FIFTH (29T)

23501-KE8-000

Unavailable

14

GEAR, MAINSHAFT SIXTH (29T)

23511-KE8-000

Unavailable

15

COLLAR, SPLINE (22X10)

23512-KE8-000

Unavailable

16

GEAR, COUNTERSHAFT SIXTH (28T)

23521-KV0-000

Unavailable

17

SPROCKET, DRIVE (14T)

23801-KV0-P10

$38.87

17

SPROCKET, DRIVE (14T) This part replaces 23801-KV0-010.

23801-KV0-P10

$38.87

18

PLATE, FIXING

23811-MJ8-000

Unavailable

19

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

20

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

21

WASHER, THRUST (25.2X34) (NOT AVAILABLE)

90446-430-000

Unavailable

22

WASHER, SPLINE (25MM)

90451-KE8-000

Unavailable

23

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

24

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

25

WASHER, LOCK (25MM)

90462-323-000

$3.77

26

WASHER, SPLINE (22MM)

90464-KE8-000

$4.20

27

RING, BEARING SETTING (56MM)

90601-MA6-000

$2.97

28

SET-RING (52MM)

90601-ML0-000

Unavailable

29

CIRCLIP (25MM)

90601-107-000

$3.74

30

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

31

BEARING, RADIAL BALL (63/22) (NOT AVAILABLE)

91004-MA6-003

Unavailable

32

BEARING, NEEDLE (17MM)

91021-KE8-003

Unavailable

33

BEARING, NEEDLE (20MM) (NTN) This part replaces 91022-MA6-003.

91022-MJE-DB1

$45.02

34

OIL SEAL (34X52X13)

91205-KE8-003

Unavailable

35

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
