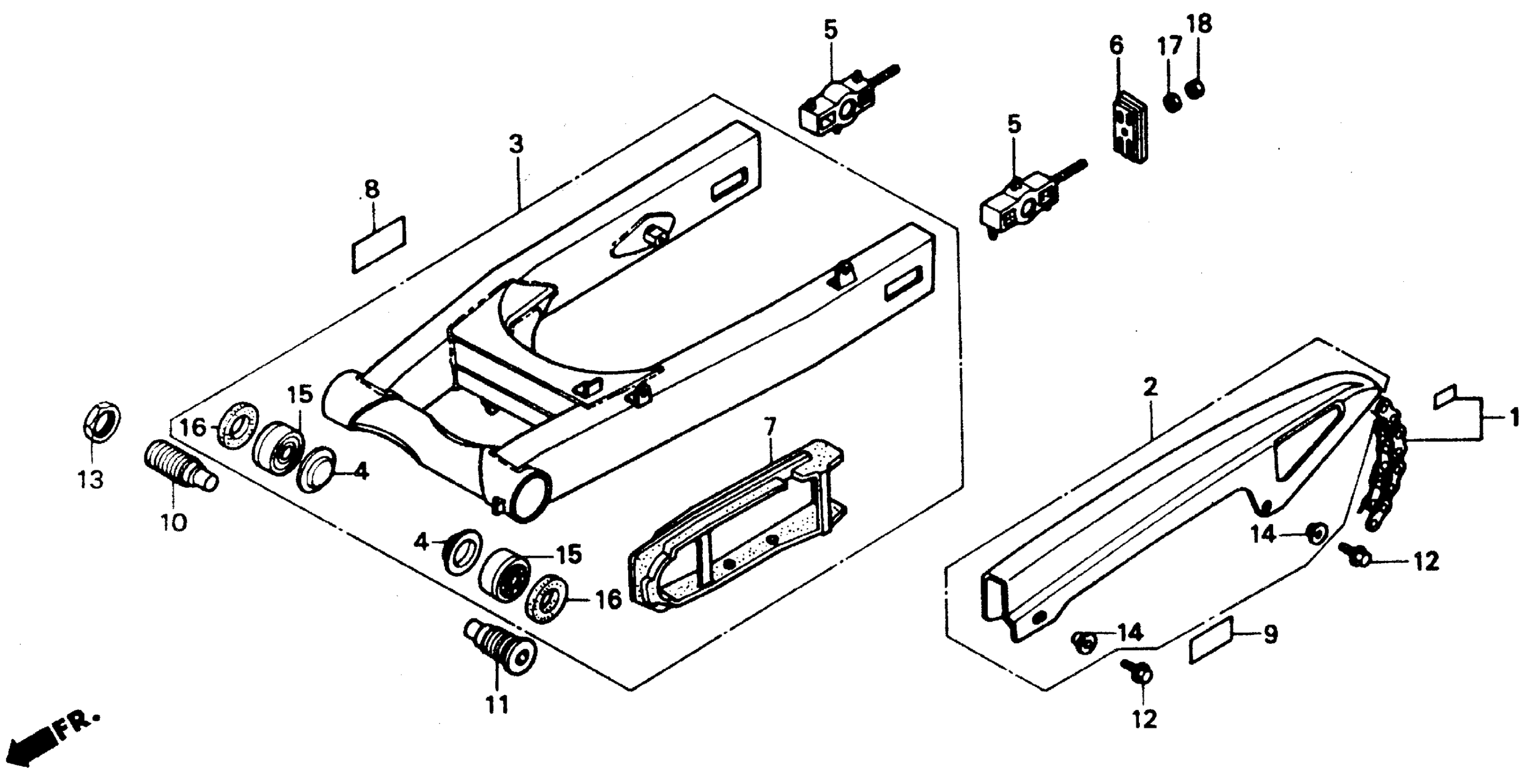

Honda VTR250A (88) INTERCEPTOR VTR, JPN, VIN# JH2MC150-JM000004 TO JH2MC150-JM001554 SWINGARM Diagram

CHAIN SET, DRIVE (DID520V.4-104L) (DAIDO)

405A3-KV0-671

Unavailable

CHAIN SET, DRIVE (RK520SMO-H-104L) (TAKASAGO) (NOT AVAILABLE)

405A3-KV0-672

Unavailable

CASE, DRIVE CHAIN

40510-KV0-000

Unavailable

SWINGARM ASSY. *NH146M* (ACCURATE SILVER METALLIC)

52100-KV0-000ZA

Unavailable

HOLDER, RR. SWINGARM GREASE

52112-MA1-300

$7.04

COLLAR, CHAIN TENSIONER

52120-KV0-700

Unavailable

PLATE, CHAIN TENSIONER

52121-MJ0-000

$22.28

SLIDER, CHAIN

52170-KV0-000

Unavailable

MARK, TIRE CAUTION

87505-KV0-670

Unavailable

MARK, DRIVE CHAIN CAUTION

87507-KV0-670

Unavailable

BOLT, R. RR. SWINGARM PIVOT

90121-KM3-000

Unavailable

BOLT, L. SWINGARM PIVOT

90122-KM3-000

Unavailable

BOLT, FLANGE (6X12)

90154-ML0-000

$2.56

NUT, PIVOT LOCK

90301-KE8-000

Unavailable

WASHER (6X20)

90512-KF9-900

$3.06

WASHER (6X20) (L. SIDE ONLY) This part replaces 90512-422-000.

90512-KF9-900

$3.06

BEARING (30203J)

91066-MC7-004

Unavailable

DUST SEAL (22X40X5)

91268-KE8-003

Unavailable

DUST SEAL (22X40X5) This part replaces 91268-KE8-006.

91268-KE8-003

Unavailable

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, HEX. (8MM)

94030-08000

$1.49
