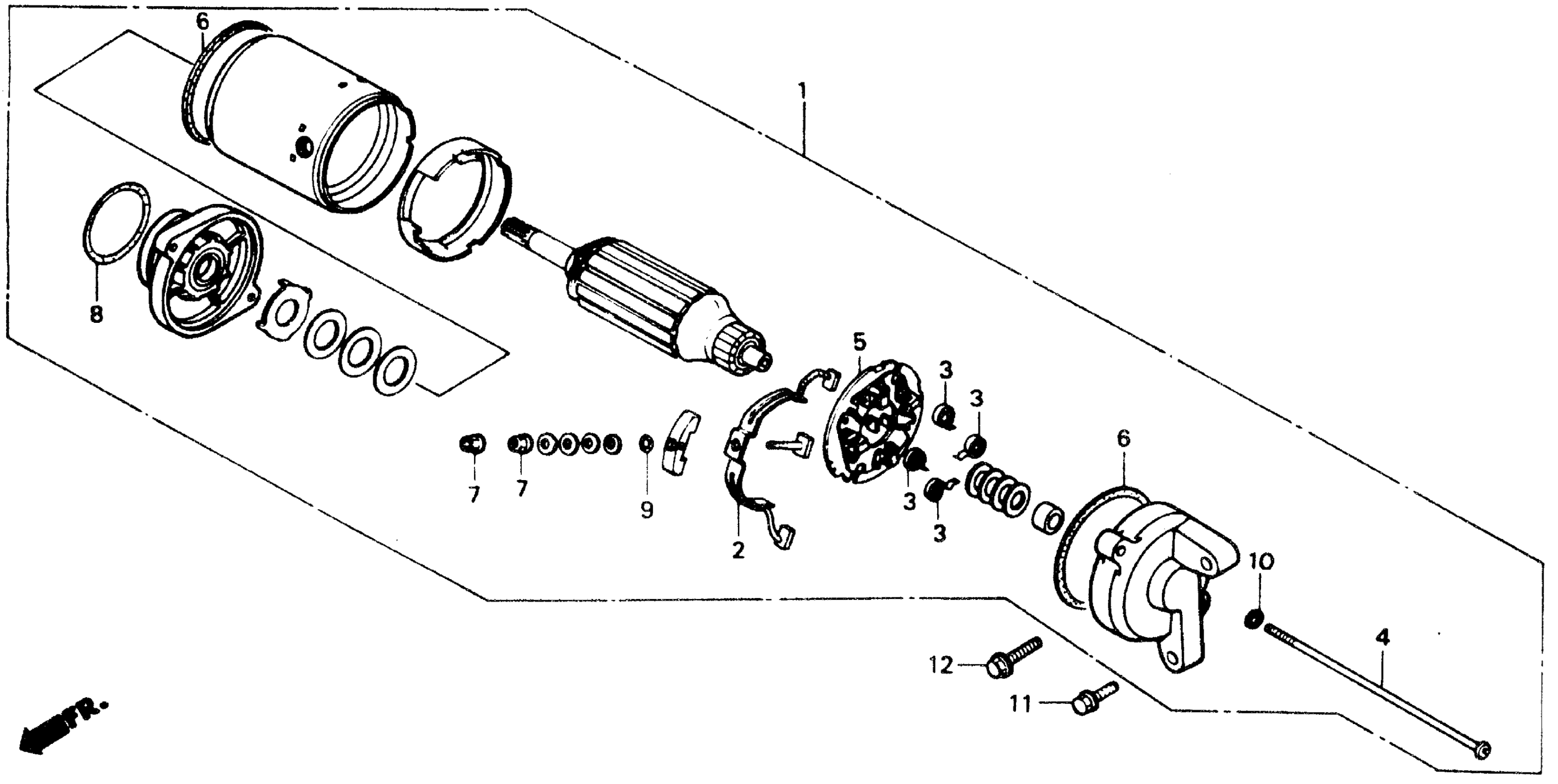

Honda VTR250A (88) INTERCEPTOR VTR, JPN, VIN# JH2MC150-JM000004 TO JH2MC150-JM001554 STARTER MOTOR 88 Diagram

MOTOR ASSY., STARTER This part replaces 31200-KM3-008.

31200-KM3-405

Unavailable

MOTOR ASSY., STARTER

31200-KM3-405

Unavailable

TERMINAL SET, BRUSH

31201-KM3-000

Unavailable

SPRING, CARBON BRUSH

31204-MA6-000

$5.72

BOLT, SETTING This part replaces 31205-KJ9-000.

31205-MN4-008

$5.80

BOLT, SETTING

31205-MN4-008

$5.80

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-KM3-000.

31206-MM5-008

$19.33

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

$19.33

RING, SEAL

31207-179-711

$4.22

NUT-WASHER (6MM)

90071-MB0-000

$1.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1)

91312-MG7-003

$6.34

O-RING

91320-MB0-000

$2.43

WASHER, SPRING (5MM)

94111-05000

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

BOLT, FLANGE (6X35)

96001-06035-07

$2.06
