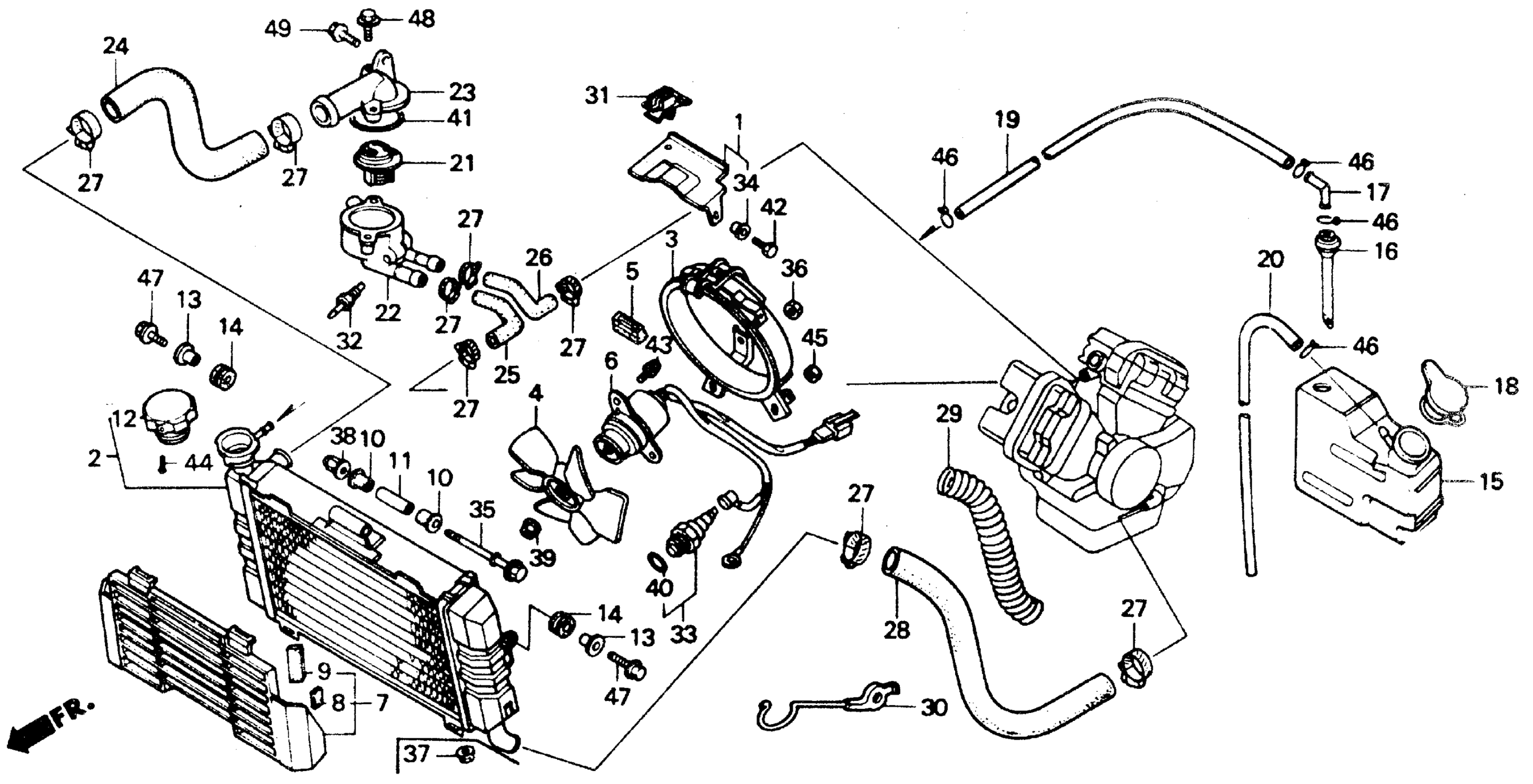

Honda VTR250A (88) INTERCEPTOR VTR, JPN, VIN# JH2MC150-JM000004 TO JH2MC150-JM001554 RADIATOR Diagram

#

Description
Price

1

GUIDE, AIR IN.

17235-KV0-000

Unavailable

2

RADIATOR (TOYO)

19001-KV0-751

Unavailable

3

SHROUD

19002-KV0-003

Unavailable

4

FAN, COOLING (TOYO MITSUBA)

19009-KM3-003

$66.16

5

RUBBER, SHROUD

19011-MB1-872

Unavailable

6

MOTOR ASSY., FAN This part replaces 19030-KV0-000.

19030-KV0-702

Unavailable

6

MOTOR ASSY., FAN This part replaces 19030-KV0-701.

19030-KV0-702

Unavailable

6

MOTOR ASSY., FAN

19030-KV0-702

Unavailable

7

GRILLE, RADIATOR

19032-KV0-000

Unavailable

8

RUBBER, RADIATOR GRILLE (A)

19034-KV0-000

Unavailable

9

RUBBER, RADIATOR GRILLE (B)

19035-KV0-000

Unavailable

10

RUBBER A, RADIATOR MOUNTING

19041-KM3-000

Unavailable

11

COLLAR, RADIATOR MOUNTING

19042-KM3-000

Unavailable

12

CAP, RADIATOR This part replaces 19045-MB0-702.

19045-MZ3-405

$32.49

13

COLLAR, RADIATOR SETTING

19052-KV0-000

Unavailable

14

GROMMET, RADIATOR

19053-MB2-000

$4.52

15

TANK, RESERVE

19101-KV0-000

Unavailable

16

DUCT, AIR This part replaces 19102-KE8-000.

19102-KE8-010

Unavailable

16

DUCT, AIR

19102-KE8-010

Unavailable

17

JOINT, TUBE

19103-463-000

Unavailable

18

CAP, RESERVE TANK

19104-MB0-000

Unavailable

19

TUBE, OVERFLOW This part replaces 19109-KM3-010.

19109-KM3-405

Unavailable

19

TUBE, OVERFLOW

19109-KM3-405

Unavailable

20

TUBE, OVERFLOW

19110-KV0-000

Unavailable

21

THERMOSTAT ASSY.

19300-KE8-000

$61.93

22

CASE, THERMOSTAT

19311-KV0-000

Unavailable

23

CAP, THERMOSTAT

19315-KV0-000

Unavailable

24

HOSE B, RADIATOR

19502-KV0-000

Unavailable

25

HOSE C, RADIATOR

19503-KV0-000

Unavailable

26

HOSE D, RADIATOR

19504-KV0-000

Unavailable

27

CLAMP B, WATER HOSE

19506-KS6-700

$7.50

28

HOSE A, RADIATOR

19506-KV0-700

Unavailable

29

PROTECTOR, RADIATOR HOSE (A)

19510-KV0-700

Unavailable

30

CLAMP, WATER HOSE

19512-KV0-700

Unavailable

31

CLIP, WIRE HARNESS

32171-GJ1-003

$3.47

32

SENDING UNIT, WATER TEMPERATURE (DENSO)

37750-PC1-004

$81.34

33

SWITCH ASSY., THERMO This part replaces 37760-MB2-901.

37760-MR1-003

$71.91

33

SWITCH ASSY., THERMO

37760-MR1-003

$71.91

34

COLLAR, RR. FENDER

80114-MC7-000

Unavailable

35

BOLT, RADIATOR MOUNTING (UPPER)

90111-KM3-000

Unavailable

36

NUT, SERRATE (5MM)

90301-KV0-003

Unavailable

37

NUT, SERRATE (6MM)

90303-KM3-003

Unavailable

38

NUT, CAP (6MM)

90304-438-000

$7.14

39

NUT, TOOTHED (3MM)

90308-KM3-003

$2.33

40

O-RING (13.5X1.4)

91307-PH7-660

$2.83

40

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

41

O-RING (47.5X2)

91311-KE8-000

$2.39

42

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

42

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

42

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

43

SCREW-WASHER (4X8)

93891-04008-07

$1.49

44

SCREW, TAPPING (3X8)

93901-22180

$1.49

45

NUT, SERRATE (5MM)

90301-KV0-003

Unavailable

46

CLIP, TUBE (C11)

95002-70000

$1.56

47

BOLT, FLANGE (6X20) This part replaces 95700-06020-07.

95701-06020-07

$1.62

47

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

48

BOLT, FLANGE (6X20) This part replaces 96000-06020-07.

96001-06020-07

$1.49

48

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

49

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
