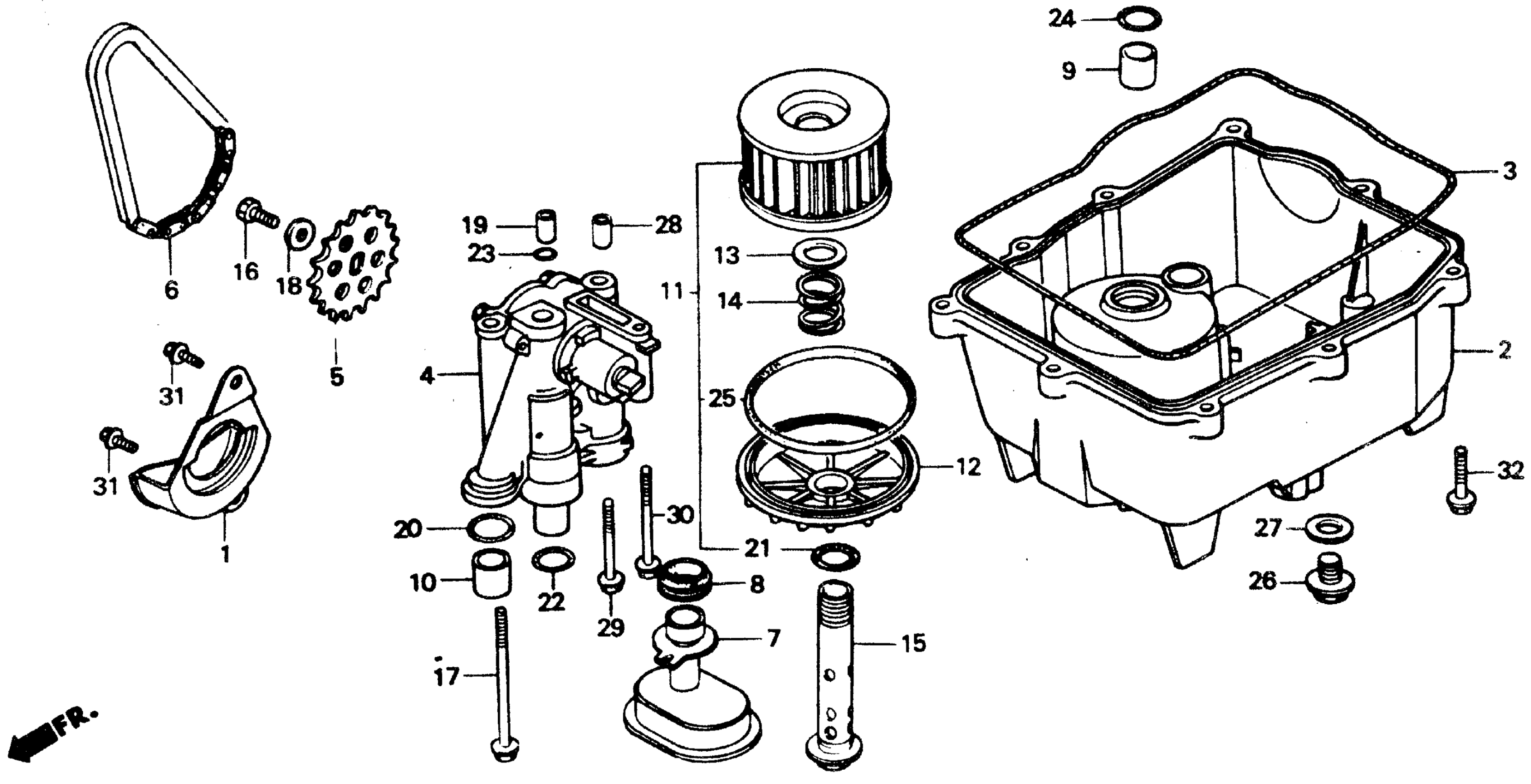

Honda VTR250A (88) INTERCEPTOR VTR, JPN, VIN# JH2MC150-JM000004 TO JH2MC150-JM001554 OIL PUMP Diagram

#

Description
Price

1

COVER, OIL PUMP CHAIN

11141-KE7-000

Unavailable

2

PAN, OIL This part replaces 11210-KV0-000.

11211-KV0-722

Unavailable

2

PAN, OIL This part replaces 11211-KV0-720.

11211-KV0-722

Unavailable

2

PAN, OIL This part replaces 11211-KV0-721.

11211-KV0-722

Unavailable

3

GASKET, OIL PAN

11315-KE8-000

Unavailable

4

PUMP ASSY., OIL This part replaces 15100-KV0-000.

15100-KV0-305

Unavailable

4

PUMP ASSY., OIL

15100-KV0-305

Unavailable

5

SPROCKET, OIL PUMP DRIVEN (21T)

15134-KE8-010

$35.39

6

CHAIN, OIL PUMP

15140-415-003

$51.99

7

STRAINER, OIL

15153-KE8-010

Unavailable

8

GASKET, OIL STRAINER

15154-KV0-000

Unavailable

9

COLLAR, OIL PASSAGE (24MM)

15326-KE8-000

Unavailable

10

COLLAR, OIL PASSAGE (18MM)

15326-300-000

Unavailable

11

ELEMENT, OIL FILTER This part replaces 154A1-413-005.

154A1-413-505

$9.47

12

COVER, OIL FILTER

15411-KE8-000

Unavailable

13

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

14

SPRING, FILTER ELEMENT SETTING

15415-413-000

$3.47

15

BOLT, OIL FILTER CENTER

15420-KE8-000

Unavailable

16

BOLT, HEX. (6X16)

90021-KE8-010

$2.28

17

BOLT, FLANGE (6X75)

90051-393-000

Unavailable

18

WASHER (6X2.3)

90488-MB0-000

$4.37

19

PIN, KNOCK (8X14)

90701-MB0-000

Unavailable

20

O-RING (18X3) (ARAI)

91302-KE8-003

$2.61

21

O-RING (15X2.5)

91302-377-000

$5.31

22

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

22

O-RING (14.8X2.2)

91313-MG7-004

$3.67

23

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

23

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

23

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

24

O-RING (24X3) (ARAI)

91315-KE8-003

$3.35

25

O-RING (81X4.5) (ARAI)

91315-MA6-003

$3.13

26

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

27

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

28

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

29

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

29

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

30

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

31

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

32

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
