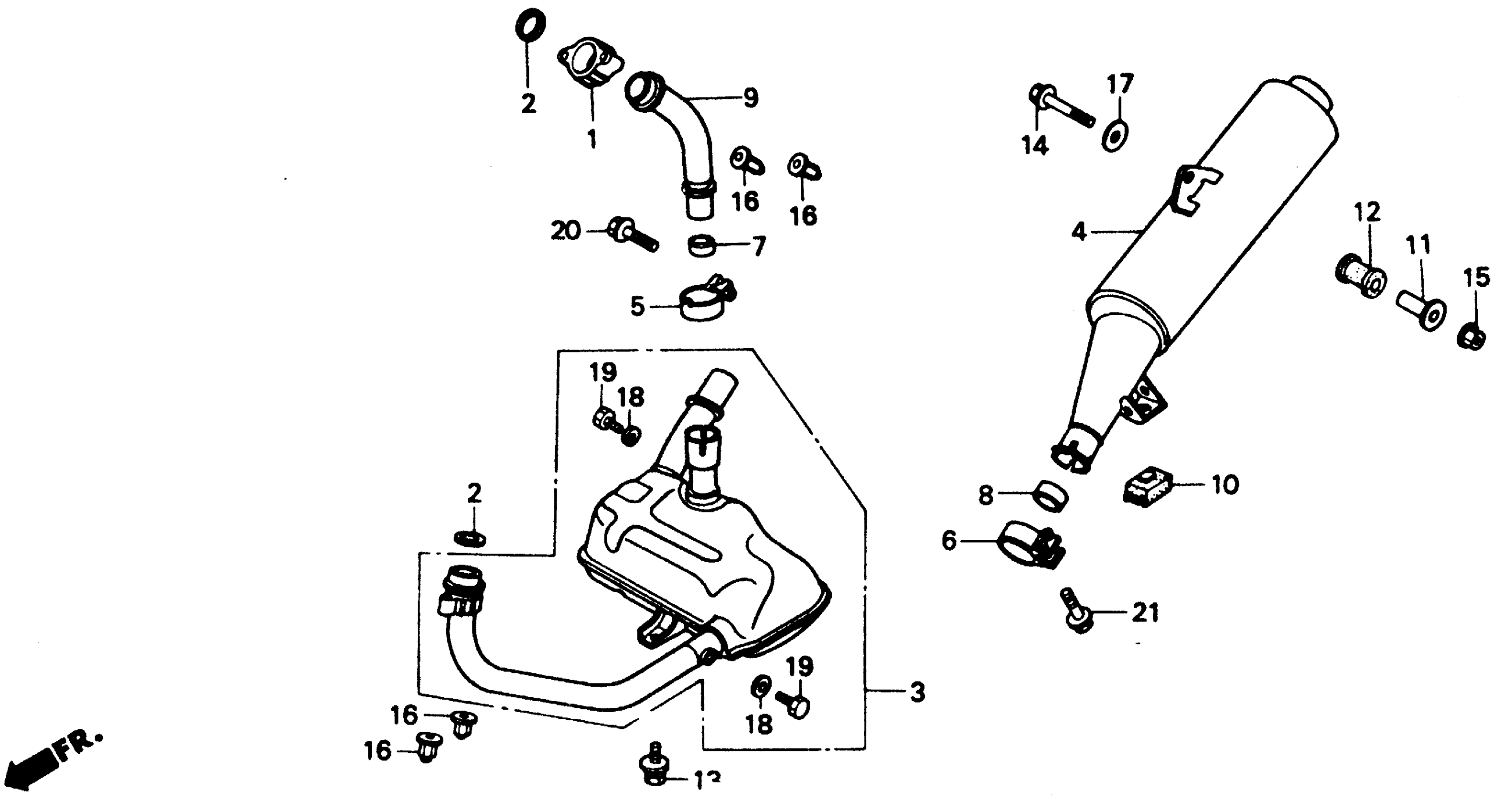

Honda VTR250A (88) INTERCEPTOR VTR, JPN, VIN# JH2MC150-JM000004 TO JH2MC150-JM001554 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-KM3-000

Unavailable

2

GASKET, EX. PIPE This part replaces 18291-236-000.

18291-MN4-920

$5.31

2

GASKET, EX. PIPE

18291-MN4-920

$5.31

3

PIPE, EX.

18300-KV0-003

Unavailable

4

MUFFLER

18310-KV0-405

Unavailable

4

MUFFLER This part replaces 18310-KV0-670.

18310-KV0-405

Unavailable

5

BAND, EX. PIPE BAND, L. EX. PIPE

18374-KM3-000

Unavailable

6

BAND, MUFFLER

18376-KV0-000

Unavailable

7

GASKET, MUFFLER This part replaces 18391-KM3-000.

18391-KY6-000

Unavailable

7

GASKET, MUFFLER

18391-KY6-000

Unavailable

8

GASKET, RR. MUFFLER

18392-MJ4-670

$16.06

8

GASKET, RR. MUFFLER This part replaces 18392-449-000.

18392-MJ4-670

$16.06

9

PIPE, RR. EX.

18420-KBV-000

Unavailable

9

PIPE, RR. EX. This part replaces 18420-KV0-003.

18420-KBV-000

Unavailable

10

RUBBER A, STAND STOPPER | (Optional).

50524-KR0-000

Unavailable

11

COLLAR, MOUNTING RUBBER

50607-KK6-000

$9.13

12

RUBBER, MUFFLER SETTING

50608-KV0-000

$6.22

13

BOLT,SPECIAL FLAN This part replaces 90104-KV0-000.

90104-KCR-000

Unavailable

14

BOLT, FLANGE (8X50)

90109-KV0-700

Unavailable

15

NUT-WASHER (8MM) This part replaces 90302-KV0-700.

90313-HE0-006

$4.46

16

NUT, CAP (6MM)

90304-438-000

$7.14

17

WASHER (8.3MM)

90501-KK6-000

$2.48

18

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

19

BOLT, HEX. (6X10) This part replaces 92000-06010-4J.

92101-06010-4J

$2.34

19

BOLT, HEX. (6X10)

92101-06010-4J

$2.34

20

BOLT, FLANGE (8X35)

95701-08035-07

$1.49

21

BOLT-WASHER (8X40) This part replaces 95701-08040-07.

90141-GGZ-J00

$2.43
