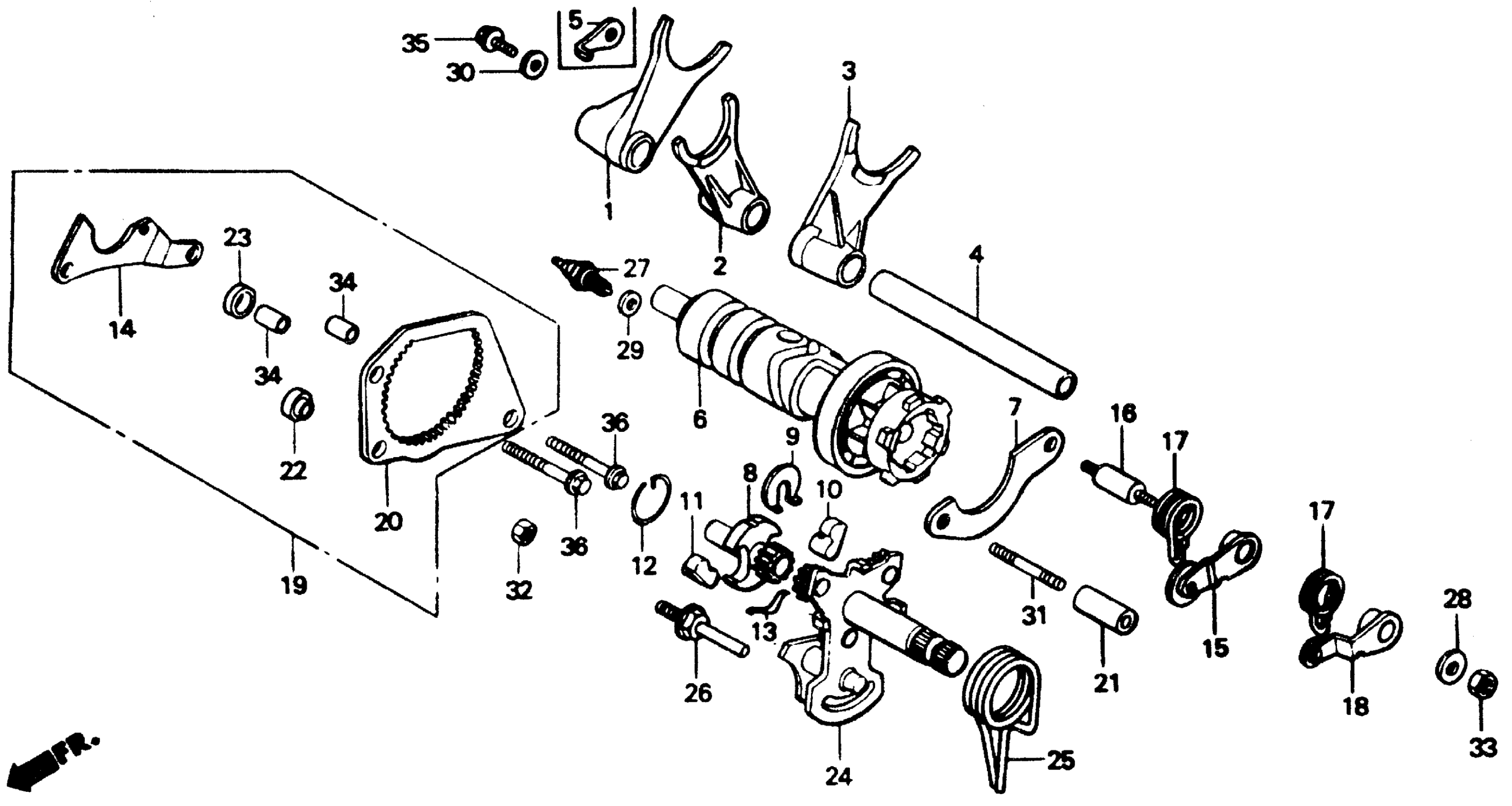

Honda VTR250A (88) INTERCEPTOR VTR, JPN, VIN# JH2MC150-JM000004 TO JH2MC150-JM001554 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-MJ8-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-MJ8-000

Unavailable

3

FORK, L. GEARSHIFT

24213-KM3-000

Unavailable

4

SHAFT, GEARSHIFT FORK

24261-KV0-000

Unavailable

5

PLATE, GEARSHIFT FORK SETTING

24262-KE8-010

Unavailable

6

DRUM, GEARSHIFT

24310-KM3-020

Unavailable

7

PLATE, DRUM SETTING

24315-KE8-000

$5.20

8

SHIFTER, DRUM

24321-ML7-000

Unavailable

9

PLATE, SHIFTER GEAR SIDE

24322-MJ8-000

Unavailable

10

PAWL A, RATCHET

24324-KE7-000

Unavailable

11

PAWL B, RATCHET

24325-KE7-000

Unavailable

12

SPRING, RATCHET

24326-KE8-000

Unavailable

13

SPRING, RATCHET (B)

24327-KE7-003

Unavailable

14

PLATE, RATCHET GUIDE

24328-KE7-000

Unavailable

15

STOPPER, GEARSHIFT DRUM

24430-KE8-000

$13.13

16

BOLT, GEARSHIFT DRUM STOPPER

24434-KE8-000

Unavailable

17

SPRING, SHIFT DRUM STOPPER (B)

24435-KE7-010

Unavailable

18

STOPPER, GEARSHIFT DRUM NEUTRAL

24440-KE8-000

Unavailable

19

GEAR ASSY., SHIFT (INNER)

24450-KE7-000

Unavailable

20

GEAR, SHIFT (INNER) (45T)

24451-KE8-000

Unavailable

21

COLLAR A, SHIFT GEAR SETTING (INNER)

24452-KE8-000

Unavailable

22

COLLAR B, SHIFT GEAR SETTING (INNER)

24453-KE8-000

Unavailable

23

SPACER, SHIFT GEAR SETTING (INNER)

24454-KE8-000

Unavailable

24

SPINDLE, GEARSHIFT

24610-KE8-020

Unavailable

25

SPRING, GEARSHIFT RETURN

24651-KE8-000

Unavailable

26

PIN, GEARSHIFT RETURN SPRING

24652-KE8-000

Unavailable

27

SWITCH ASSY., NEUTRAL

35600-KE8-003

$18.90

28

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

29

WASHER, SEALING (10MM)

90443-MB0-000

$2.92

31

BOLT, STUD (6X55)

92700-06055-0B

$1.54

32

NUT, HEX. (6MM)

94002-06020-0S

$1.49

33

NUT, HEX. (6MM)

94002-06200

Unavailable

33

NUT, HEX. (6MM) This part replaces 94002-06200-0S.

94002-06200

Unavailable

34

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

35

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

36

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
