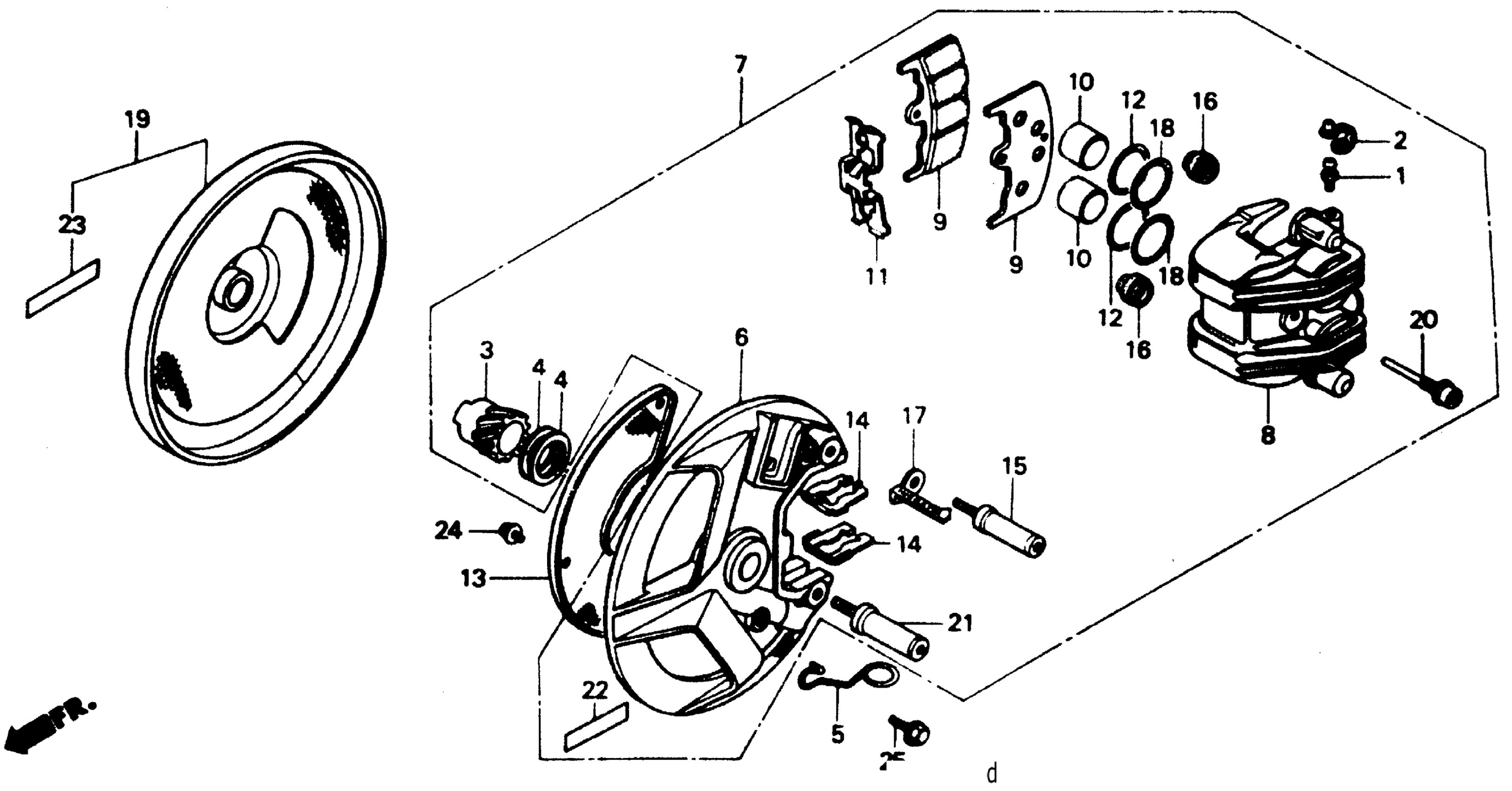

Honda VTR250A (88) INTERCEPTOR VTR, JPN, VIN# JH2MC150-JM000004 TO JH2MC150-JM001554 FR. BRAKE CALIPER 88-89 Diagram

#

Description
Price

NI

PAD SET, BRAKE This part replaces 451A0-MA6-670.

06455-MA6-405

Unavailable

1

SCREW, BLEEDER

43352-568-003

$7.95

2

CAP, BLEEDER

43353-461-771

$5.05

3

GEAR, SPEEDOMETER

44806-KE8-003

Unavailable

4

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

5

CLAMP, SPEEDOMETER CABLE

44832-KE8-000

Unavailable

6

BRACKET SUB, FR. BRAKE *B125* (BRAD BLUE)

45010-KV0-305ZB

Unavailable

7

CALIPER ASSY., L. FR. *NH105/B125* (NISSIN) (BLACK/BRAD BLUE) This part replaces 45100-KV0-006ZB.

45100-KV0-405

Unavailable

7

CALIPER ASSY., L. FR. *NH105/B125* (NISSIN) (BLACK/BRAD BLUE)

45100-KV0-405

Unavailable

8

BODY, L. FR. CALIPER *NH105* (MAT BLACK)

45101-KV0-006ZB

Unavailable

9

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-MA6-004

Unavailable

10

PISTON

45107-MA6-006

$41.70

11

SPRING, PAD

45108-MA6-006

Unavailable

12

DUST SEAL

45109-961-006

$5.08

13

MESH, FR. CALIPER BRACKET

45111-KM3-000

Unavailable

14

RETAINER (11T) (NOT AVAILABLE)

45112-MA6-006

Unavailable

15

PIN, BOLT

45131-MA6-006

Unavailable

16

BOOT

45133-MA6-006

Unavailable

17

INDICATOR, L. FR. BRAKE

45145-MA7-006

Unavailable

18

SEAL, PISTON

45209-961-006

$6.20

19

COVER SET, FR. WHEEL *B125* (BRAD BLUE)

45210-KV0-670ZA

Unavailable

20

PIN, HANGER This part replaces 45215-MA6-006.

45215-MA6-016

Unavailable

20

PIN, HANGER

45215-MA6-016

Unavailable

21

PIN, BOLT

45231-MA6-006

Unavailable

22

MARK (INBOARD)

87509-KM3-000

Unavailable

23

MARK (INBOARD)

87509-KV0-670

Unavailable

24

SCREW-WASHER (4X8)

93894-04008-00

Unavailable

25

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

25

BOLT, FLANGE (6X10)

95701-06010-07

$1.62
