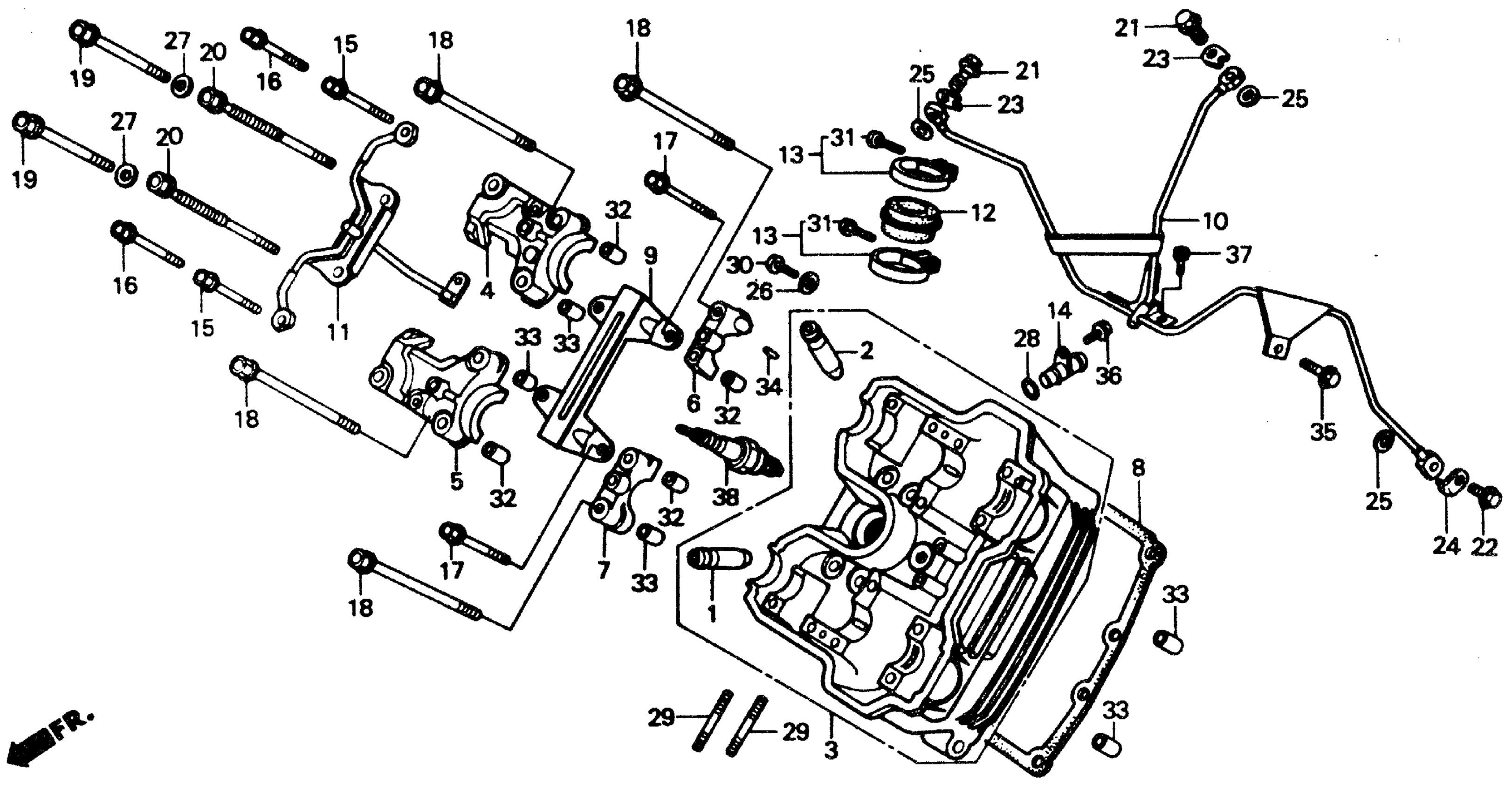

Honda VTR250A (88) INTERCEPTOR VTR, JPN, VIN# JH2MC150-JM000004 TO JH2MC150-JM001554 CYLINDER HEAD (FR) 88 Diagram

#

Description
Price

1

GUIDE, VALVE (OS)

12204-KE7-305

Unavailable

2

GUIDE, VALVE (OS) (NOT AVAILABLE)

12204-KV0-701

Unavailable

3

CYLINDER HEAD, FR.

12210-KV0-670

Unavailable

4

HOLDER A, CAMSHAFT

12211-KV0-000

Unavailable

5

HOLDER B, CAMSHAFT

12212-KV0-000

Unavailable

6

HOLDER C, CAMSHAFT This part replaces 12213-KV0-000.

12213-KV0-010

Unavailable

6

HOLDER C, CAMSHAFT

12213-KV0-010

Unavailable

7

HOLDER D,CAMSHAFT This part replaces 12214-KV0-000.

12214-KV0-010

Unavailable

8

GASKET, FR. CYLINDER HEAD (NOT AVAILABLE)

12251-KV0-003

$30.85

9

GUIDE D, CAM CHAIN

14546-KV0-670

Unavailable

10

PIPE, OIL FEEDER

15301-KV0-701

Unavailable

11

PIPE, OIL PASSAGE

15311-KV0-020

Unavailable

12

INSULATOR, CARBURETOR

16211-KCR-940

Unavailable

12

INSULATOR, CARBURETOR This part replaces 16211-KV0-000.

16211-KCR-940

Unavailable

13

BAND, INSULATOR

16219-KV0-000

Unavailable

14

PIPE D, WATER

19523-KV0-000

Unavailable

15

BOLT, FLANGE (6X48)

90001-KV0-000

Unavailable

16

BOLT, UBS (6X40)

90002-KV0-000

Unavailable

17

BOLT, FLANGE (6X43)

90003-MB0-000

$6.21

18

BOLT, UBS (8X130)

90008-KE8-010

Unavailable

19

BOLT, UBS (8X80)

90011-KE8-000

Unavailable

20

BOLT, UBS (8X151)

90012-KE8-000

Unavailable

21

BOLT, OIL (10MM) (NOT AVAILABLE)

90044-KM3-000

Unavailable

22

BOLT, OIL CONTROL (NOT AVAILABLE)

90045-422-000

Unavailable

23

WASHER, LOCK (10MM) (A)

90407-KV0-701

Unavailable

24

WASHER B, LOCK (10MM)

90408-KV0-701

Unavailable

25

WASHER, SEALING (10MM)

90443-MB0-000

$2.92

26

WASHER, SEALING (5MM)

90452-323-000

$1.59

27

WASHER (8.5MM)

90457-422-000

$2.51

28

O-RING (13X3.0)

91302-MB6-830

$1.95

28

O-RING (13X3.0) This part replaces 91314-KE8-003.

91302-MB6-830

$1.95

29

BOLT, STUD (6X50) This part replaces 90063-235-000.

92700-06050-0E

$1.54

29

BOLT, STUD (6X50) This part replaces 92700-06045-0E.

92700-06050-0E

$1.54

29

BOLT, STUD (6X50)

92700-06050-0E

$1.54

30

SCREW, PAN (5X8)

93500-05008-0G

$1.49

31

SCREW, PAN (5X28)

93500-05028-0G

$1.49

32

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

33

PIN A, DOWEL (10X16)

94301-10160

$2.28

34

PIN C, DOWEL (4X6.5)

94303-04065

$2.14

35

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

36

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

37

BOLT, SOCKET (6X12)

96600-06012-07

$1.49

37

BOLT, SOCKET (6X12) This part replaces 96700-06012-07.

96600-06012-07

$1.49

38

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

38

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

38

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

38

SPARK PLUG (X27EP-U9) (DENSO) (NOT AVAILABLE) | (Optional).

98069-59921

Unavailable
