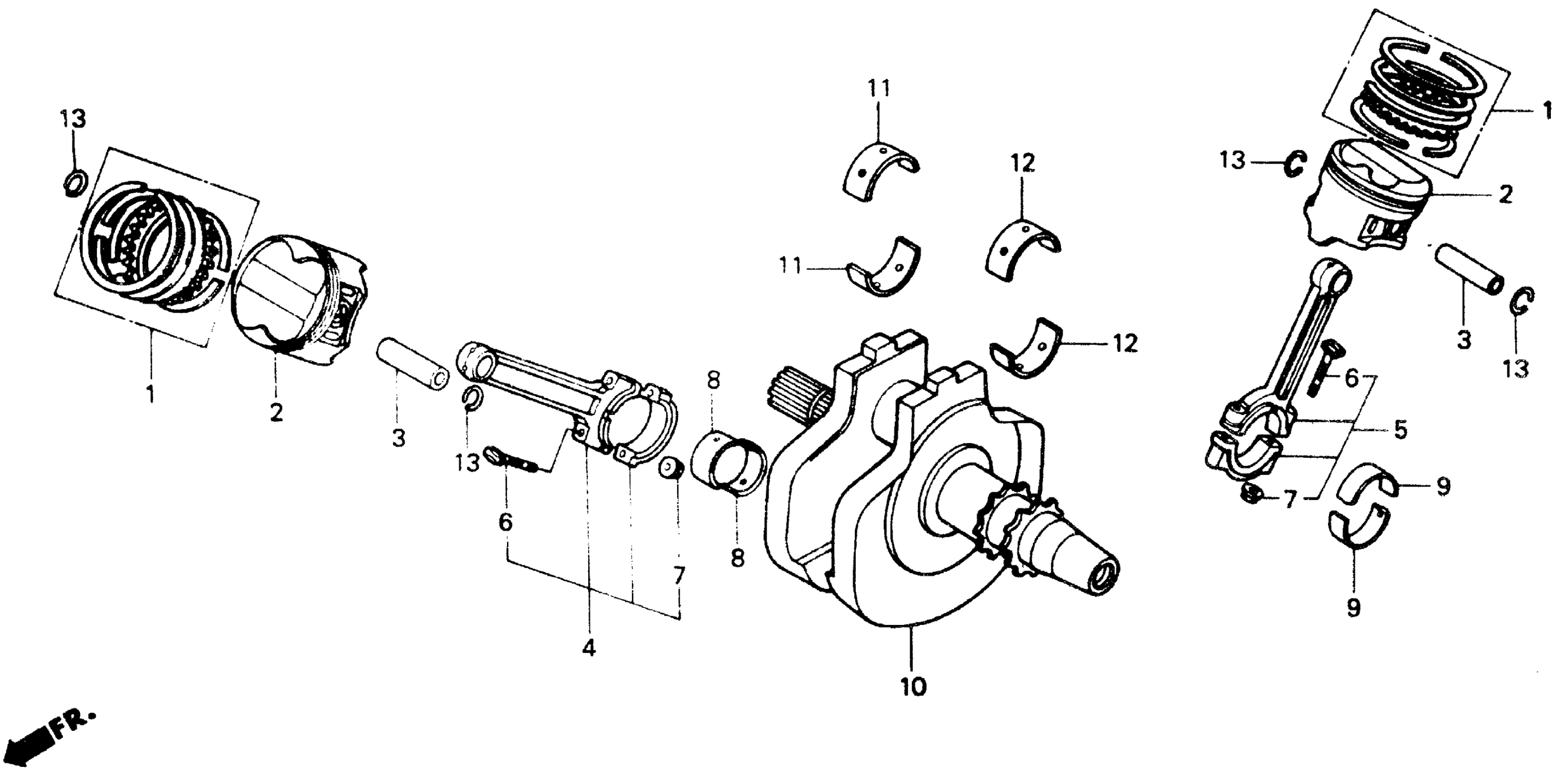

Honda VTR250A (88) INTERCEPTOR VTR, JPN, VIN# JH2MC150-JM000004 TO JH2MC150-JM001554 CRANKSHAFT Diagram

#

Description
Price

1

RING SET, PISTON (OS 0.25) | (Optional).

13021-KV0-671

Unavailable

1

RING SET, PISTON (OS 0.50) | (Optional).

13031-KV0-671

Unavailable

1

RING SET,PISTON S This part replaces 13011-KV0-003.

13010-KFK-000

Unavailable

1

RING SET,PISTON S This part replaces 131A2-KV0-720.

13010-KFK-000

Unavailable

2

PISTON (OS 0.25) | (Optional).

13102-KV0-670

Unavailable

2

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13103-KV0-670

Unavailable

2

PISTON (STD)

13101-KV0-010

Unavailable

3

PIN, PISTON

13111-KM3-000

$12.64

4

ROD ASSY., FR. CONNECTING This part replaces 13201-KV0-010.

13201-KV0-720

Unavailable

4

ROD ASSY., FR. CONNECTING This part replaces 13201-KV0-020.

13201-KV0-720

Unavailable

4

ROD ASSY., FR. CONNECTING

13201-KV0-720

Unavailable

5

ROD ASSY., RR. CONNECTING This part replaces 13206-KV0-010.

13206-KV0-720

Unavailable

5

ROD ASSY., RR. CONNECTING This part replaces 13206-KV0-020.

13206-KV0-720

Unavailable

5

ROD ASSY., RR. CONNECTING

13206-KV0-720

Unavailable

6

BOLT, CONNECTING ROD

13213-KV0-000

$5.90

7

NUT, CONNECTING ROD

13215-KM3-000

$3.67

8

BEARING A, FR. CONNECTING ROD This part replaces 13224-KV0-003.

13224-KV0-405

Unavailable

8

BEARING A, FR. CONNECTING ROD

13224-KV0-405

Unavailable

8

BEARING B, FR. CONNECTING ROD This part replaces 13225-KV0-003.

13225-KV0-405

Unavailable

8

BEARING B, FR. CONNECTING ROD

13225-KV0-405

Unavailable

8

BRG C, FR. CONN ROD This part replaces 13226-KV0-003.

13226-KV0-405

Unavailable

9

BEARING A, FR. CONNECTING ROD

13224-KV0-405

Unavailable

9

BEARING B, FR. CONNECTING ROD

13225-KV0-405

Unavailable

9

BEARING A, FR. CONNECTING ROD This part replaces 13234-KV0-003.

13224-KV0-405

Unavailable

9

BEARING B, FR. CONNECTING ROD This part replaces 13235-KV0-003.

13225-KV0-405

Unavailable

9

BRG C, FR. CONN ROD This part replaces 13236-KV0-003.

13226-KV0-405

Unavailable

10

CRANKSHAFT This part replaces 13310-KV0-670.

13310-KV0-720

Unavailable

10

CRANKSHAFT

13310-KV0-720

Unavailable

11

BEARING B, CRANKSHAFT (BROWN)

13314-KE8-013

Unavailable

11

BEARING C, CRANKSHAFT (GREEN)

13315-KE8-013

Unavailable

11

BEARING D, CRANKSHAFT (YELLOW)

13316-KE8-013

Unavailable

12

BEARING B, CRANKSHAFT (BROWN)

13324-KV0-003

Unavailable

12

BEARING C, CRANKSHAFT (GREEN)

13325-KV0-003

Unavailable

12

BEARING D, CRANKSHAFT (YELLOW) (NOT AVAILABLE)

13326-KV0-003

Unavailable

13

CLIP, PISTON PIN (16MM)

94601-16000

$1.49
