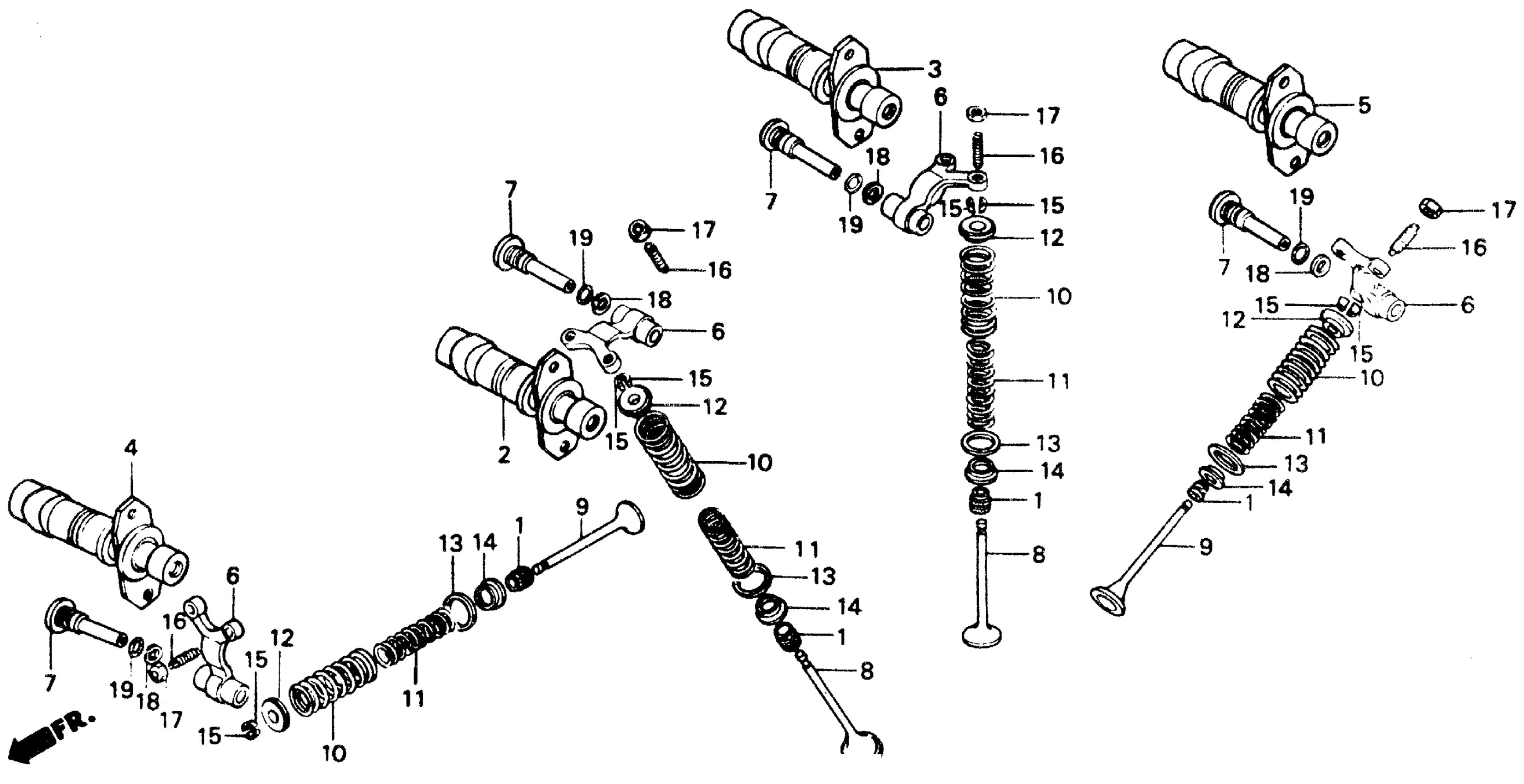

Honda VTR250A (88) INTERCEPTOR VTR, JPN, VIN# JH2MC150-JM000004 TO JH2MC150-JM001554 CAMSHAFT Diagram

SEAL, VALVE STEM (NOK)

12209-MA6-005

$14.02

CAMSHAFT, FR. IN.

14110-KV0-760

Unavailable

CAMSHAFT, RR. IN.

14120-KV0-760

Unavailable

CAMSHAFT, FR. EX.

14130-KV0-760

Unavailable

CAMSHAFT, RR. EX.

14140-KV0-760

Unavailable

ARM, VALVE ROCKER This part replaces 14611-KV0-000.

14611-KV0-720

Unavailable

ARM, VALVE ROCKER

14611-KV0-720

Unavailable

SHAFT, ROCKER ARM

14631-KV0-000

Unavailable

VALVE, IN.

14711-KV0-700

Unavailable

VALVE, EX.

14721-KM3-000

Unavailable

SPRING, VALVE (OUTER)

14751-KE8-003

Unavailable

SPRING, VALVE (INNER)

14761-KE8-003

Unavailable

RETAINER, VALVE SPRING

14771-KM3-000

$10.56

SEAT, VALVE SPRING (OUTER) This part replaces 14775-KM3-000.

14775-MA6-000

$3.67

SEAT, VALVE SPRING (OUTER)

14775-MA6-000

$3.67

SEAT, VALVE SPRING (NOT AVAILABLE) This part replaces 14777-KM3-000.

14777-KE8-000

Unavailable

COTTER, VALVE

14781-MA6-000

$2.92

SCREW, TAPPET ADJ.

90012-333-000

$2.75

NUT, TAPPET ADJ.

90206-KM3-000

$1.49

WASHER, WAVE (10MM)

90403-KV0-003

Unavailable

O-RING (19.8X1.9) (ARAI)

91308-PA9-003

$3.85
