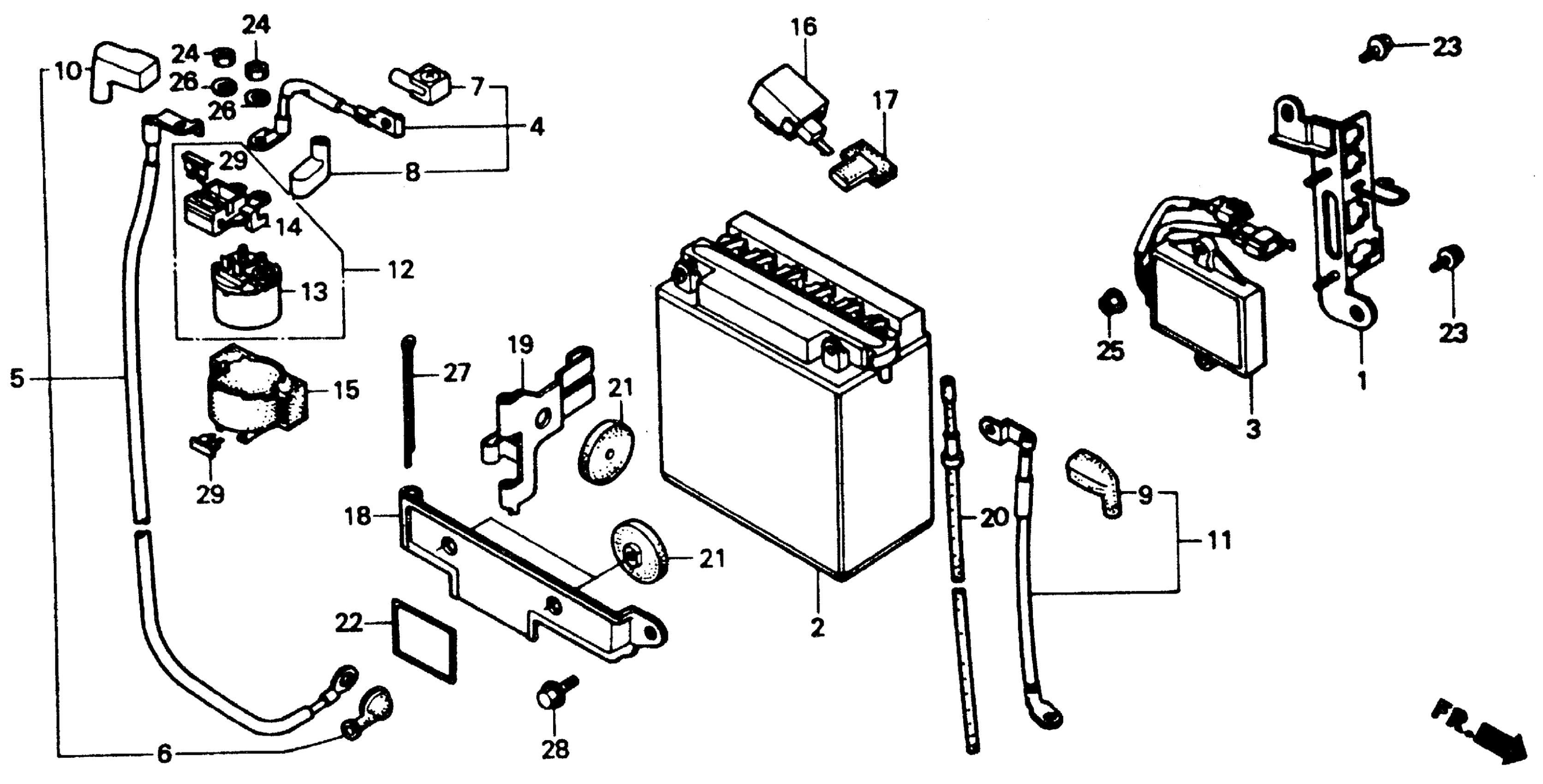

Honda VTR250A (88) INTERCEPTOR VTR, JPN, VIN# JH2MC150-JM000004 TO JH2MC150-JM001554 BATTERY Diagram

HOLDER, CONNECTOR

30505-KV0-750

Unavailable

BATTERY (YB9-B) This part replaces 31500-KB4-673.

31500-KB4-673AH

Unavailable

RECTIFIER ASSY., REGULATE | Use up to Frame SN JM001514 This part replaces 31600-KV0-008.

31600-ML0-721

Unavailable

RECTIFIER ASSY., REGULATE This part replaces 31600-KV0-018.

31600-ML0-721

Unavailable

RECTIFIER ASSY., REGULATE

31600-ML0-721

Unavailable

CABLE, STARTER BATTERY

32401-KV0-000

Unavailable

CABLE, STARTER MOTOR

32410-KV0-000

Unavailable

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

COVER, BATTERY TERMINAL

32412-KM3-300

Unavailable

CABLE, STARTER MOTOR (NOT AVAILABLE) This part replaces 32413-MG8-000.

32410-MG8-770

Unavailable

COVER, BATTERY TERMINAL

32414-KM3-300

Unavailable

COVER B, MAGNETIC SWITCH

32416-MF5-000

$5.21

CABLE, BATTERY GROUND

32601-KV0-000

Unavailable

SWITCH ASSY., STARTER MAGNETIC

35850-MF5-751

$140.48

SWITCH, STARTER MAGNETIC

35851-MF5-751

$106.43

HOLDER ASSY., FUSE

35855-MF5-751

$35.11

RUBBER, SHOCK ABSORBER

35856-MF5-751

$10.03

RELAY, TURN SIGNAL (TATEISHI)

38301-MF8-771

$103.03

SUSPENSION, TURN SIGNAL RELAY

38306-KJ6-740

$7.49

BAND, BATTERY

50326-KM3-000

Unavailable

HINGE, BATTERY BAND

50327-KM3-010

Unavailable

TUBE, BATTERY

50328-KV0-000

Unavailable

RUBBER, BATTERY BOX This part replaces 83618-GF0-750.

83618-GF0-751

$3.95

RUBBER, BATTERY BOX

83618-GF0-751

$3.95

MARK, BATTERY CAUTION

87506-KV0-670

Unavailable

BOLT, FLANGE (6X12)

90118-958-003

$3.24

NUT, HEX. (6MM)

94002-06080-0S

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, SPRING (6MM)

94111-06800

$1.49

PIN, COTTER (4.0)

94201-40700

Unavailable

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

FUSE, BLADE (30A)

98200-33000

$1.49
