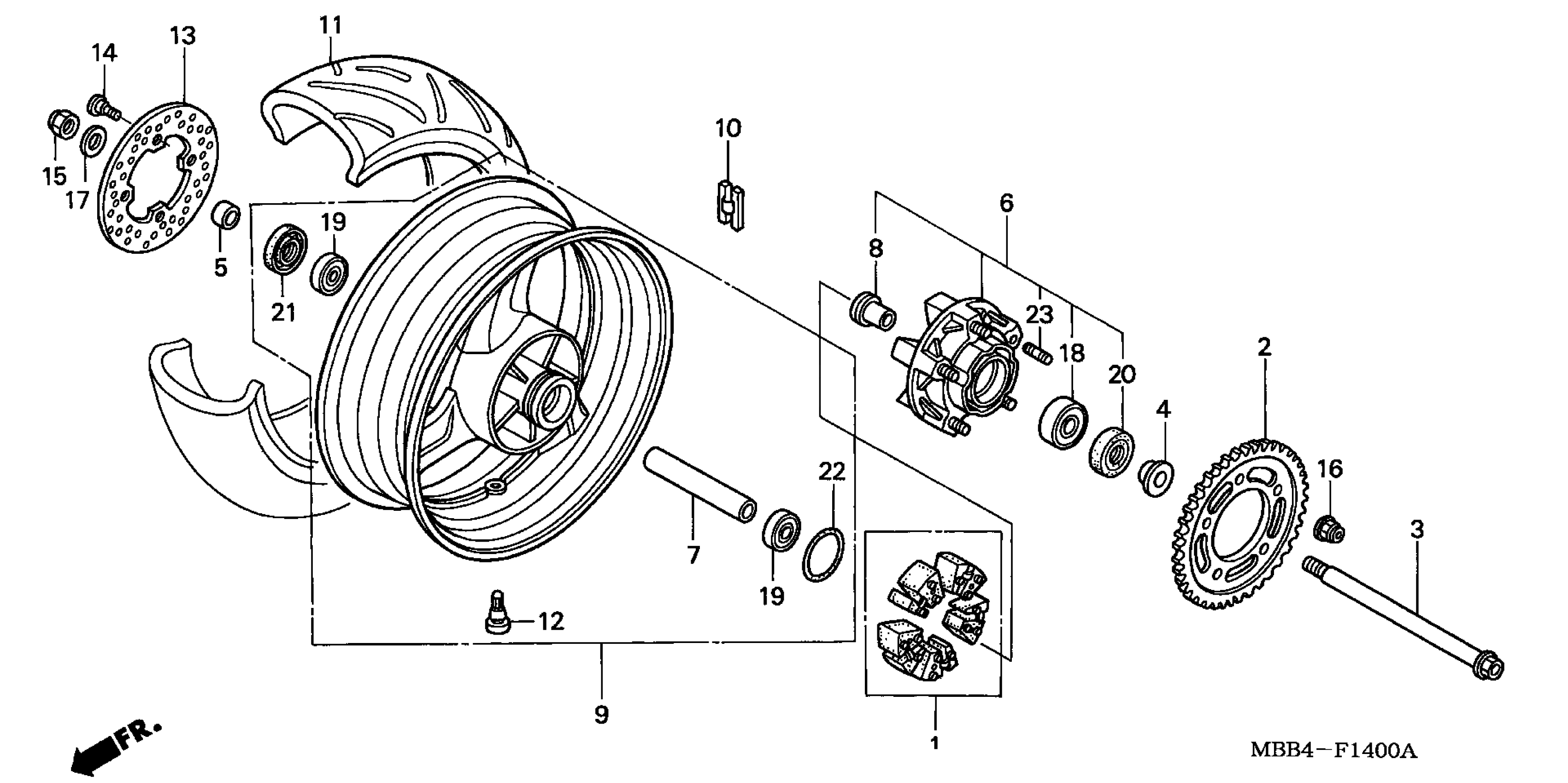

Honda VTR1000FAC (05) MOTORCYCLE, JPN, VIN# JH2SC361-5M700001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MBB-000

$43.38

2

SPROCKET, FINAL DRIVEN (41T)

41201-MBB-000

Unavailable

3

AXLE, RR. WHEEL

42301-MAS-000

$71.66

4

COLLAR, L. RR. WHEEL SIDE

42311-MBB-D40

Unavailable

5

COLLAR, L. RR. WHEEL SIDE

42312-MBB-D40

Unavailable

6

FLANGE SUB-ASSY., RR. DRIVEN

42615-MBB-000

$232.59

7

COLLAR, RR. AXLE DISTANCE (FR.)

42620-MW0-010

$34.02

8

COLLAR B, RR. WHEEL DISTANCE

42625-MAS-000

$23.28

9

WHEEL SUB-ASSY., RR. (TYPE6)

42650-MBW-D01ZE

$848.84

10

WEIGHT, BALANCE (10) WEIGHT, BALANCE (20G)

42704-MCF-D60

$12.74

10

WEIGHT, BALANCE (30) WEIGHT, BALANCE (10G)

42706-MCF-D60

$14.48

10

WEIGHT, BALANCE (20) WEIGHT, BALANCE (30G)

42705-MCF-D60

$15.38

11

TIRE, RR. (180/55ZR17) (M/C) (DUNLOP) (NOT AVAILABLE)

42711-MCW-D02

Unavailable

12

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

13

DISK, RR. BRAKE

43251-MEE-000

$229.93

14

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

14

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

15

NUT, U (18MM) This part replaces 90305-MBB-D40.

90306-MCS-G00

$7.13

15

NUT, U (18MM)

90306-MCS-G00

$7.13

16

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.85

17

WASHER (20X31.5X2)

90401-MAS-000

$3.21

18

BEARING, RADIAL BALL (63/22)

91051-MAS-003

$40.04

19

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

20

DUST SEAL (30X56X7.5)

91252-MAS-003

$12.11

21

DUST SEAL (30X47X7.5)

91253-MAE-003

$15.95

22

O-RING (61X2)

91302-MA6-003

$5.17

23

BOLT, STUD (12X28) (NOT AVAILABLE)

92918-12028-0E

Unavailable
