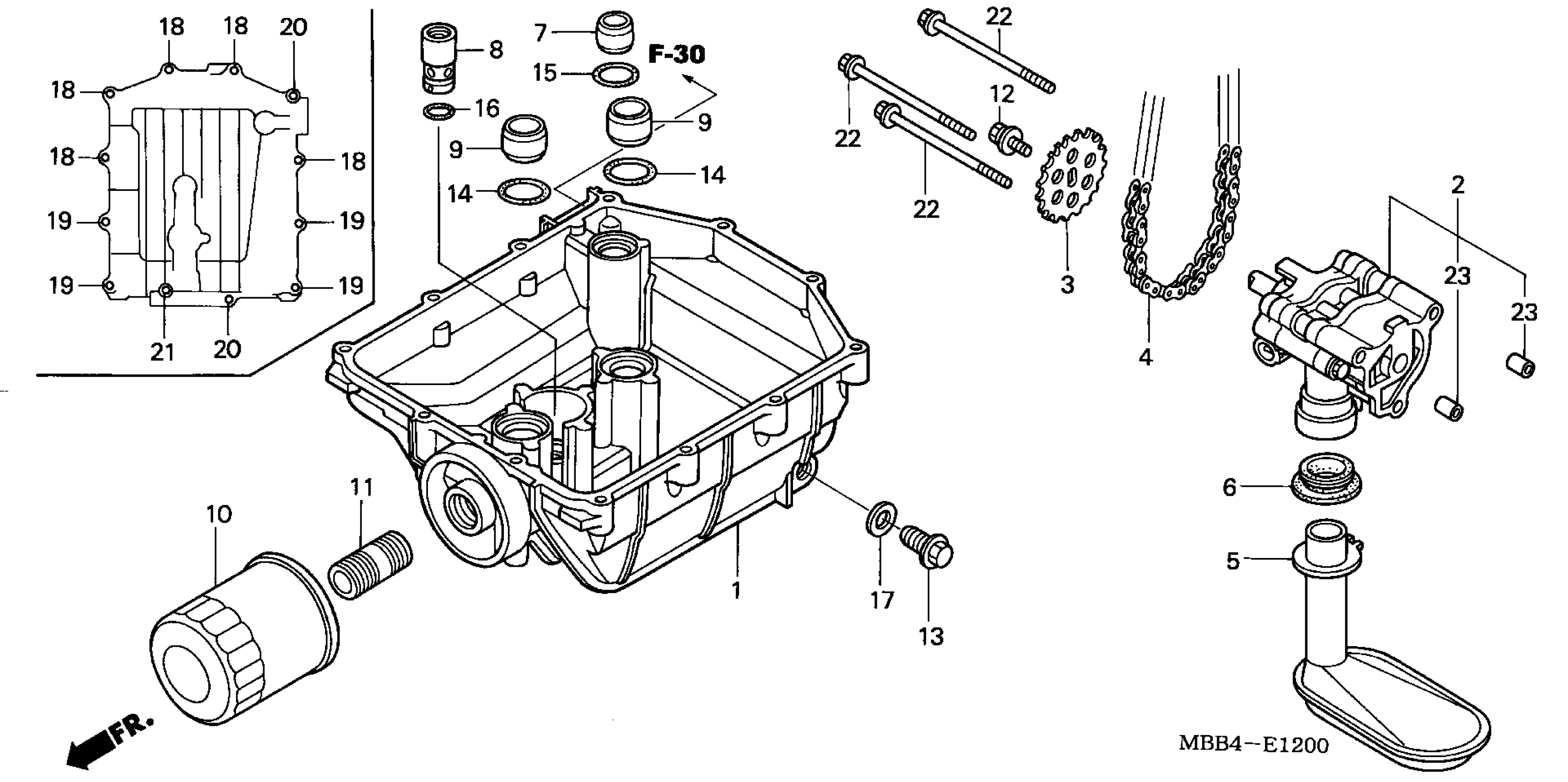

Honda VTR1000FAC (05) MOTORCYCLE, JPN, VIN# JH2SC361-5M700001 OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11210-MBB-D40

$238.95

2

PUMP ASSY., OIL

15100-MBB-000

Unavailable

3

SPROCKET, OIL PUMP DRIVEN (21T)

15134-KE8-010

$35.39

4

CHAIN, OIL PUMP (52L) (DAIDO)

15140-415-003

$51.99

5

STRAINER, OIL

15150-MBB-000

$33.89

6

GASKET, OIL STRAINER

15154-MM5-000

$6.60

7

COLLAR, O-RING

15155-300-000

$3.47

8

VALVE ASSY., RELIEF

15220-MB0-010

$44.08

9

COLLAR (16X18X10)

15326-KBV-000

$4.44

10

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

10

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$15.84

10

FILTER, OIL (WAKO FILTER) This part replaces 15410-MCJ-003.

15410-MFJ-D02

$15.84

11

BOSS, OIL FILTER (Honda Code 1243435)

90019-MB0-000

$8.61

12

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$5.12

13

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

13

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

14

O-RING (18X3) (ARAI)

91302-KE8-003

$2.61

15

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

16

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

16

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.67

17

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

18

BOLT, FLANGE (6X32)

95701-06032-07

$1.49

19

BOLT, FLANGE (6X35)

95701-06035-07

$1.80

20

BOLT, FLANGE (6X40)

95701-06040-07

$1.80

21

BOLT, FLANGE (6X80)

95701-06080-07

Unavailable

22

BOLT, FLANGE (6X90) (Honda Code 2533842)

95701-06090-00

$1.92

23

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25
