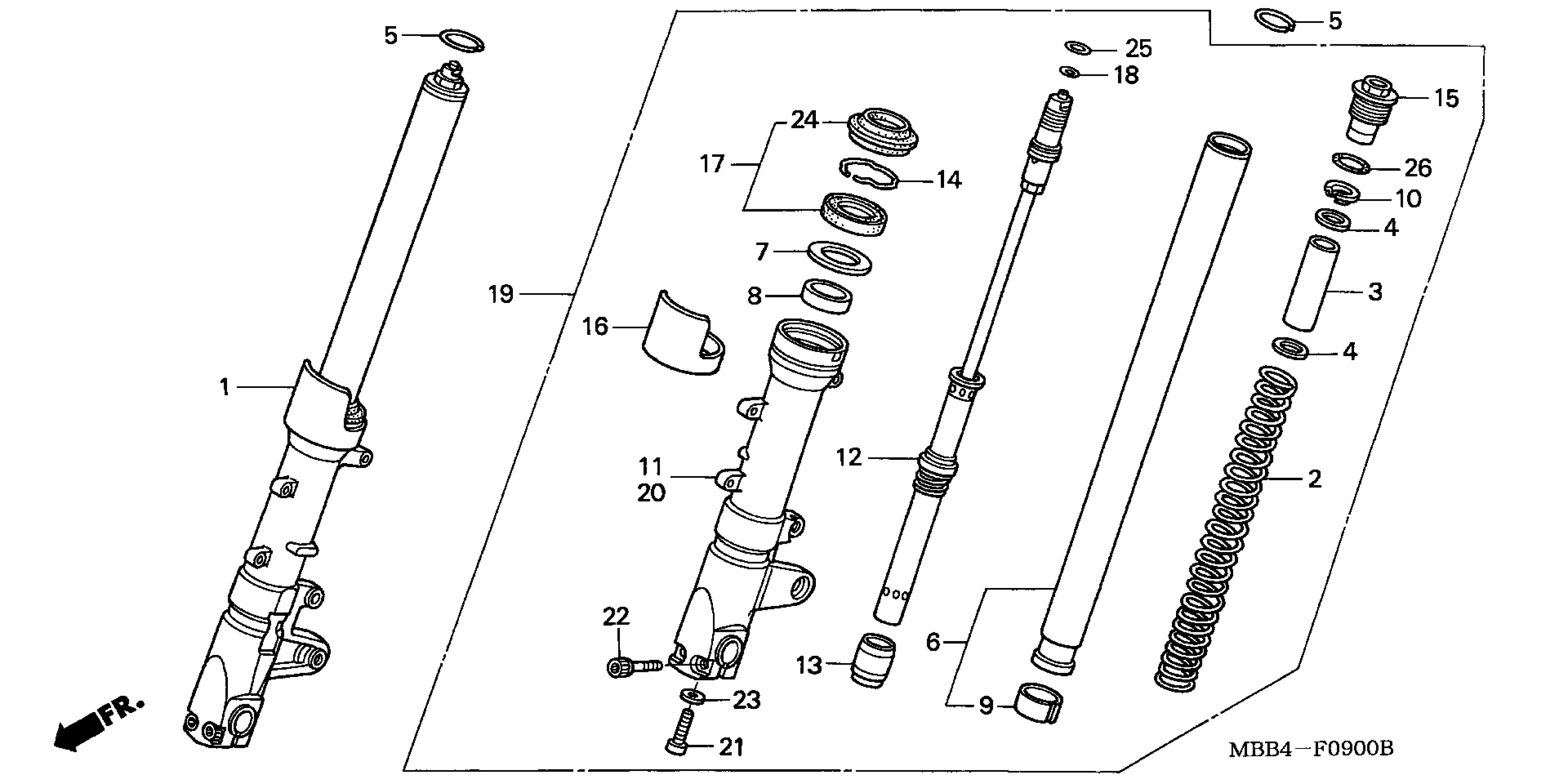

Honda VTR1000FAC (05) MOTORCYCLE, JPN, VIN# JH2SC361-5M700001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-MBB-A21

Unavailable

2

SPRING, FR. FORK

51401-MBB-003

Unavailable

3

COLLAR, SPRING (L. SIDE)

51402-MV8-901

$17.70

4

SEAT, SPRING (SHOWA)

51403-KF0-003

$4.78

5

RING, STOPPER

51405-MB4-003

$6.08

6

PIPE, FR. FORK

51410-MBB-003

Unavailable

7

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

8

BUSH, GUIDE (SHOWA)

51414-KCR-003

$14.02

8

BUSH, GUIDE (SHOWA) This part replaces 51414-MN5-003.

51414-KCR-003

$14.02

9

BUSH, SLIDER (SHOWA)

51415-KCR-003

$12.27

9

BUSH, SLIDER (SHOWA) This part replaces 51415-MM8-003.

51415-KCR-003

$12.27

10

SEAT, SPRING (SHOWA)

51415-MS2-003

$13.07

11

CASE, R. (LOWER)

51420-MBB-A21

Unavailable

12

DAMPER, FR.

51430-MBB-003

Unavailable

13

PIECE, OIL LOCK

51432-MBB-003

$20.42

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

15

BOLT, FR. FORK

51454-KV3-781

$58.72

16

PROTECTOR, FORK PIPE

51460-MT3-611

$11.80

17

SEAL SET, FR. FORK (SHOWA)

51490-MN8-305

$35.20

18

LABEL B

51496-MR7-003

$3.26

19

FORK ASSY., L. FR. (SHOWA)

51500-MBB-A21

Unavailable

20

CASE, L. (LOWER)

51520-MBB-A21

Unavailable

21

BOLT, SOCKET (8X27) BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

22

BOLT, SOCKET (8X35)

90109-MCR-D00

$2.84

22

BOLT, SOCKET (8X35) This part replaces 90150-KAF-000.

90109-MCR-D00

$2.84

23

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

24

DUST SEAL

91254-MM8-003

$17.88

25

O-RING (13.8X2.4) (NOK) This part replaces 91311-MR7-003.

91311-PH7-003

$2.28

25

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.28

26

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76
