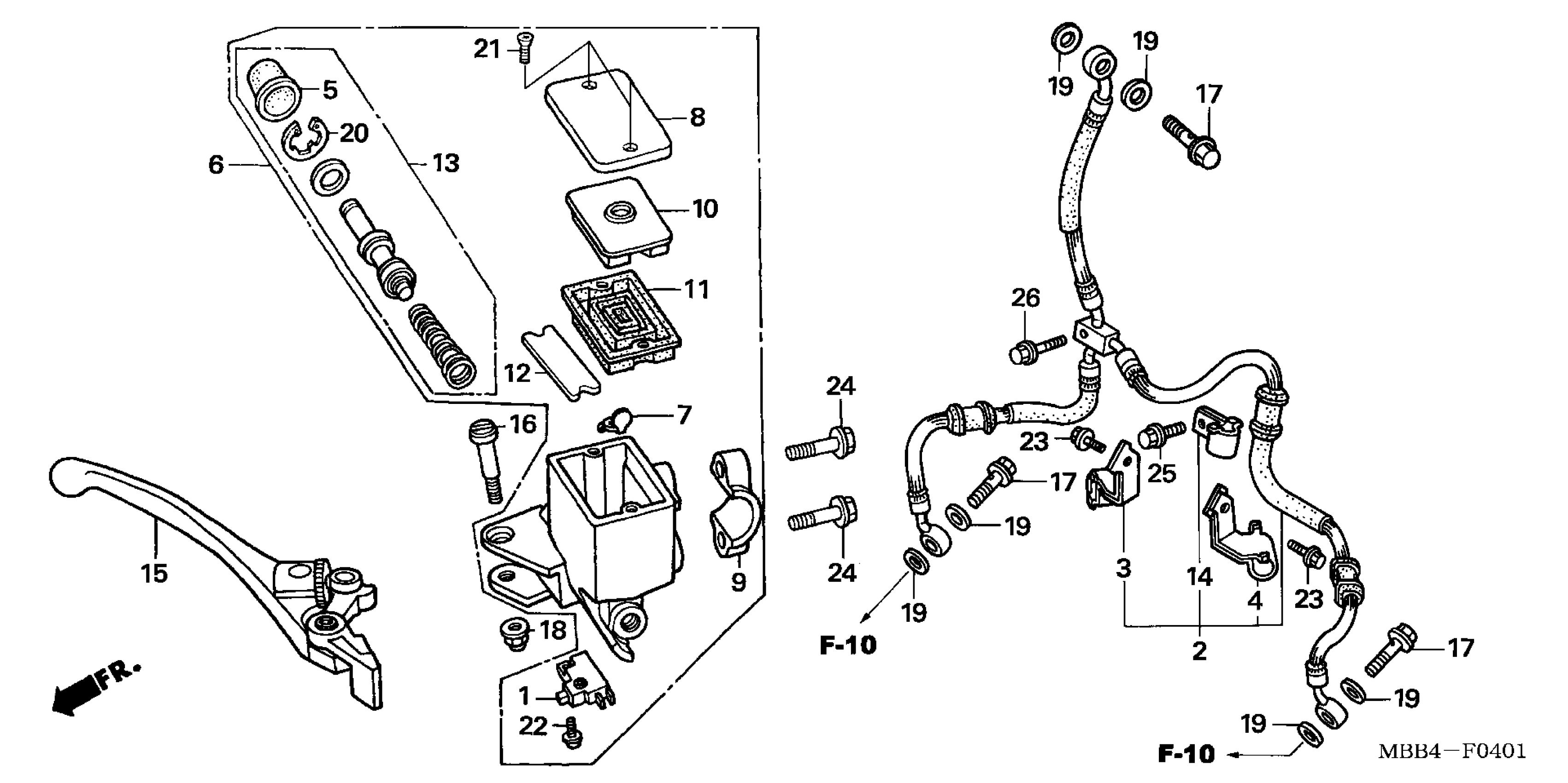

Honda VTR1000FAC (05) MOTORCYCLE, JPN, VIN# JH2SC361-5M700001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

2

HOSE, FR. BRAKE

45125-MBB-B81

$89.21

3

CLAMP, R. FR. BRAKE HOSE

45157-MBB-000

$10.90

4

CLAMP, L. FR. BRAKE HOSE

45158-MBB-000

$14.84

5

BOOT

45504-410-003

$12.16

6

MASTER CYLINDER SUB-ASSY., FR. BRAKE

45510-MBB-B81

$277.67

7

PROTECTOR

45512-MA6-006

$4.28

8

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

9

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

10

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

11

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

12

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.49

13

MASTER CYLINDER SET

45530-MA4-671

$47.76

14

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

15

LEVER ASSY., R. HANDLE

53170-MBW-006

$43.60

16

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

17

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

18

NUT, CAP (6MM)

90201-415-000

$2.05

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

CIRCLIP

90651-MA5-671

$2.66

21

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

21

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

22

SCREW-WASHER (4X12)

93893-04012-07

$1.49

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

23

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

24

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

25

BOLT, FLANGE (6X10) (NOT AVAILABLE)

96300-06010-07

Unavailable

26

BOLT, FLANGE (6X25)

96300-06025-07

$1.90
