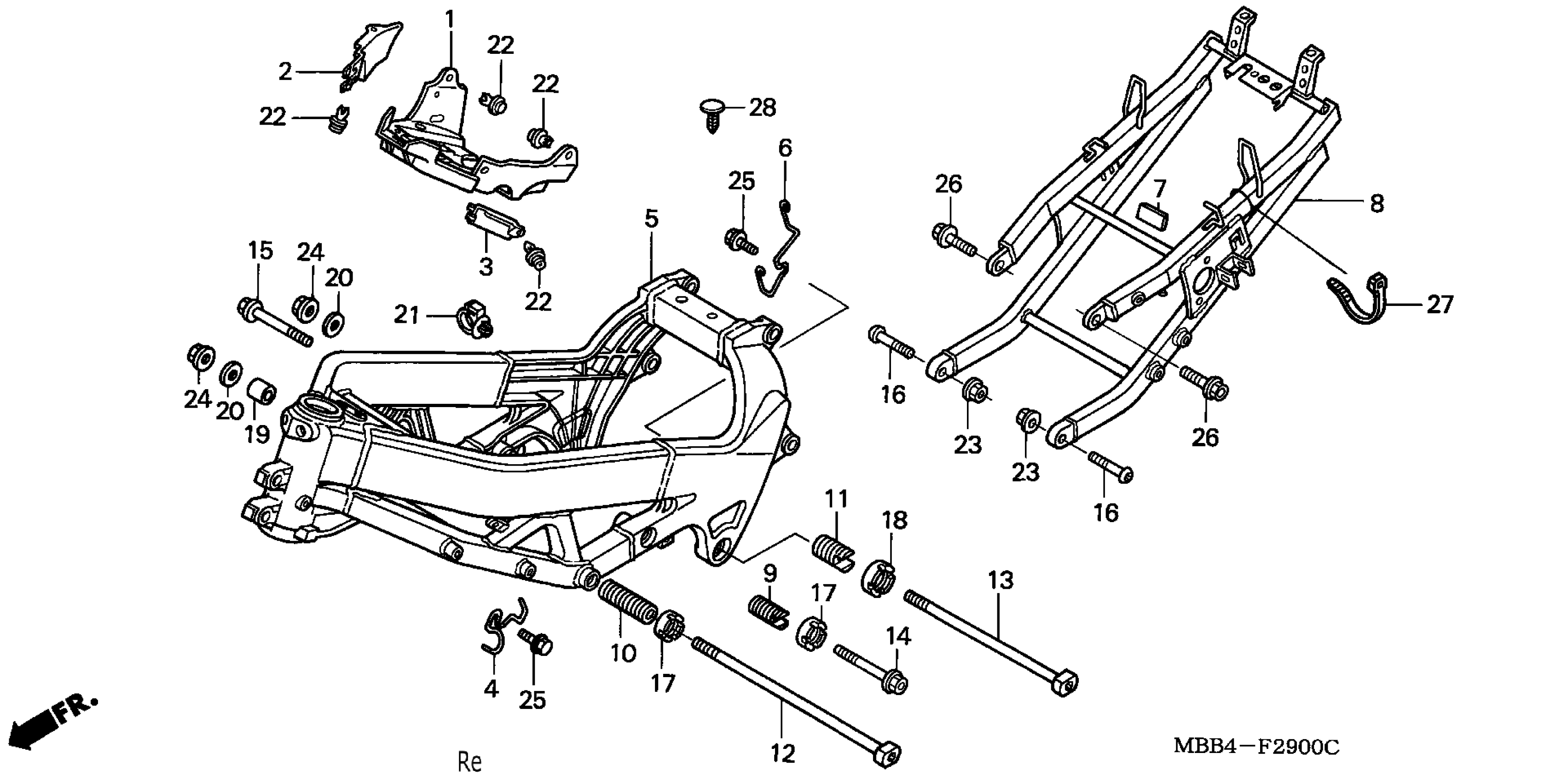

Honda VTR1000FAC (05) MOTORCYCLE, JPN, VIN# JH2SC361-5M700001 FRAME Diagram

#

Description
Price

1

GUARD, HEAT

19125-MBB-010

$68.23

2

COVER, R. HEAT GUARD

19126-MBB-000

Unavailable

3

COVER, L. HEAT GUARD

19127-MBB-000

Unavailable

4

CLAMP, CLUTCH HOSE

22910-MBB-000

$6.79

5

FRAME

50100-MBB-L20

$2,381.02

6

CLAMP, WIRE HARNESS

50140-MBB-D40

$4.25

7

FILM, FRAME PIPE (UPPER) SCREW-WASHER (5X25)

50159-KR3-300

$4.16

8

RAIL, SEAT

50240-MBB-D40

Unavailable

9

BOLT, ADJUSTER (20X61)

90116-MBB-000

$18.92

10

BOLT, ADJUSTER (20X7)

90117-MBB-000

$25.02

11

BOLT, ADJUSTER (22X39)

90119-MBB-000

$18.39

12

BOLT, SPECIAL (12X354)

90126-MBB-000

$39.16

13

BOLT, SPECIAL (12X249)

90127-MBB-000

$35.26

14

BOLT, FLANGE (10X90)

90128-MBB-000

$13.46

15

BOLT, FLANGE (10X75)

90129-MBB-000

Unavailable

16

BOLT, SOCKET (10X42)

90152-MW0-000

$7.56

17

NUT, LOCK (20MM)

90201-MW0-000

$10.87

18

NUT, LOCK (22X2.0)

90310-MR7-000

$26.75

19

COLLAR, ENGINE HANGER

90501-MBB-000

$3.84

20

WASHER (13X24)

90533-VM6-000

Unavailable

21

CLAMP, HARNESS

90652-HC4-003

$5.95

22

CLIP, BODY

90683-MBW-003

$2.16

23

NUT, FLANGE (10MM)

94050-10000

$1.59

24

NUT, FLANGE (12MM)

94050-12000

$1.49

25

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

26

BOLT, FLANGE (10X22)

95701-10022-00

$1.77

27

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

28

CLIP (Honda Code 3488079)

90651-MT3-000

$2.87
