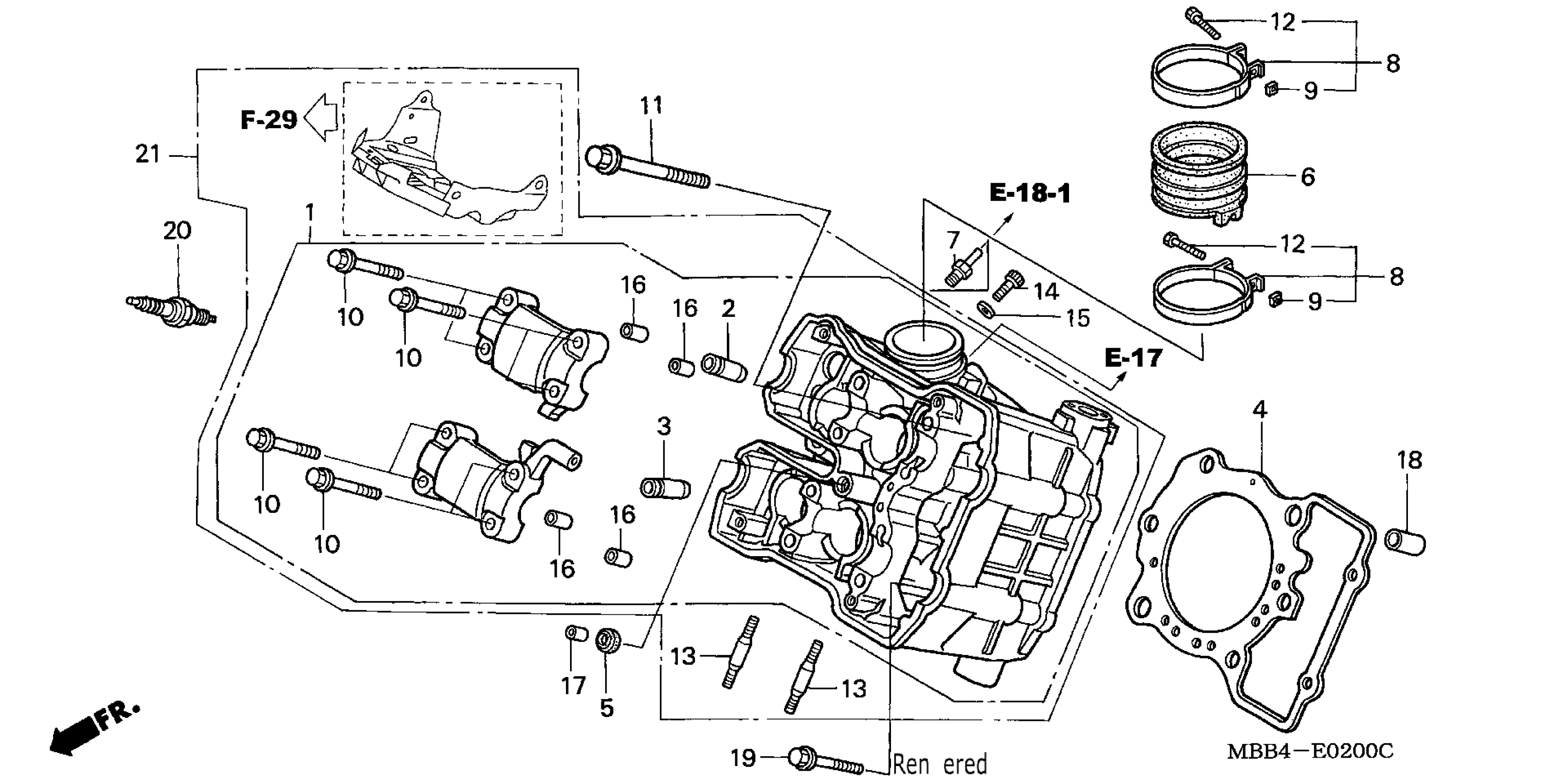

Honda VTR1000FAC (05) MOTORCYCLE, JPN, VIN# JH2SC361-5M700001 CYLINDER HEAD (FR.) Diagram

CYLINDER HEAD ASSY., FR. (AI)

12010-MBB-632

Unavailable

GUIDE, VALVE (OVER SIZE)

12204-MBB-305

$20.51

GUIDE, EX. VALVE (OVER SIZE)

12205-MBB-305

$21.44

GASKET, CYLINDER HEAD

12251-MBB-003

$53.16

GASKET B, CYLINDER HEAD COVER

12395-MAT-750

$4.03

INSULATOR, FR. CARBURETOR

16210-MBB-950

$34.64

JOINT, BOOSTER

16214-MB0-000

$4.76

BAND, INSULATOR

16219-MBB-000

$11.89

NUT, SQUARE (5MM) (GQ51B C)

16222-MV4-300

$2.15

BOLT, FLANGE (7X45)

90002-MBB-000

$4.08

BOLT, FLANGE (10X97)

90004-MBB-000

$6.23

BOLT, RECESSED (5X28) (GQ51B C)

90023-MM5-000

$2.92

BOLT, STUD (8X24)

90035-MM5-000

$5.12

WASHER, SEALING (5MM)

90452-323-000

$1.59

PIN, DOWEL (9X14)

90701-MR7-000

$4.30

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28

PIN A, DOWEL (12X20)

94301-12200

$2.29

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

SPARK PLUG (DPR9EVX-9) (NGK)

98069-5991F

$9.66
